Product Description

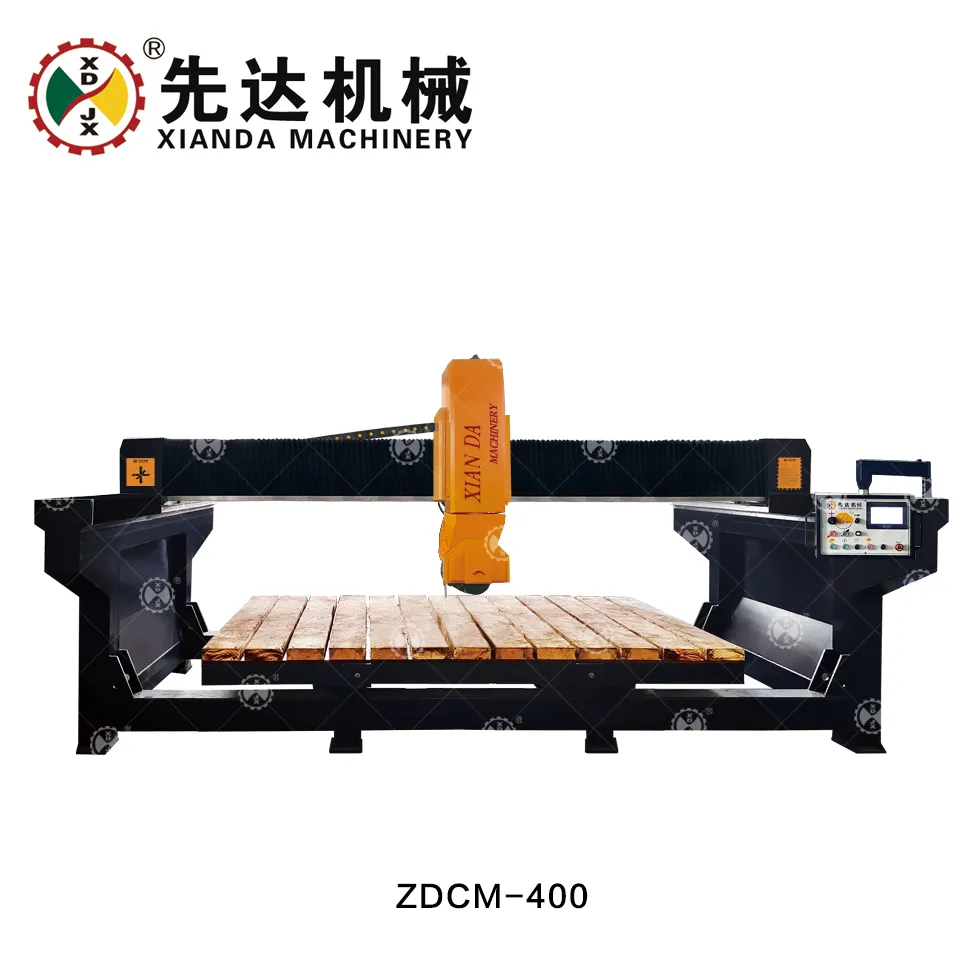

ZDCM-400
Monoblock bridge cutting machine(special for Marble and sintered stone)
This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.
Technical Parameter
|
Parameter
|
Unit
|
ZDCM-400
|
|
Blade diameter
|
mm
|
φ300-400 |
|
Max processing size
|
mm
|
3200*2000*80
|
|
Dimension of worktable
|
mm
|
3200*2000
|
|
Worktable tilting degree
|
°
|
0-85°
|
|
Worktable rotation degree
|
°
|
0-90°,0-360°
|
|
Main motor
|
kw
|
15
|
|
Water consumption
|
m³/h
|
3 |
|
Outline dimension
|
mm
|
5000*3100*2600
|
|
Gross weight
|
kg
|
5500
|
Xianda Machinery

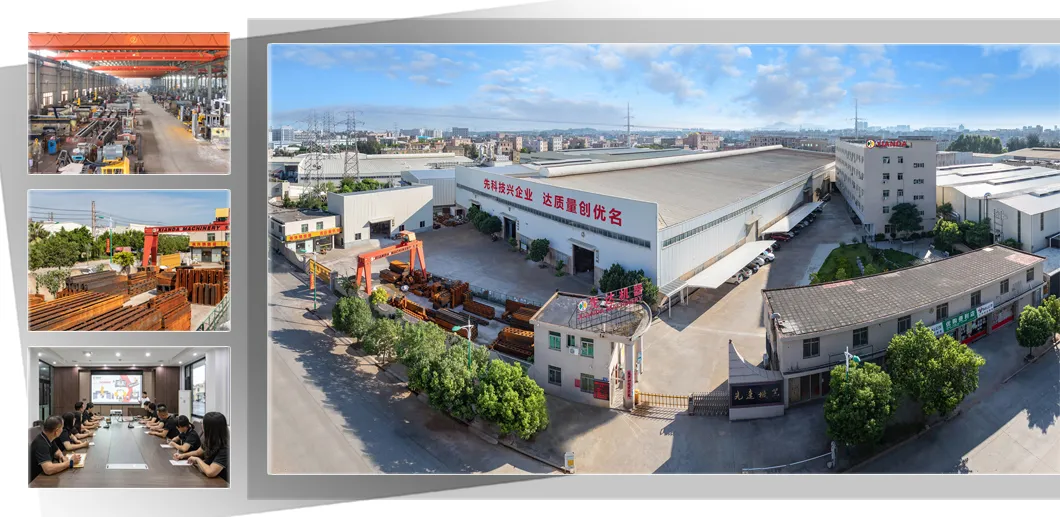

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
