Product Description

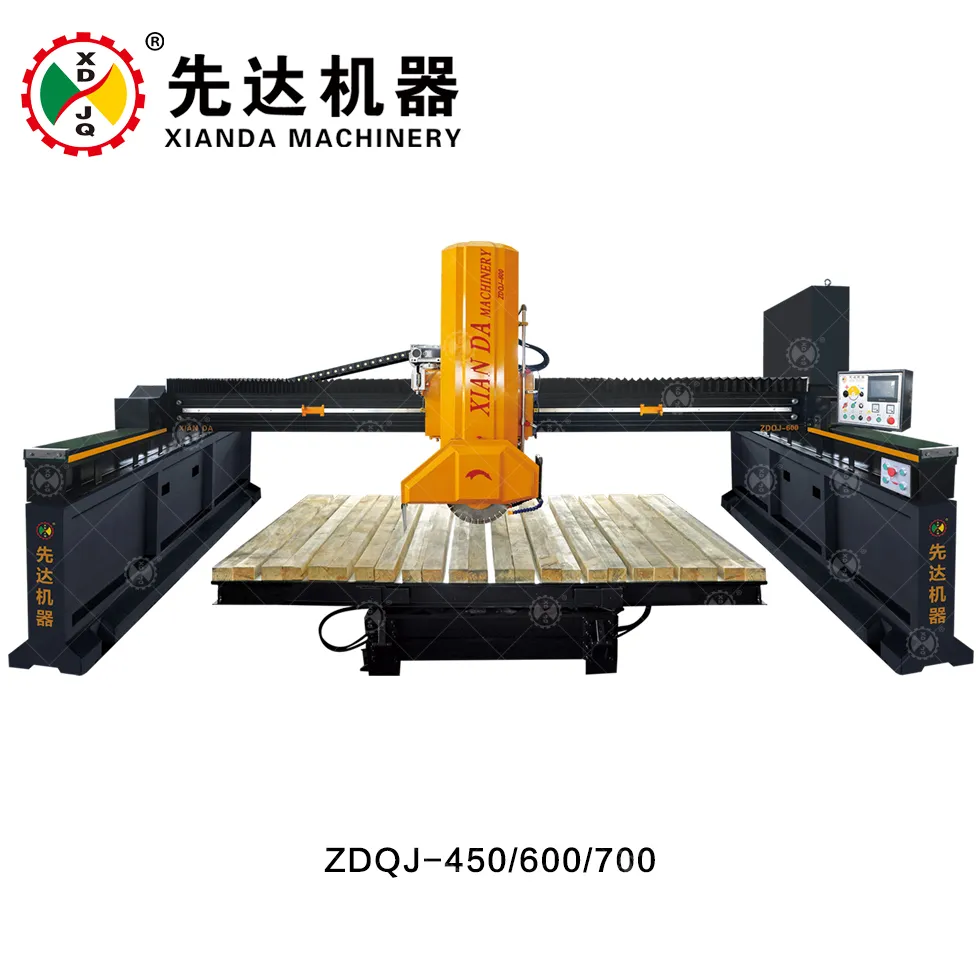

ZDQJ-450 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

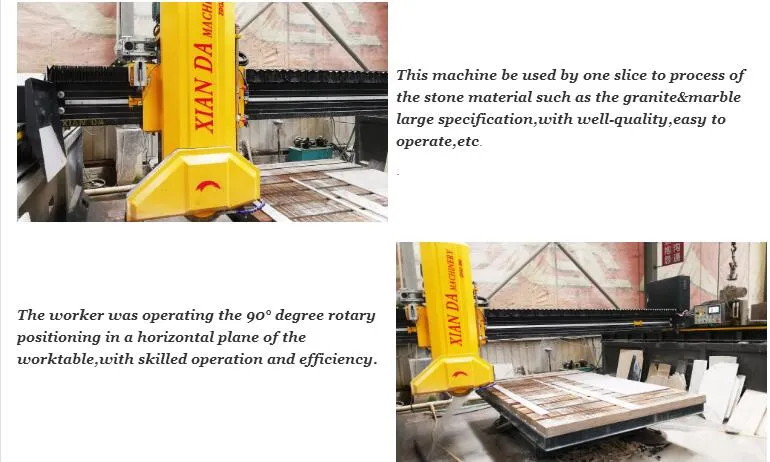

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
Technical Parameter
| Parameter | Unit | ZDQJ-450 | ZDQJ-600 | ZDQJ-700 |
| Blade diameter | mm | 300-450 | 350-600 | 350-700 |
| Max processing size | mm | 3200*2000*120 | 3200*2000*180 | 3200*2000*230 |
| Dimension of worktable | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Worktable tilting degree | ° | 0-85° | 0-85° | 0-85° |
| Worktable rotation degree | ° | 0-90°/0-360° | 0-90°/0-360° | 0-90°/0-360° |
| Main motor | kw | 15 | 18.5 | 18.5 |
| Gross motor | kw | 21 | 24 | 24 |
| Water consumption | m³/h | 4 | 4 | 4 |
| Outline dimension | mm | 6000*4800*2900 | 6000*4800*3100 | 6000*4800*3200 |
| Gross weight | kg | 5250 | 5500 | 5750 |
Xianda machinery

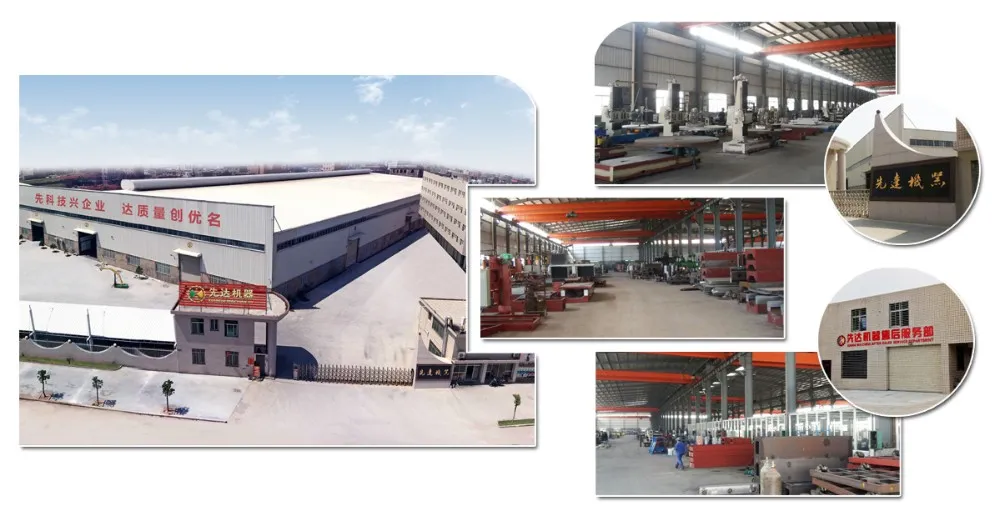

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
