الوصف

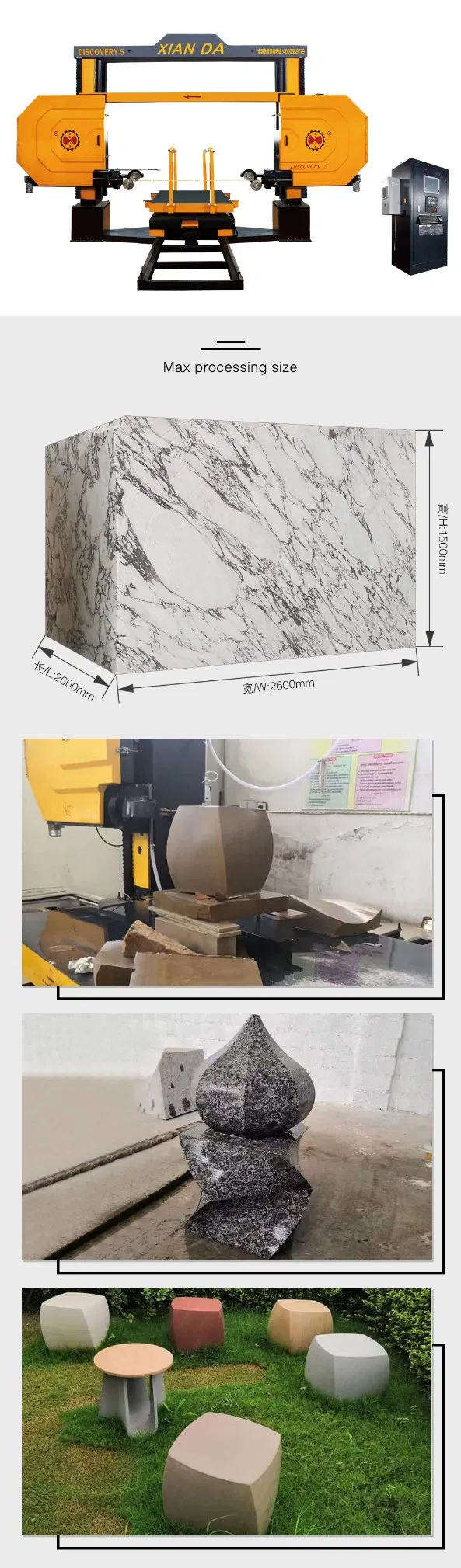

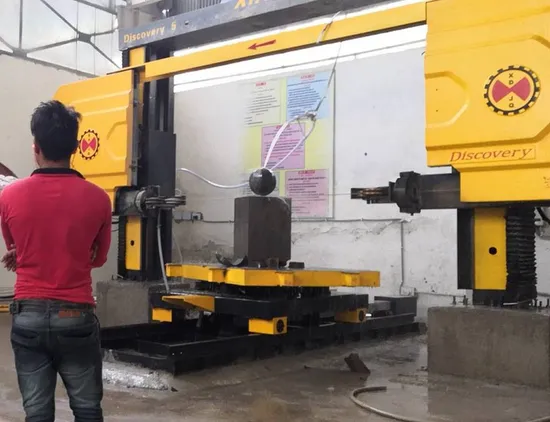

Discvoery 5 adopts 5 axis CNC control system, it can process different size arc slabs, column , roman column,number, letter , chinese words also diffrere nt shapes of marble or granite.
and It can also process
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm and memory function if wire broken, on top of it.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

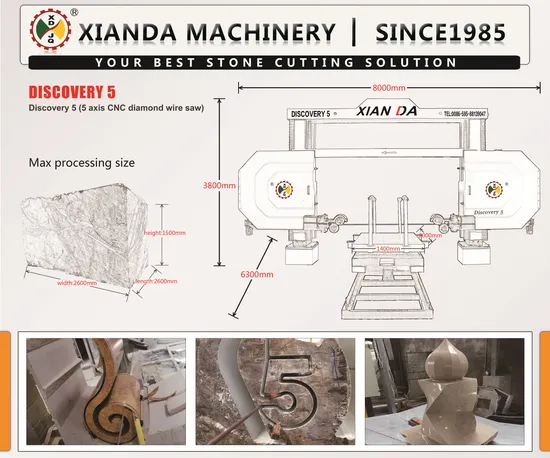

| ITEM NO. | Discovery 5 |
| Max processing size | 2600x2600x1500mm |
| Dimension of worktable | 2000x1400mm |
| Main Motor | 11kw |
| Water consuption | 4m³/h |
| Outline dimension | 8000X6300X3800mm |
| Gross weight | 7000kgs |

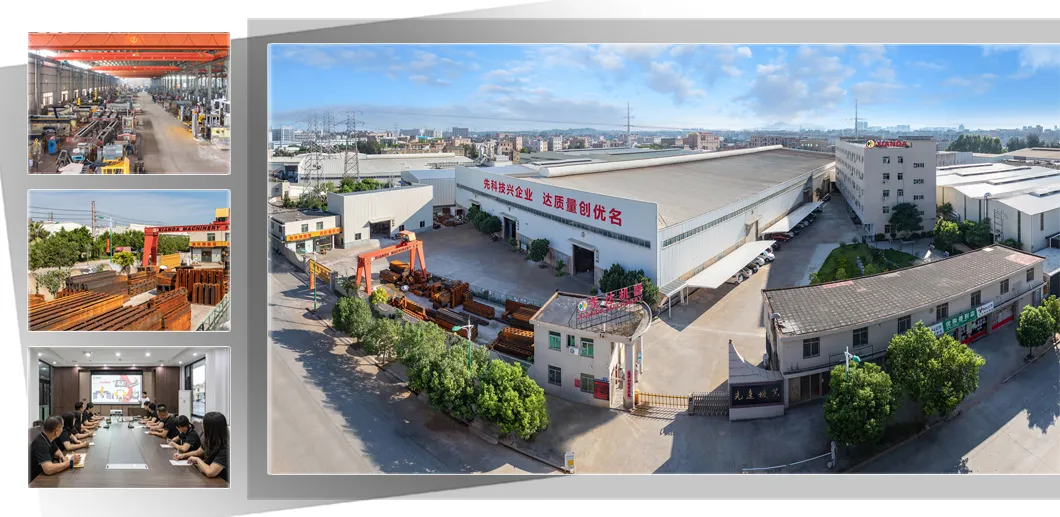

Factory Overviews
