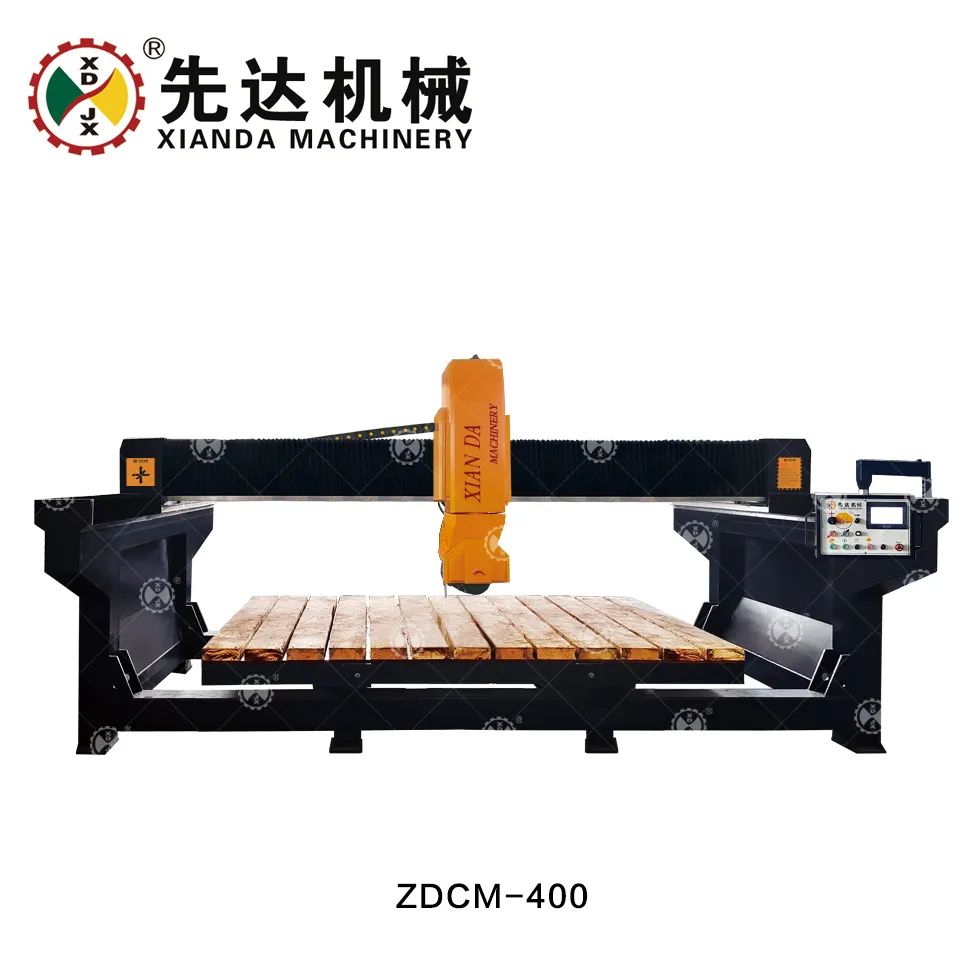

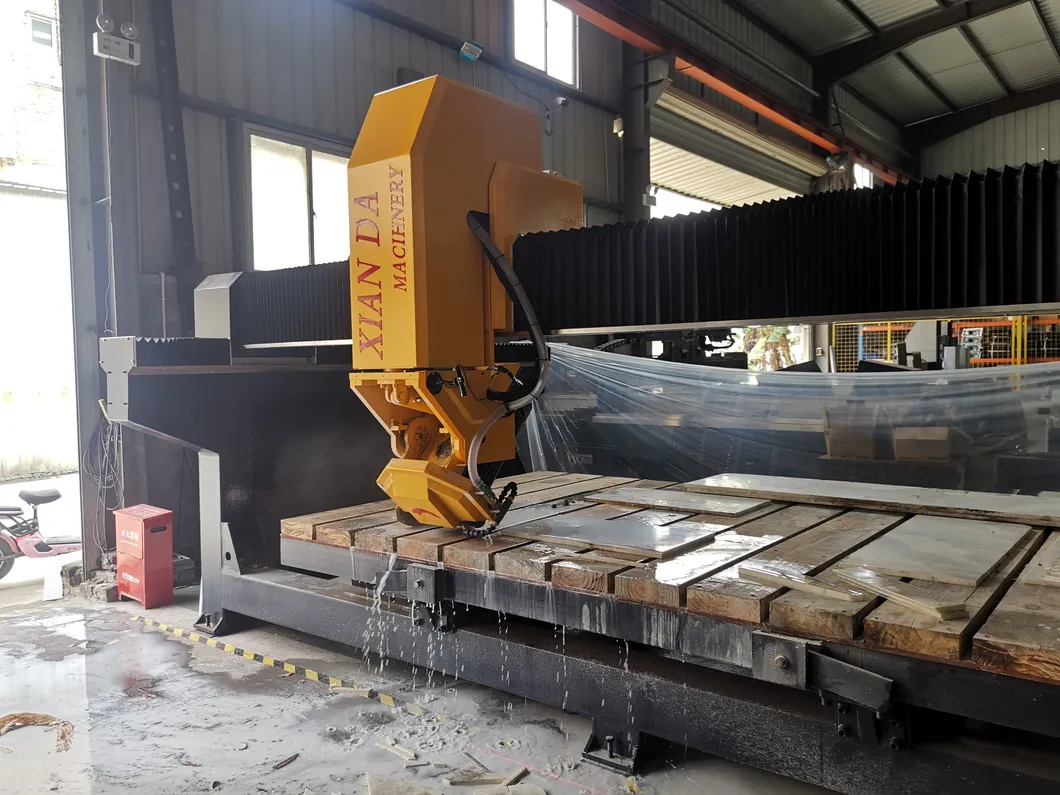

Xianda Machinery CNC Monoblock bridge cutting machine
Product Description
Fujian Xianda ZDCM-400 , adopts Microcomputer system , easy to operate ; Intergrate structure , easy to install , The frame of the machine body is processed and formed by CNC gantry milling center at one time,using high-precision linear guide sliders,grinding-grade ball screws , and high-end servo systems.It greatly improves the stability , processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large-scale plate processing with high presicion requirements and high value.
Technical Parameter
| Parameter | Unit | ZDCM-400-C |
| Control system type | mm | CNC |
| Blade diameter | mm | 300-400 |
| Worktable size | mm | 3200*2000 |
| Max processing size | mm | 3200*2000*80 |
| Worktable tilting degree | ° | 0-85 |
| Cutting head rotation degree | ° | 0-360 |
| Cutting head chamfer rotating degree | ° | 0-45 |
| Main motor power | kw | 15 |
| Outline dimension | mm | 5000*3100*2600 |
| Water consumption | m3/h | 3 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
