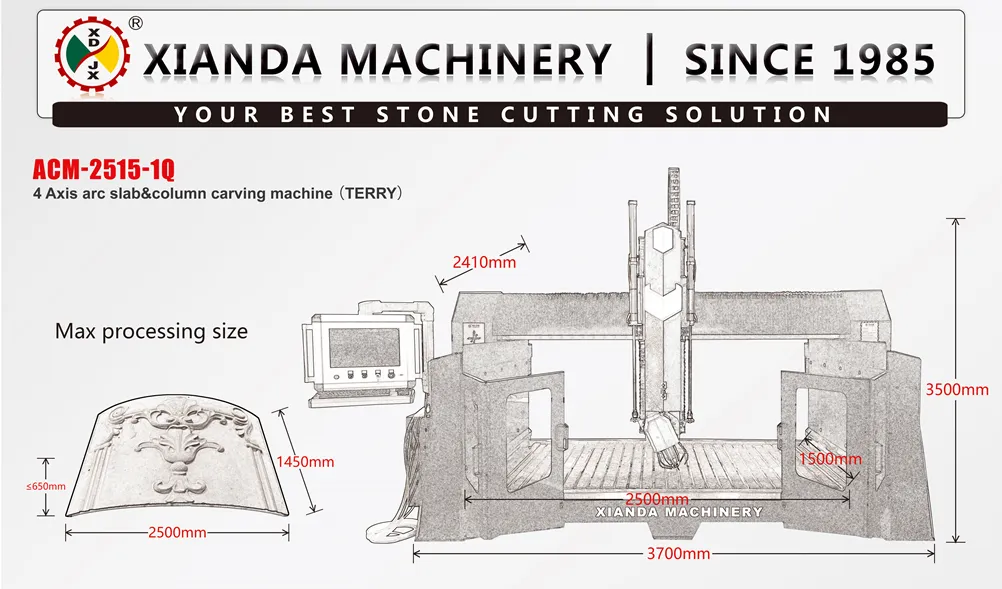

4 Axis Arc Slab&Column Carving Machine (TERRY) ACM-2515-1Q
This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.
This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.
Technical Parameter
| Parameter | Unit | ACM-2515-1Q | ACM-3015-3Q |
| Spindle Type | / | 1Tilting head | 2 Tilting head |
| Dimension of Worktable | mm | 2500*1500 | 3000*1500 |
| Feed Height | mm | ≤650 | ≤650 |
| Air Speed | m/min | 13 | 12 |
| Number of Spindles | pcs | 1pc | 2pcs |
| Spindle Power | kw | 7.5 | 7.5×2 |
| Outline Dimension | mm | 3700*2410*3500 | 4200*2410*3500 |
| Water Consumption | m³/h | 1 | 2 |
