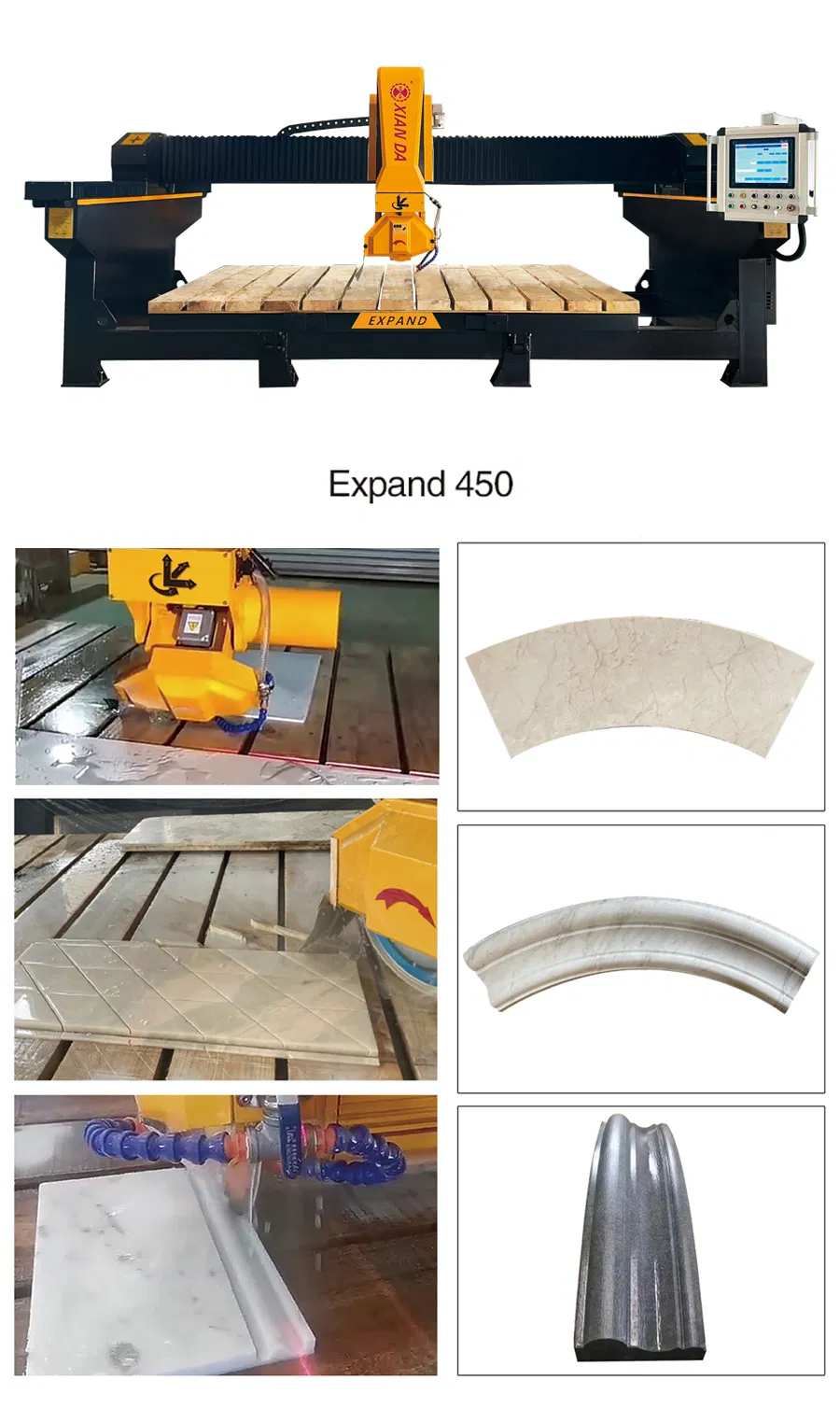

4 Axis Axes CNC Bridge Saw Cutter Machine for Cutting Milling Drilling Processing Stone Granite Marble Quartz Kitchen Countertop Slab Tile Sink Cutout W/ Router
This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install; the frame of the machine body is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high-end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large-scale plate processing with high precision requirements and high value.
Technical Parameter
|
Parameter
|
Unit
|
EXPAND 450
|
ZDCM-400-B | ZDCM-400-C |
| Control System Type | / | 4 Axis CNC | PLC | CNC |
|
Blade Diameter
|
mm | φ350-φ450 | φ300-φ400 | φ300-φ400 |
| Worktable Size | mm | 3200*2000 | 3200*2000 | 3200*2000 |
|
Max Processing Size
|
mm |
3200*2000*100
|
3200*2000*80 | 3200*2000*80 |
|
Worktable Tilting Angle
|
°
|
0°-85° | 0°-85° | 0°-85° |
| Cutting Head Rotation Degree |
°
|
0°-360° | 0°-360° | 0°-360° |
| Cutting Head Chamfer Rotating Degree | ° | 0°-45° | 0°-45° | 0°-45° |
|
Main Motor Power
|
kw |
15
|
15 | 15 |
|
Water Consumption
|
m³/h |
3
|
3 | 3 |
|
Outline Dimension
|
mm | 5000*3100*2700 | 5300*3100*2600 | 5300*3100*2600 |
