الوصف

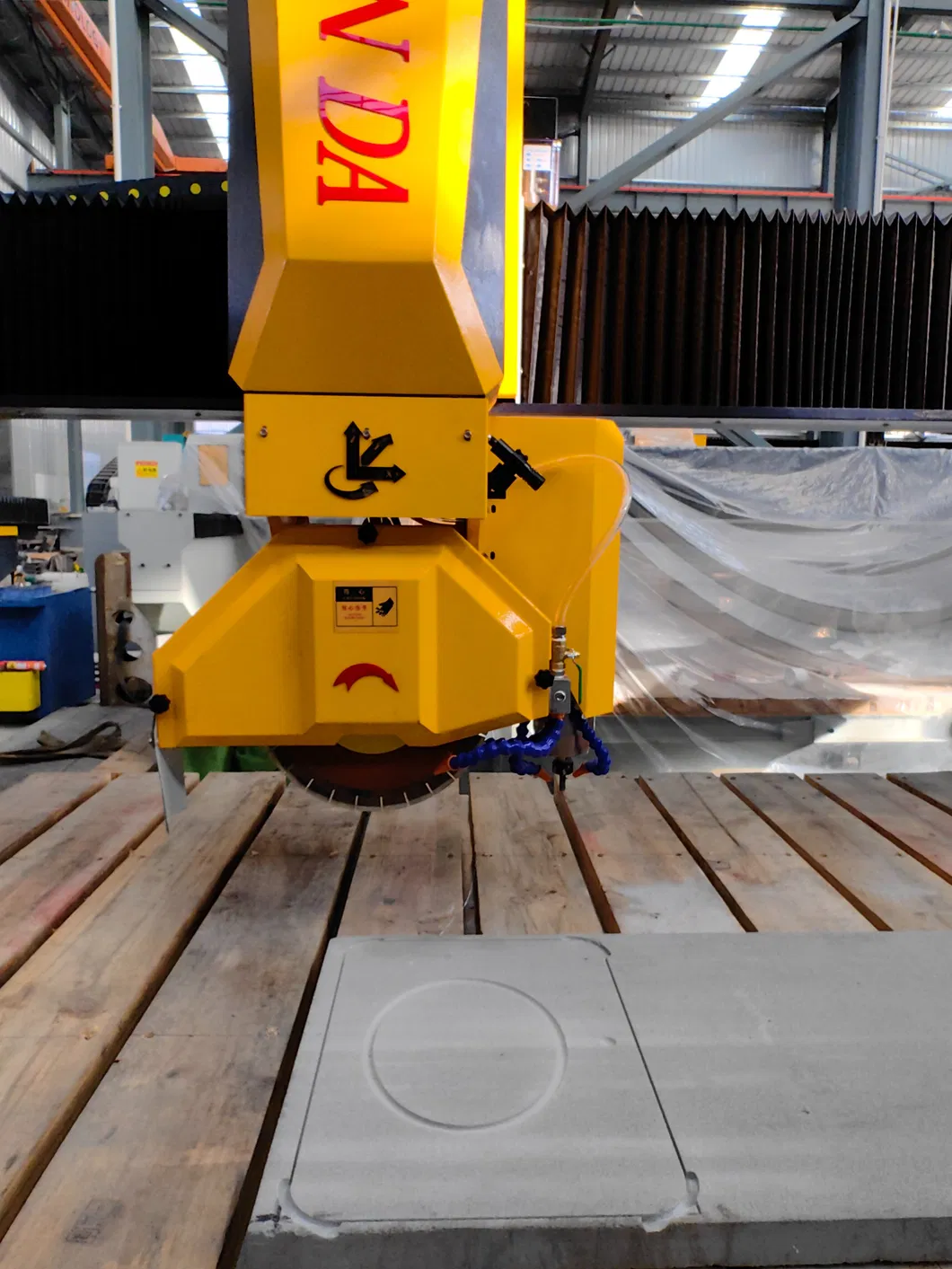

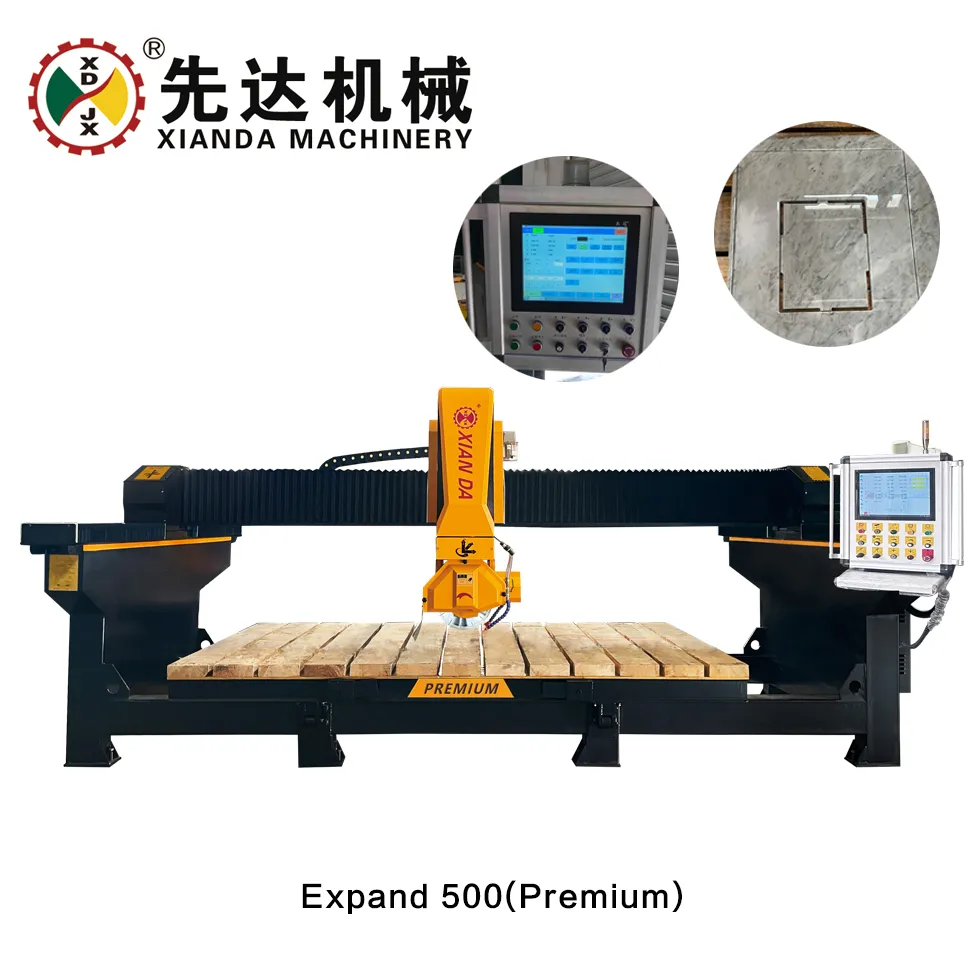

4 Axis CNC Stone Machinery Engraving Router Bridge Saw Cutting Machine Laser Tile Cutter for Countertop Sink
This machine adopts Microcomputer system, easy to operate;Integrated structure, easy to install;The frame of the machine body is processed and formed by CNC gantry miling center at one time, using high-precision linear guide sliders, grinding-grade ball screws.It greatly improves the stability, processing accuracy and production efficiency of the equipment.It is suitable for all kinds of large-scale plate processing with high precision requirements and high value.
Product Parameters
| Parameter | Unit | EXPAND 450 | EXPAND 450(4+1) |
| Blade diameter | mm | Φ350-Φ450 | Φ300-Φ400 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*100 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| Cutting head rotation degree | ° | 0-360° | 0-360° |
| Main motor | kw | 15 | 18.5 |
| Gross motor | kw | 21 | 24 |
| Water consumption | m³/h | 4 | 4 |
| Outline dimension | mm | 5000*3100*2700 | 5000*3100*2700 |
| Gross weight | kg | 5250 | 5500 |
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
