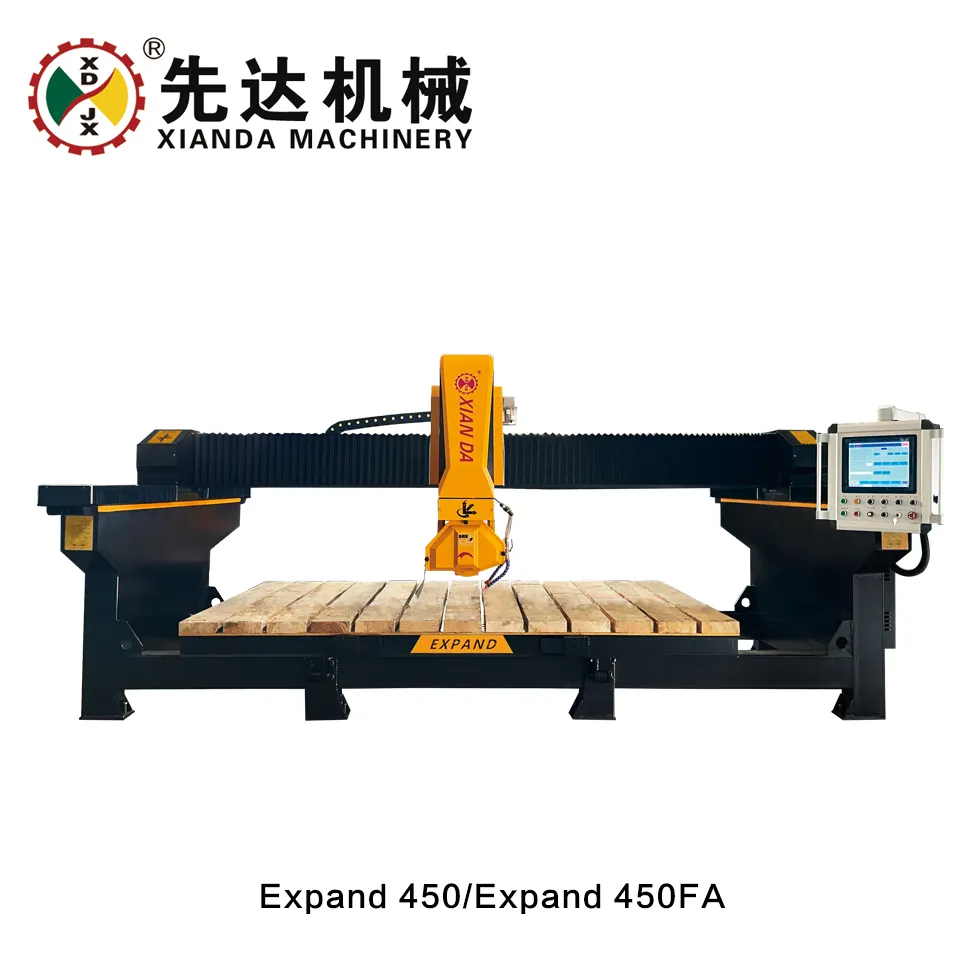

Expand 450/450FA 4 Axis Bridge Cutting Machine
Product Parameters
4 Axis bridge cutting machine adopts four-axis linkage CNC system control, bus absolutevalue servo (with power-off memory function), high-precision linear guide, ball screw drive, oil-immersed track structure, with multi-function, high precision and strong stability and other advantages.
| Parameter | Unit | Expand 450 | Expand 450FA |

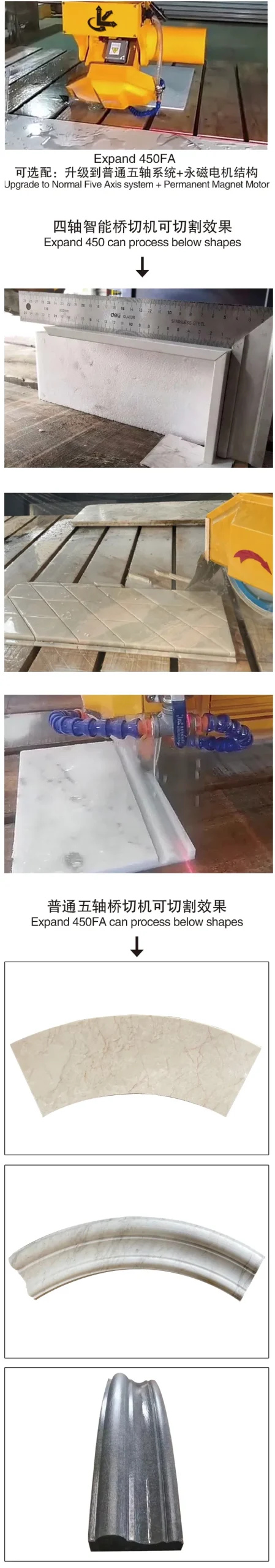

| Control system type | / | 4 axis system | normal 5 axis system |
| worktable size | mm | 3200*2000 | 3200*2000 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*100 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| cutting head rotation degree | ° | 0-360° | 0-360° |
| cutting head rotation control mode | / | Servo motor control | Servo motor control |
| cutting head chamfer rotating degree | ° | 0-45° Hydraulic control | 0-90° Servo control |
| Main motor | kw | 15 | 18.5 permanent magnet motor |
| Water consumption | m³/h | 3 | 3 |
| Outline dimension | mm | 5000*3100*2700 | 5000*3100*2700 |

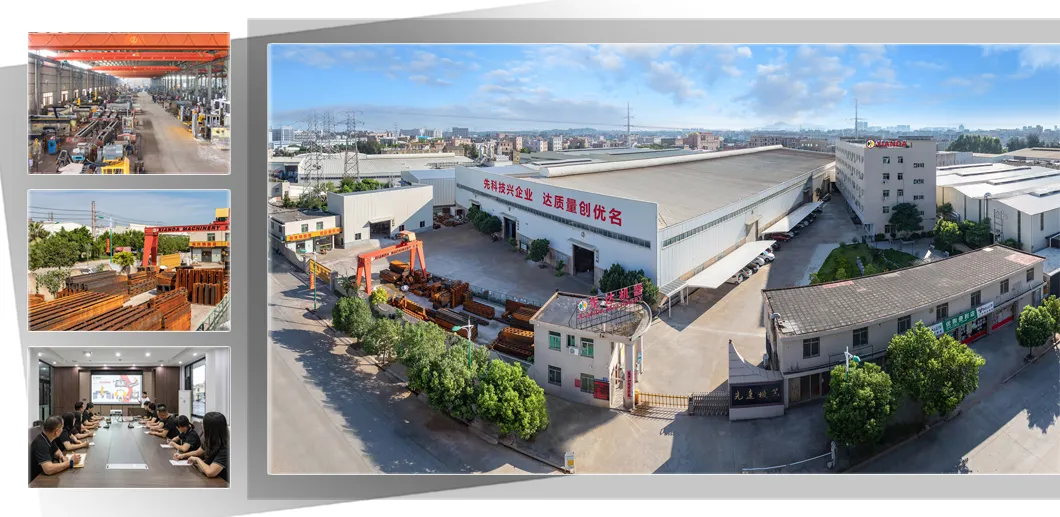

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality“as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
