5 Axis Bridge Cutting Machine,5axis Linkage CNC System,CAD,3dmodeling.Suitable for Granite, Marble, Microcrystalline Stone, Rock Slab, Glass Cutting and Proces

2024 New 5 Axis Bridge Saw CNC Stone Router Machine Xianda CE CNC Engraving Machines for Stone Marble Cutting Machine

Product Description

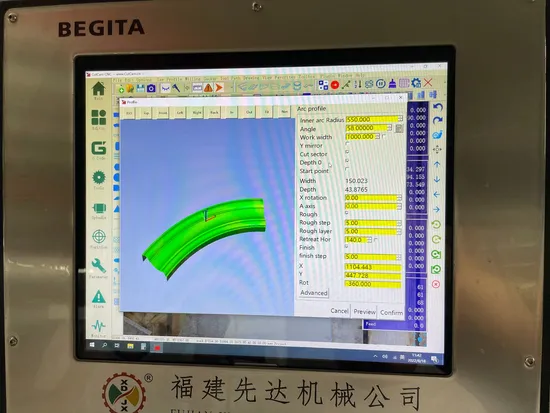

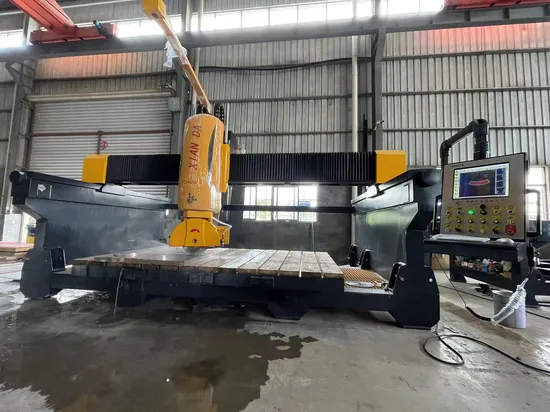

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.Built-in CUT Cam, CAD-Cam drawing software (the system has built-in powerful CAM software, which basically includes the processing shapes and processes commonly used on the market. The plane includes circles, ellipses, rectangles, arbitrary straight lines, arcs, polygons, horse belly edges, and platforms).
Drawing software, basin holes, etc., and supports cad typesetting import, excel data import; the 3D part includes linear profiling, arc profiling, ladder
Shape profiling, wave profiling, arc wave profiling, Roman groove profiling and other processing techniques; subsequent development and upgrading of the process can be remotely upgraded for free for customers to use)
Intelligent operation of all positions, easy to load and unload materials.Set the cutting shape, start with one key, the entire processing process is automatically completed, and the head is automatically docked to the installation after the processing is completed.
X-axis transmission method The X-axis adopts high-precision helical rack and gear transmission
Y-axis transmission method, double Y structure, using high-precision ball screw + nut transmission
Z-axis transmission method The Z-axis adopts high-precision ball screw + nut transmission
The cutting and processing of the spindle speed has an adjustable speed range of 0-6000 rpm, which is suitable for granite, marble, microcrystalline stone, rock slab, glass and other materials. The electric spindle combined with the saw blade realizes the combined processing of various processes.0-6000 rpm permanent magnet motor, external interface can be connected to milling cutters, engraving cutters, hole cutters and other diamond tools, equipped with
The beam structure adopts casting structure, aging, sandblasting treatment, and finishing by gantry machining center, with high accuracy and strong stability.
The lifting structure of the nose has strong stability.It adopts the integral structure of cast iron, aging and sandblasting treatment, and the overall finishing of CNC machining centers, with high precision and high strength.
The rotating structure of the nose adopts the direct connection structure of a large high-precision reducer, which has high strength, small rotation gap and high accuracy.
The frame structure is finished with a gantry machining center, with high accuracy and strong stability.The overall use of gantry steel structure welding, heat treatment and tempering process, sandblasting and anti-rust treatment, solid and stable structure, and the use of

Hikvision high-definition industrial cameras are installed above the nose to collect the size of the plate and locate it. Compared with traditional industrial cameras, Hikvision high-definition industrial cameras are installed above the nose to collect the size of the plate and locate it.
The vision system is equipped with a camera, which is clearer and more accurate in positioning; there is no need to fill the camera with additional light for night work, and the texture of the plate is clear at a glance.
In addition, with the powerful internal typesetting software, the typesetting can be completed more accurately and efficiently, greatly improving the cutting efficiency.
Compensation for the knife device, one-key measurement, accurate and simple operation.Automatically measure the diameter of the blade, and after the tool is used for a period of time, the amount of tool wear can be measured and accurately measured.
External equipment is connected to the production line for cutting and processing, the processing task is completed, and instructions are transmitted to the production line to perform the next action.The external port of this machine is open and can be applied to the connection of the automated production line. According to the instructions sent by the automated production line, it can be applied to the connection of the automated production line.
Hydraulic workstation 7OCEAN Qiyang solenoid valve, gear pump, planetary gear series special oil pump motor
Linear guide brand Taiwan AHK linear guide
Ball screw brand Taiwan TBI ball screw
Reducer brand Zhonglide high-precision planetary reducer
Drive and motor brand X/Y/Z/A/C axis adopts Flextronics servo motor and drive (domestic servo leading enterprise, listed company)
Servo control type magnetic brushless servo motor, Z-axis with brake, provides safe and reliable control power for X, Y, Z, A, and C-axis.It adopts bus and servo drive, has strong anti-interference ability, fast response speed, and has a power-off memory function.
Main motor inverter Flextronics 30KW inverter drive (domestic servo leading enterprise, listed company)
Electrical accessories brand Schneider circuit breaker, Schneider contactor, Omron relay, Siemens button, Taiwan Yangming induction switch
The lubrication method is automatic oil injection, timed oil injection, and the linear guide rail and slider adopt an oil-immersed structure, which has a longer life and longer-lasting accuracy.
Type of electric control box, the electric control box adopts side suspension, which saves space, has good heat dissipation from multiple fans, and has strong anti-interference ability.

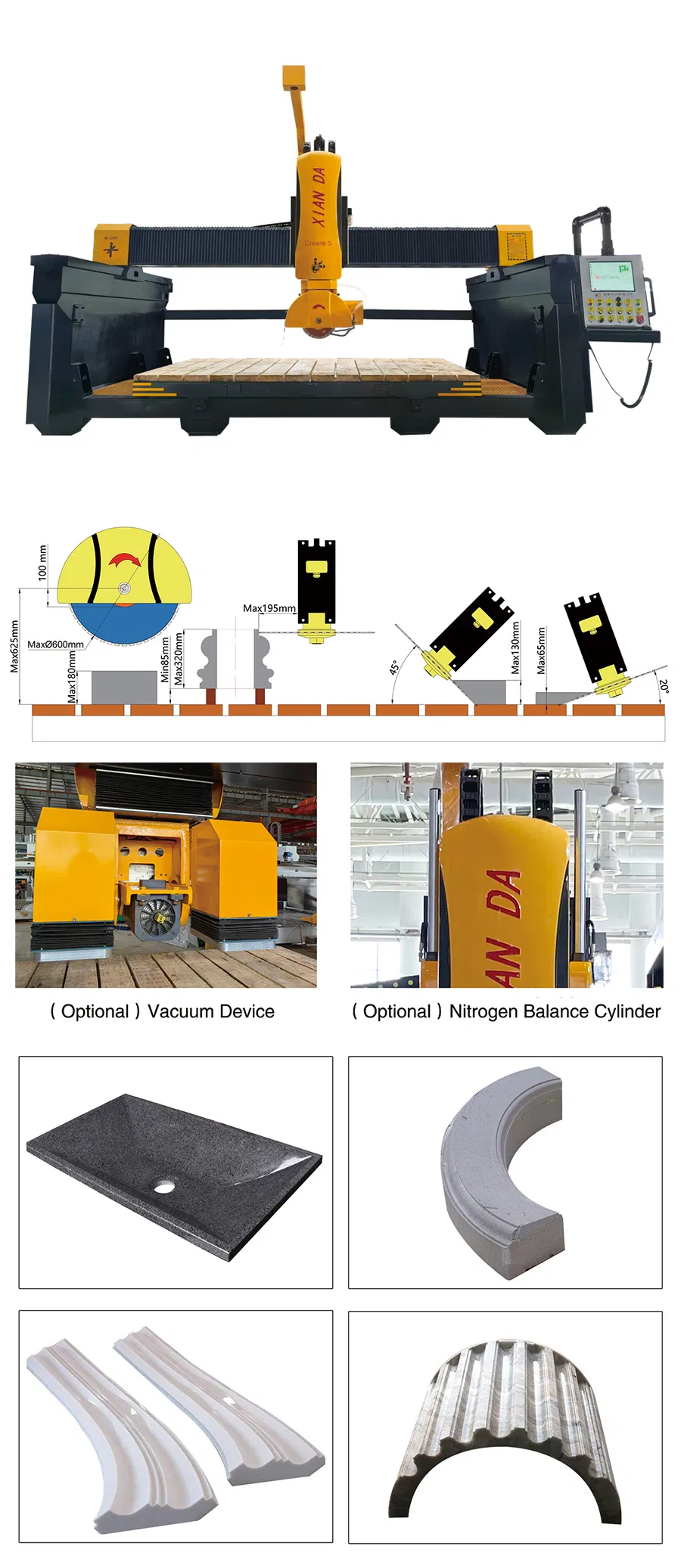

(Optional) The vacuum suction cup does not require manual on-site continuous movement of the plate, thereby increasing safety and saving labor costs. Problem; Through computer calculation, the suction cup will automatically move the plate, reduce unnecessary waste, improve the utilization rate of the plate, and vacuum the suction cup to move the slab; the suction cup is mainly used to automatically handle the problem of over-cutting materials caused by moving the saw blade during processing.
Nitrogen balance cylinder
(Optional) Can balance the weight of the nose, reduce the load on the lifting transmission components, and improve the stability and service life of the transmission components.
(Optional) The front sliding door can improve safety, and the operator can selectively open and close the sliding door according to the cutting situation on site.
(Optional) Side beams of pig iron castings Side beams of pig iron castings have small deformation, high accuracy and strong stability compared to side beams of steel parts.

Technical Parameter

Xianda machinery

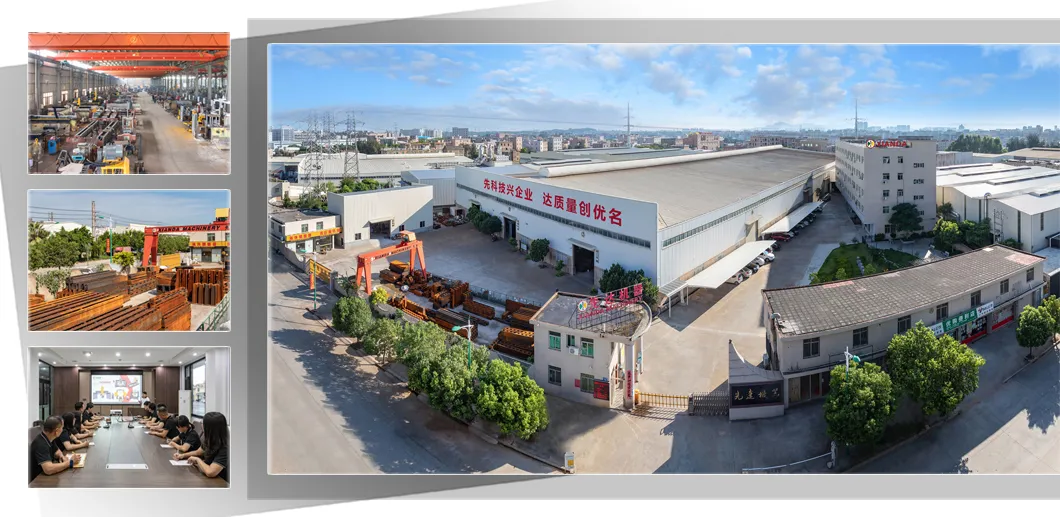

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.

With more than 38 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.

Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.

“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.

Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
