Description:

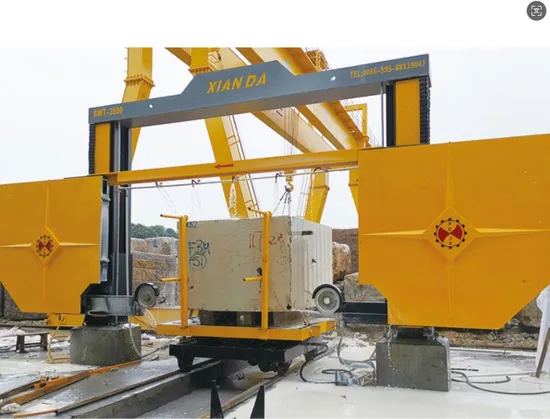

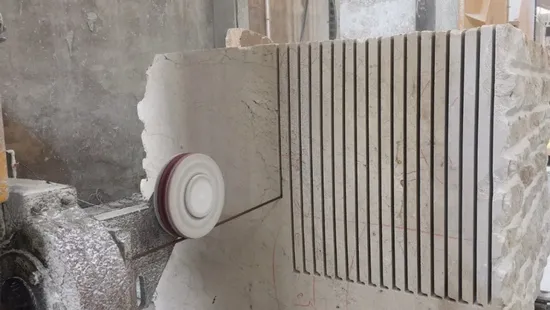

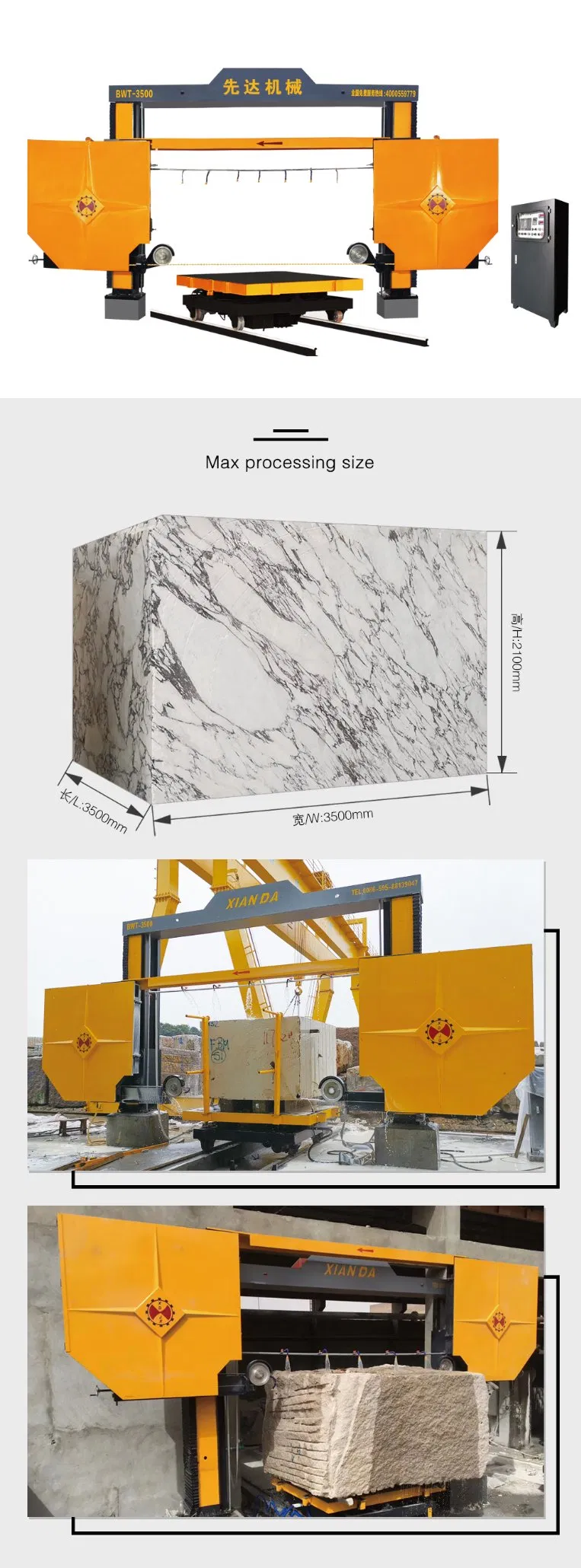

DIAMOND WIRE SAW BLOCK TRIMMING MACHINE XIANDA BWT-3500 adopts computer digital control, four-spindle linkage with stable cutting, used to frimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Keywords: diamond wire saw machine, block cutting machine, stone trimming machine
Technical Parameter
| Parameter | Unit | BWT-3500-21A | CNC-3500 |
| Max Processing Size (L×W×H) | mm | 3500×3500×2100 | 3500×3500×2100 |
| Dimension of Worktable (L×W) | mm | 2500×2000 | 2500×2000 |
| Main Motor | kw | 15 | 15 |
| Outline Dimension (L×W×H) | mm | 6800×8900×5600 | 6800×8900×4700 |
| Wire-cutting Speed | m/s | 20-40 | 25-30 |
| Gross Weight | kg | 115000 | 8000 |
| Water Consumption | m³/h | 4 | 4 |
Xianda machinery
Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
