BLMM-1700

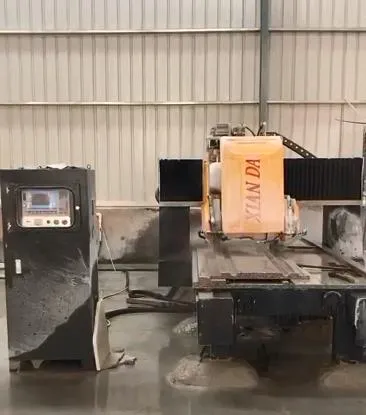

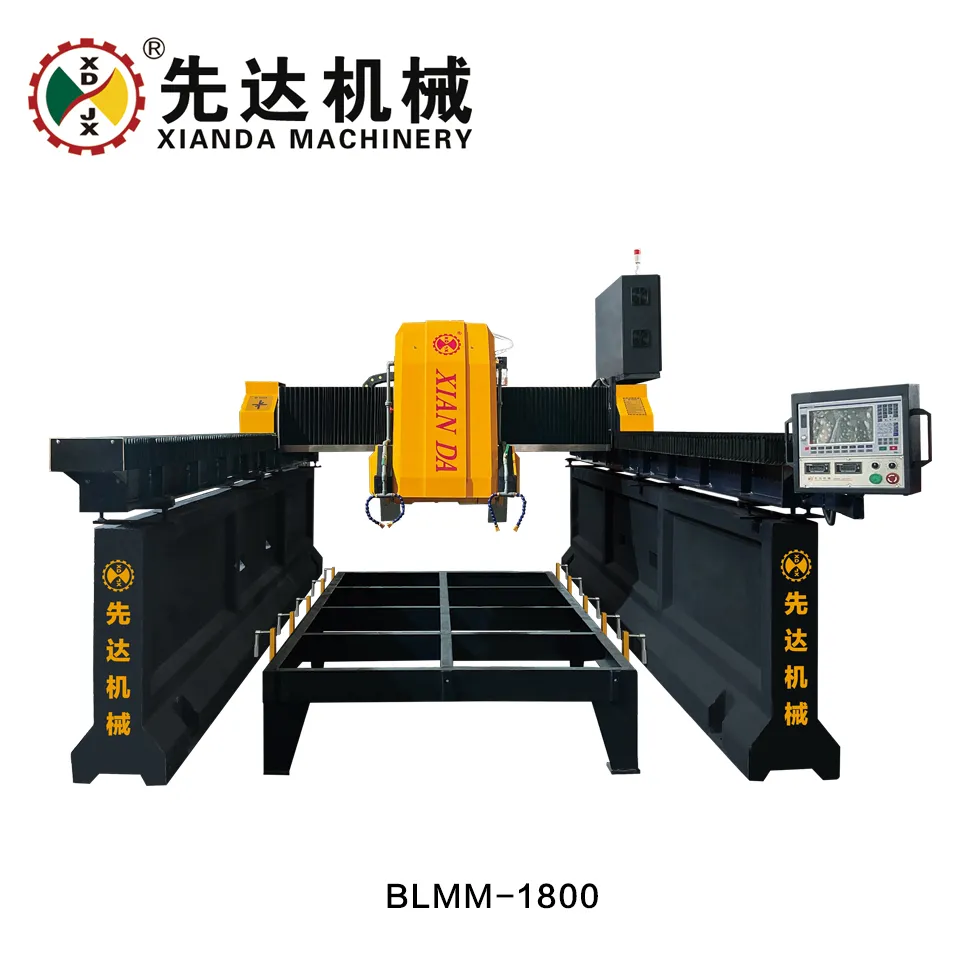

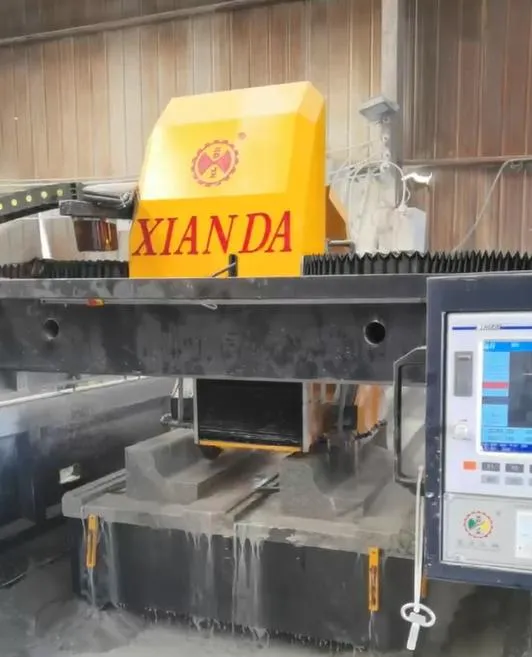

Bridge Type Linear Cutting and Milling Machine

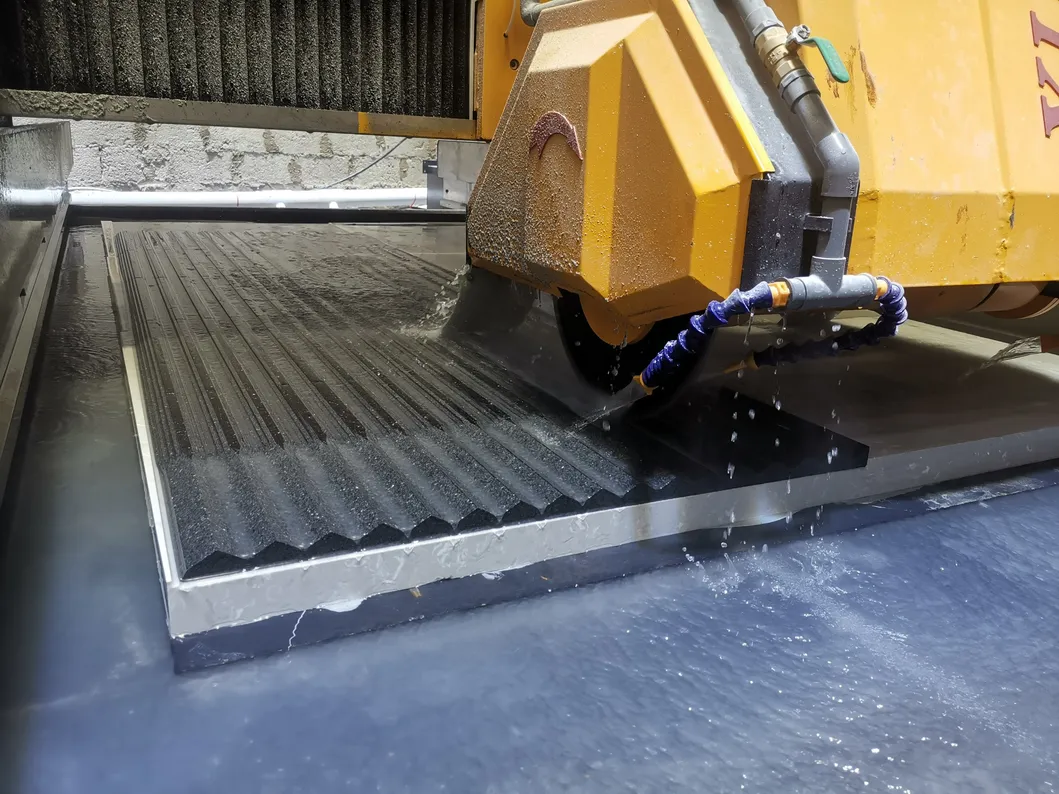

This machine is with 3axis CNC system,including the rough cutting,fine Cutting,finish milling etc. The structure is bridge type. Blade lifting by guide pillar and with copper bush. It combines the power of profiling machine and accuracy of linear guide ,ball screw rod.

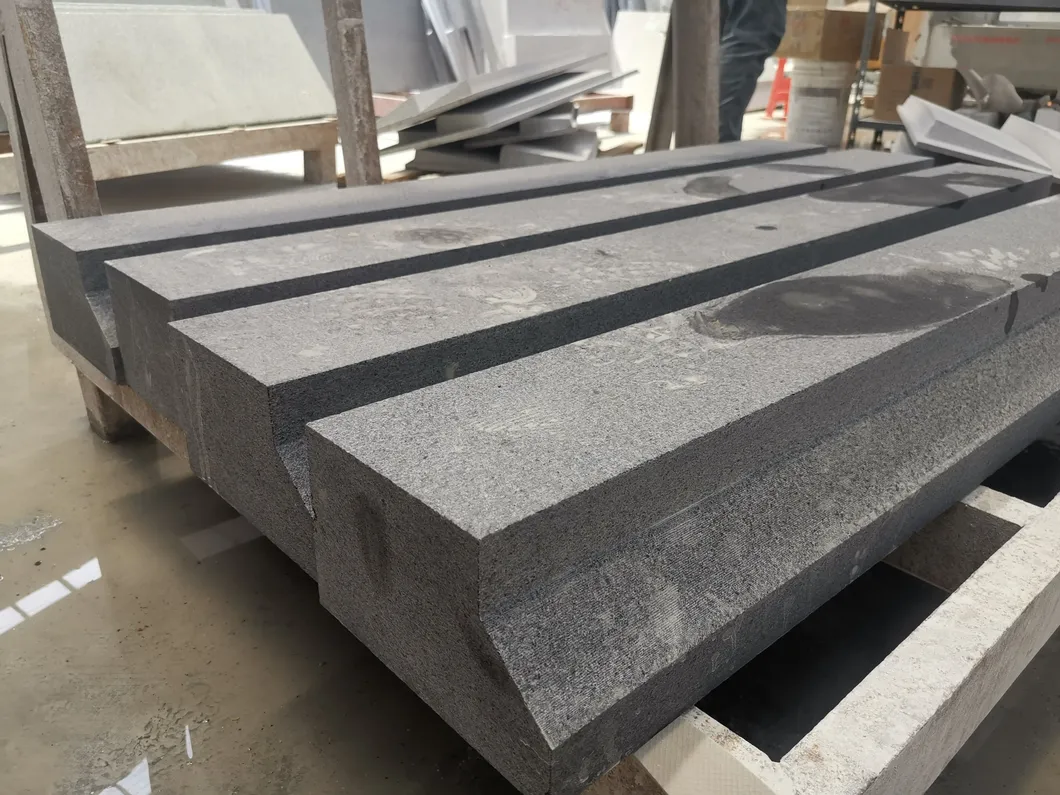

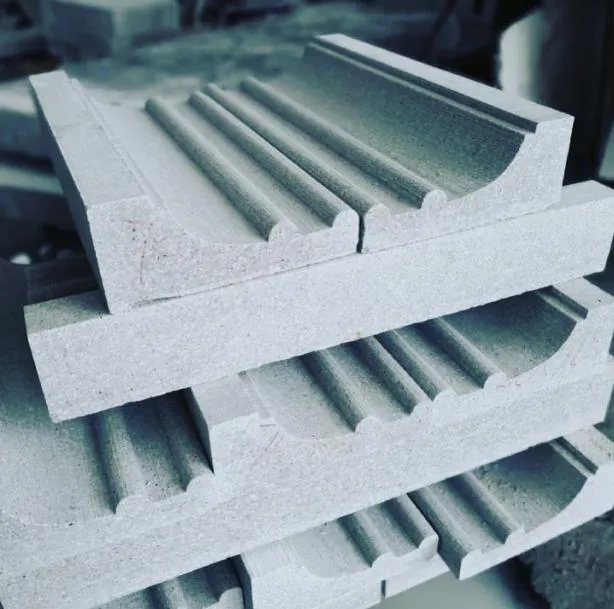

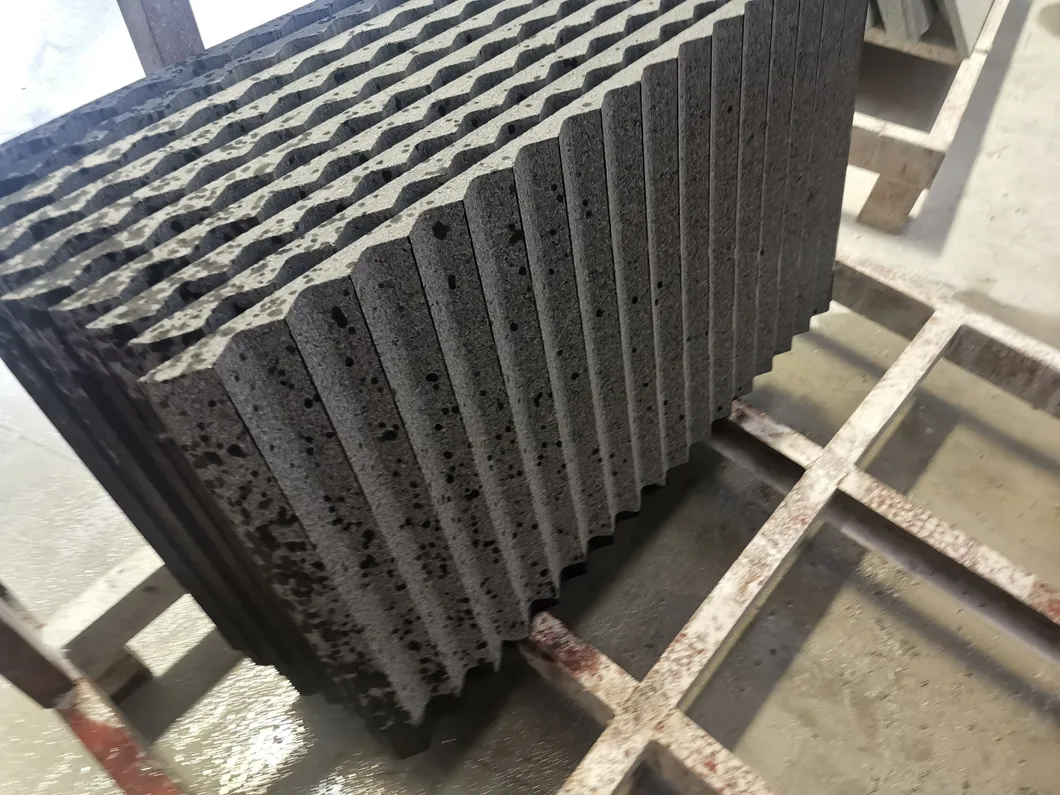

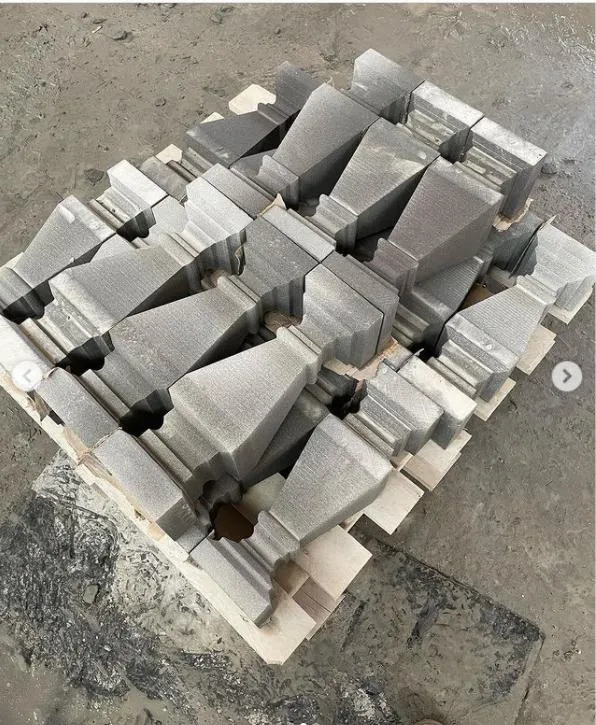

With the advantages of high efficiency, high accuracy, high stability. It’s the ideal euipment for processing linear, square baluster and special shapes of kerbstone.
Product Parameters
| Parameter | Unit | BLMM-1700 |
| Blade diameter | mm | 400-600 |
| Max lifting travel of cutting frame | mm | 400 |
| Trolley size | mm | 1700*3500 |
| Max processing length | mm | 3500 |
| Main motor | kw | 15 |
| Gross power | kw | 21 |
| Outline dimension | mm | 5300*3850*2500 |
| Water consumption | m³/h | 6 |
