China Factory 5 Axis CNC Stone Machinery Diamond Wire Saw Marble Granite Cutting Machine Big Block Dressing Machine Edge Trimming Cutter Squaring Saw Machine

سعر FOB: $37.000,00 – $45.000,00 / وحدة

الحد الأدنى للطلب: وحدة واحدة

توريد وشحن
تركيب وتشغيل
تدريب الفريق
ضمان ودعم

رمز المنتج: XD-bsXxhDVYnukW التصنيف: Diamond Wire Saw Machine الوسوم: ماكينات صناعية, منشار سلك ماسي العلامة التجارية: Xianda

الوصف
Specifications

الوصف

China Factory 5 Axis CNC Stone Machinery Diamond Wire Saw Marble Granite Cutting Machine Big Block Dressing Machine Edge Trimming Cutter Squaring Saw Machine

Product Description

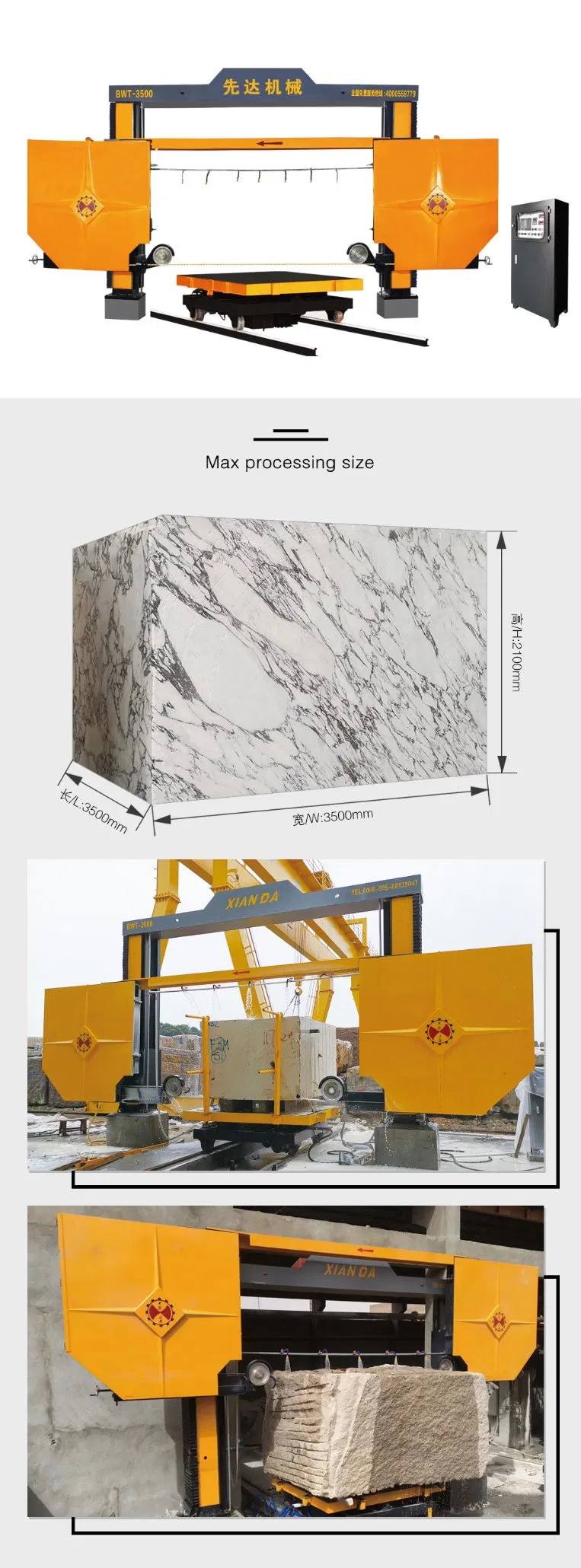

China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Technical Parameter

Parameter	Unit	BWT-3000-15	BWT-3500-18	BWT-3500-21
Max processing size	mm	*300030001500*	*350030001800*	*350035002100*
Dimension of worktable	mm	*16002000**	*18002000**	*20002500**
Main motor	kw	11	11	15
Table bearing weight	T	20	35	50
Wire speed	m/s	0-40	0-40	0-40
Gross motor	kw			19
Outline dimension	mm	*880055004100*	*930059004800*	*980068005600*
Gross weight	kg	7200	9000	10700
Water consumption	m³/h	6	6	6

Xianda Machinery

China Factory 5 Axis CNC Stone Machinery Diamond Wire Saw Marble Granite Cutting Machine Big Block Dressing Machine Edge Trimming Cutter Squaring Saw Machine

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.

With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.

Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.

“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.

Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.

CustomizationAvailable

TypeStone Cutting Machine

UsageGranite, Marble

Model NO.BWT-3500-21

ApplicationMachinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry

Source Voltage380V

AutomationAutomatic

Cutting AbilityHigh Speed

ControlPLC

CertificationCCC, SONCAP, GOST, ISO, CE

Max Processing Size3500*3500*2100mm
