Product Description

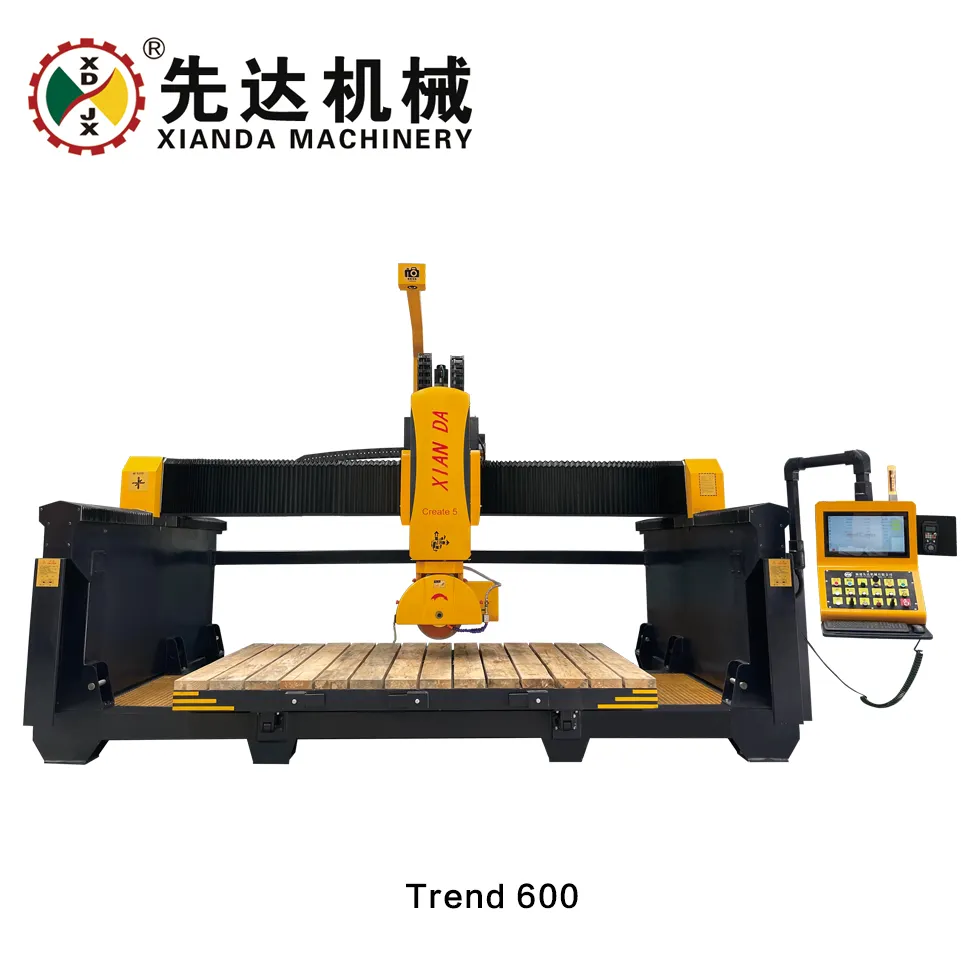

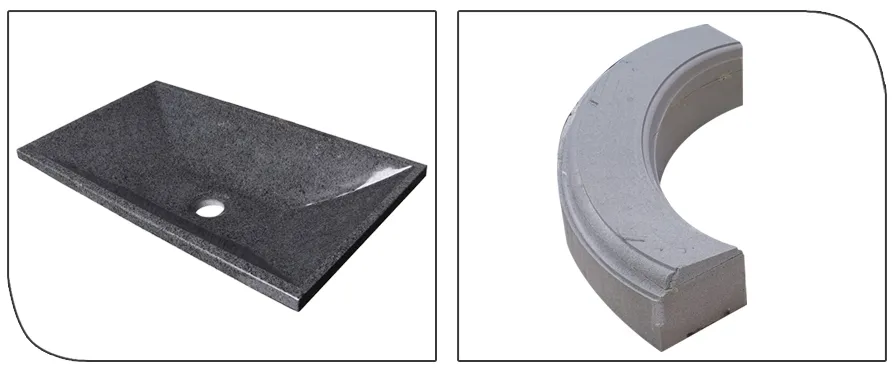

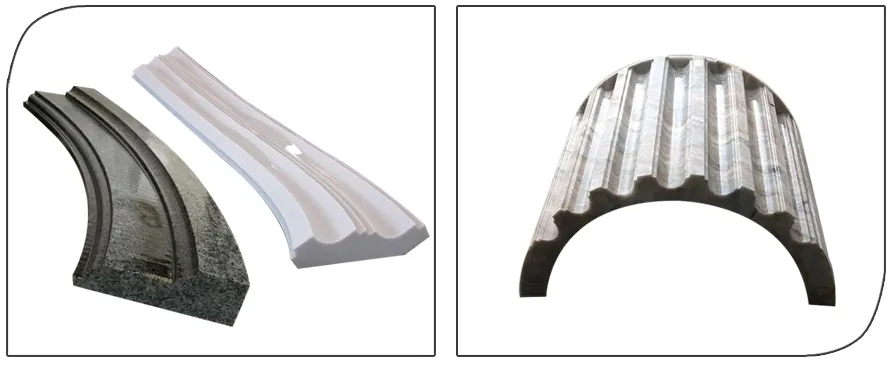

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control, Bus- based absolute value servo ( with memory function for power off), high-precision linear guide rail, bass screw transmission, oil- immersed track structure , with multi -function, high precision, strong stability and other advantages, Its processing functions include : arbitrary-shaped lines, fan-shaped plated, wash basin and special – shaped edge profiling, etc. The equipment has multiple processing functions, wide applicaton ,small space, and simple operation .It is a great equipment for stone processing .
Specification
|
Technical Parameter
|
Unit
|
Trend 600
|
|

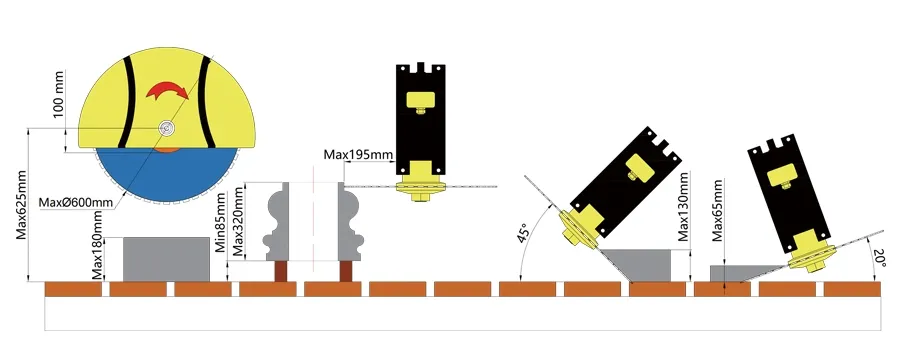

Blade diameter range
|
mm
|
Φ350-Φ600
|
|
Max processing size
|
mm
|
3400 x 2000 x 180
|
|
Lifting stroke
|
mm
|
500
|
|
Worktable Size
|
mm
|
3400 x 2000
|
|
Table Tilting degree
|
°
|
0,85°
|
|
Head rotating degree
|
°
|
0~360°
|
|
Head tilting degree
|
°
|
0~90°
|
|
Air Speed
|
m/min
|
25
|
|
Repeated accuracy of possitioning
|
mm
|
less than 0.1mm/1000
|
|
Main motor
|
kw
|
22(Permanent magnet motor)
|
|
Gross power
|
kw
|
30
|
|
Water consumption
|
m³/h
|
≈2
|
|
Outline dimension
|
mm
|
5800 x 3650x 3900
|
|
Gross weight
|
kg
|
≈8000
|
