Product Description

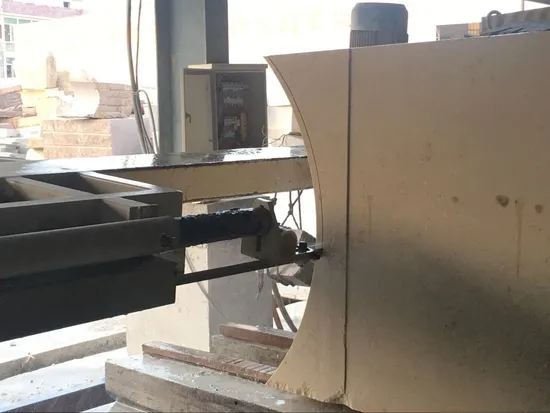

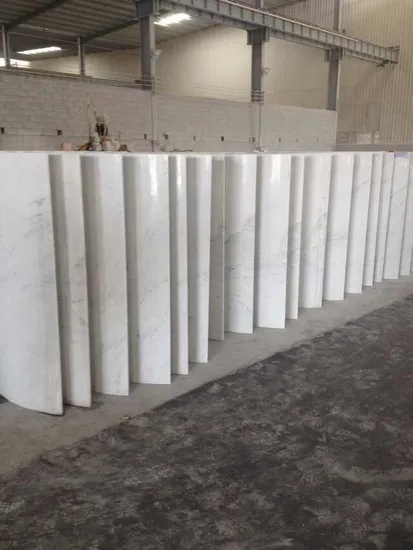

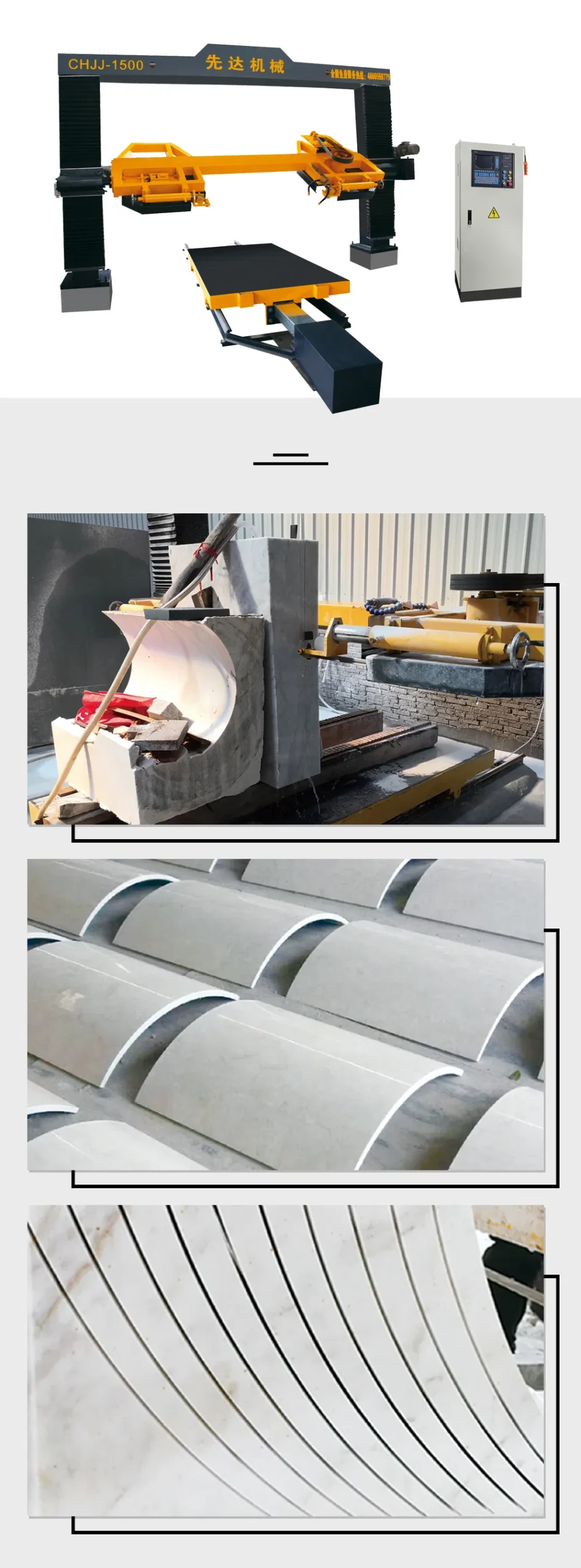

Fujian Xianda CHJJ-1500, Circular slab stone cutting machine adopts CNC system control ,the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. It has the teatures of lower energy consumption and small saw kerfs(3MM saw kerfs), saving blocks, simple blocks , simple operation ,high precision and high efficiency .Processing diameter range is bigger than 600mm( including 600mm) , which is the ideal chioce for processing marble block to circular arc slab.
Technical Parameter
|
Parameter
|
Unit
|
CHJJ-1500
|
|
Column of diameter
|
mm
|
600
|
|
Max cutting height
|
mm
|
1500
|
|
Max cutting width
|
mm
|
1300
|
|
Outline dimension
|
mm
|
6300*5200*3200
|
|
Main motor
|
kw
|
4
|
|
Gross motor
|
kw
|
11
|
|
Gross weight
|
kg
|
5000
|
|
Water consumption
|
m3/h
|
4
|
Xianda machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
Key words: stone cutting machine, wire saw machine, stone profiling.
