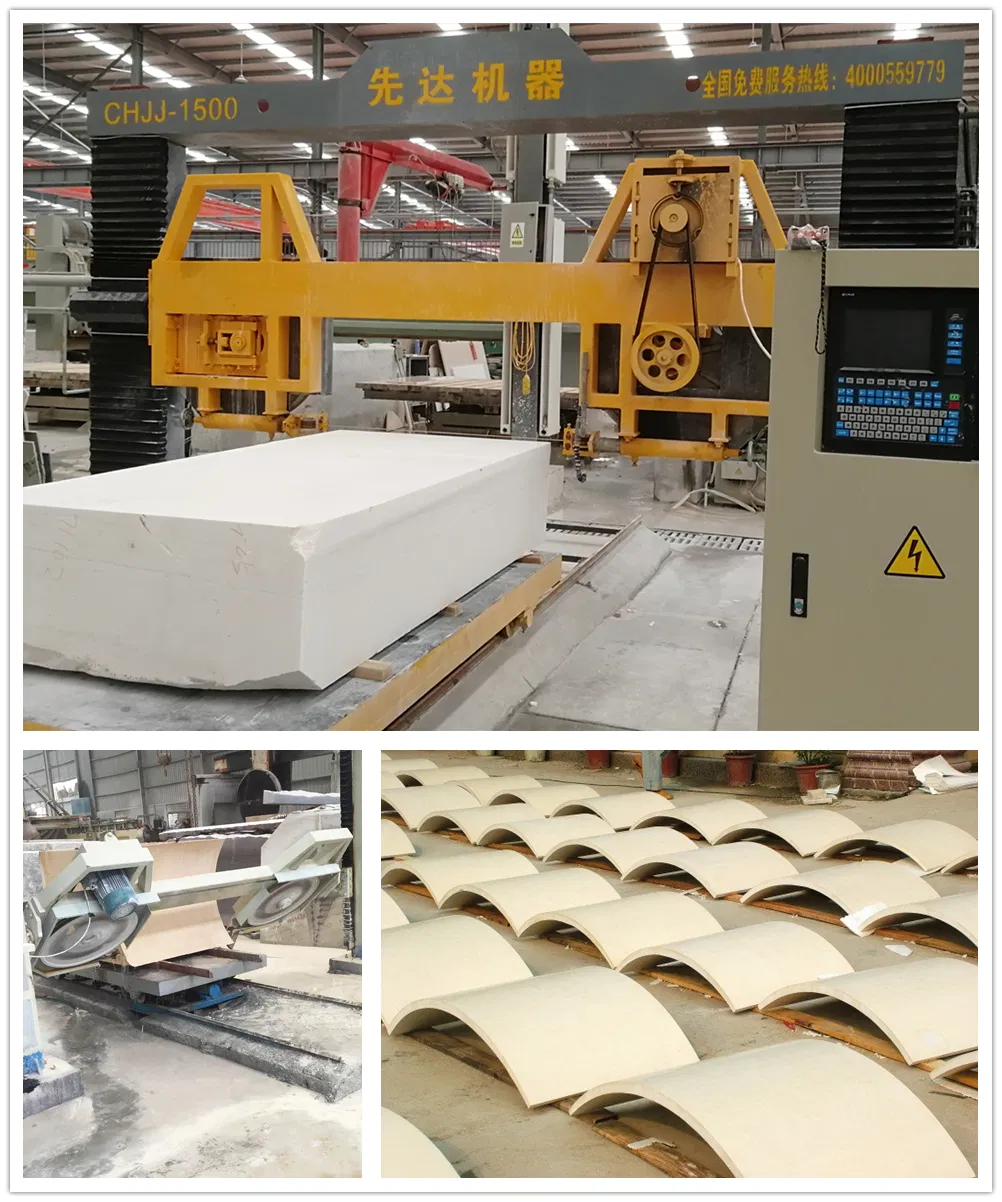

CNC Circular Slab Stone Cutting Machine for Processing Marble CHJJ-1500

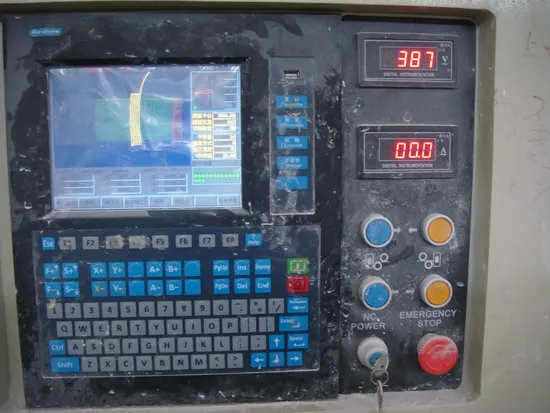

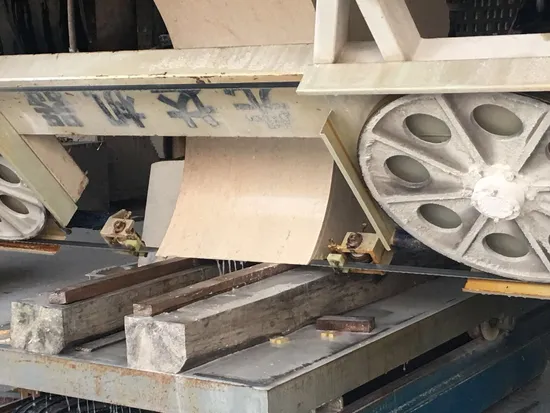

Circular slab stone cutting machine adopts CNC system control, the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. lt has the features of lower energy consumption and small saw kerfs(3mm saw kerfs), saving blocks, simple operation, high precision and high efficiency. Processing diameter range is bigger than 600mm (including600mm),which is the ideal choice for processing marble block to circular arc slab stone material.
Circular slab stone cutting machine adopts CNC system control, the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. lt has the features of lower energy consumption and small saw kerfs(3mm saw kerfs), saving blocks, simple operation, high precision and high efficiency. Processing diameter range is bigger than 600mm (including600mm),which is the ideal choice for processing marble block to circular arc slab stone material.
Technical Parameter
|
Parameter
|
Unit
|
CHJJ-1500
|
| Column of Diameter | mm | ≥φ600 |
|
Max Cutting Height
|
mm
|
1500
|
|
Max Cutting Width
|
mm
|
1300
|
|
Main Motor
|
kw
|
5.5
|
|
Gross Power
|
kw
|
12.5
|
|

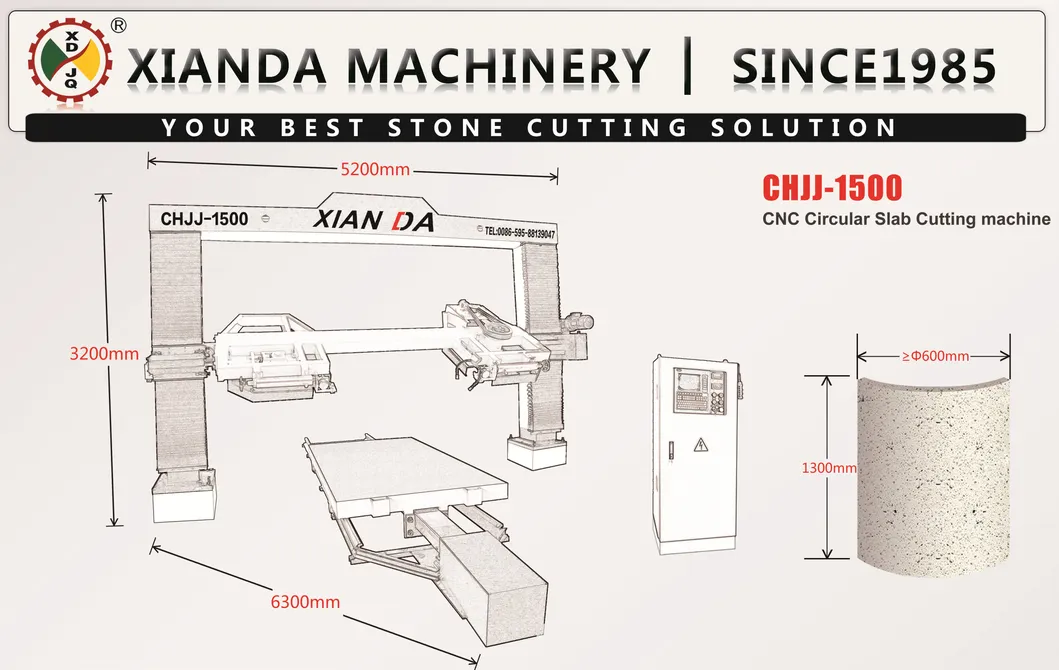

Outline Dimension
|
mm
|
5200*6300*3200
|
|
Gross Weight
|
kg
|
4500
|
|
Water Consumption
|
m³/h
|
4
|
