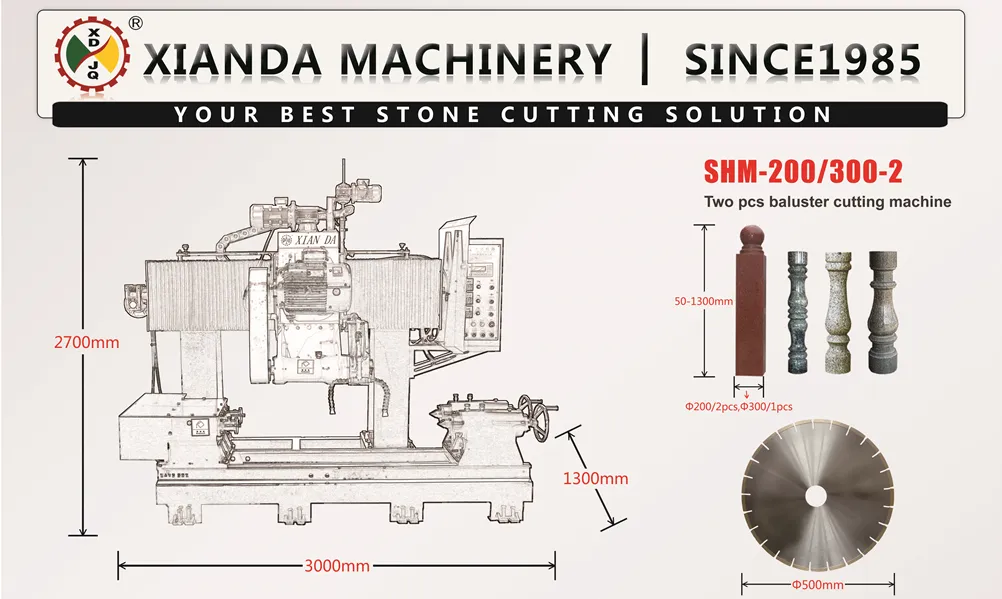

Two PCS Baluster Cutting Kingpost Roadblock Processing Machine SHM-200/300-2 CHM-200/300-2

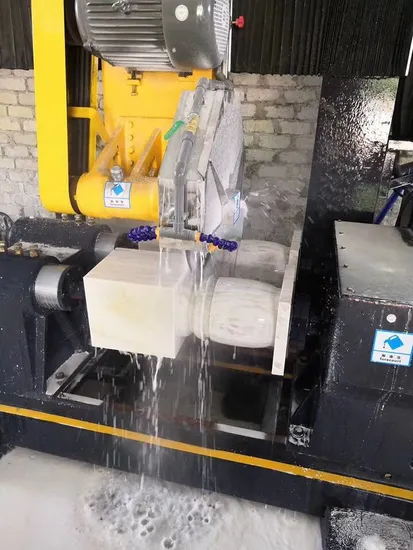

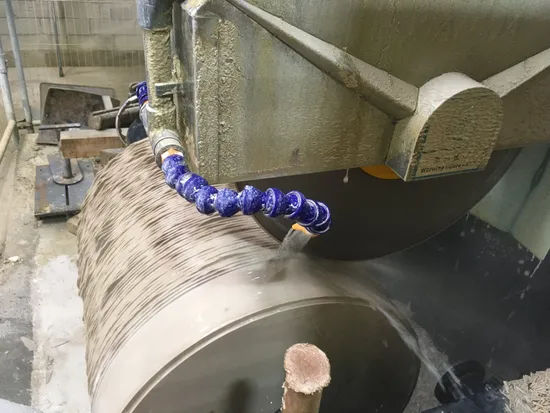

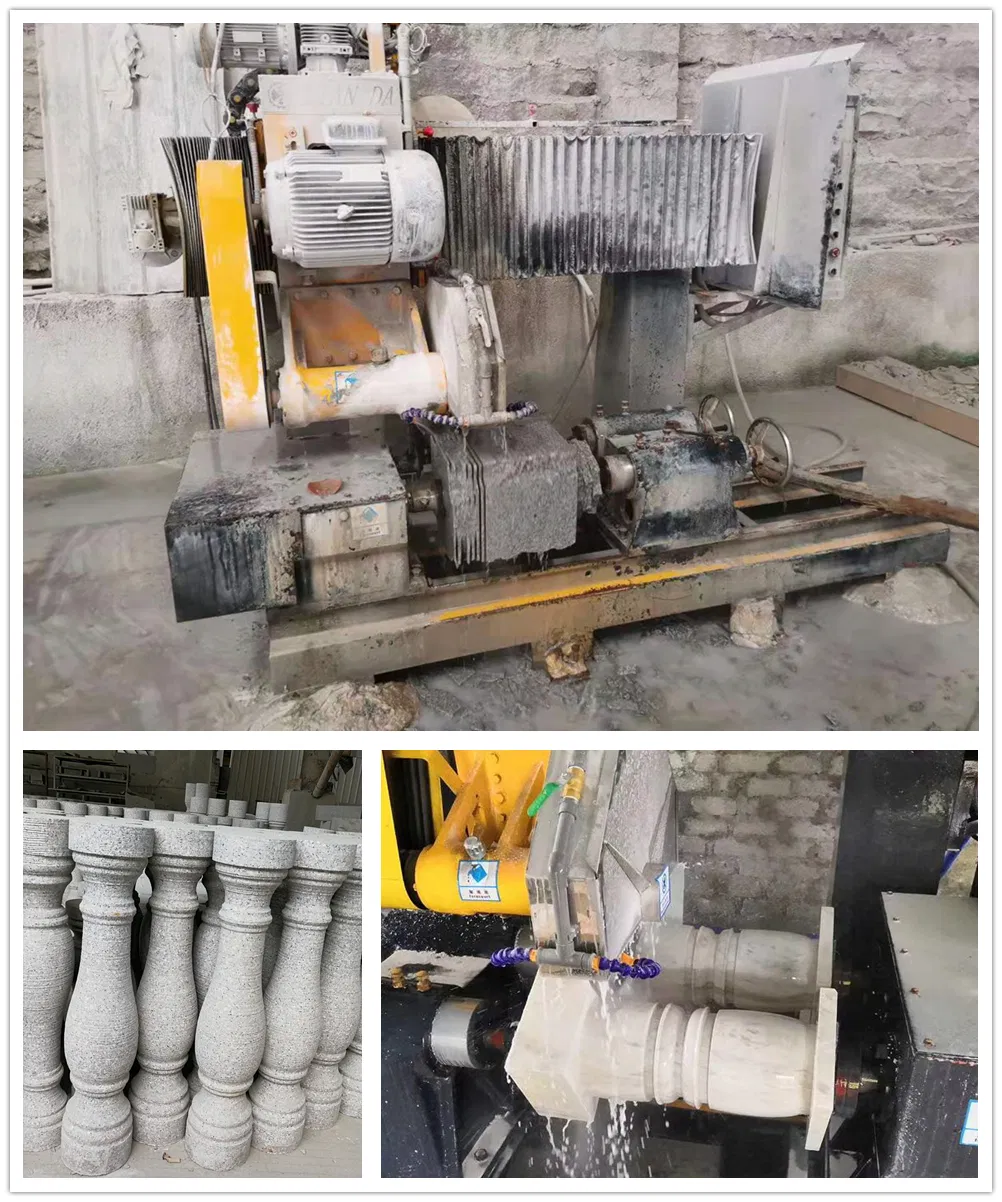

This machine adopts PLC/CNC control, three inverter, simple and practical structure, high efficiency. Dedicated to theprocessing of baluster, kingpost, roadblock and others.
Technical Parameter
| Parameter |
Unit |
SHM-200/300-2 CHM-200/300-2 |
| Blade Diameter |
mm |
φ500 |
| Max Processing Diameter |
mm |
φ200/2pcs;φ300/1pc |
| Processing Length |
mm |
50-1500 |
| Main Motor |
kw |
11 |
| Gross Power |
kw |
16 |
| Outline Dimension |
mm |
3200*1300*2800 |
| Gross Weight |
kg |
3000 |
| Water Consumption |
m³/h |
3 |
CustomizationAvailable
After-sales ServiceOne Year for Spare Part
WarrantyOne Year
Model NO.CHM-200/400-2 SHM-200/400-2
TypeBaluster Machine
UsageCeramics, Concrete Curb, Granite, Marble, Onyx Onyx Limestone Sandstone
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC/CNC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Blade DiameterΦ500
Max Processing DiameterΦ200/2PCS, Φ300/1PC
Processing Length50-1500mm
Main Motor11kw
Gross Power16kw
Outline Dimension3200*1300*2800mm
Gross Weight3000kg
Water Consumption3m3/H
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification3200*1300*2800mm
TrademarkXianda
OriginFujian, China (Mainland)
HS Code84641080
Production Capacity1000set Per Year
