CNC Diamond Wire Saw Machine – Heavy Duty and High Precision

سعر FOB: $38.000,00 – $42.000,00 / وحدة

الحد الأدنى للطلب: وحدة واحدة

توريد وشحن
تركيب وتشغيل
تدريب الفريق
ضمان ودعم

رمز المنتج: XD-DFlAOdBKcwtv التصنيف: Diamond Wire Saw Machine الوسوم: ماكينات صناعية, منشار سلك ماسي العلامة التجارية: Xianda

الوصف
Specifications

الوصف

Multi-Function CNC Diamond Wire Stone Cutting Machine for Granite

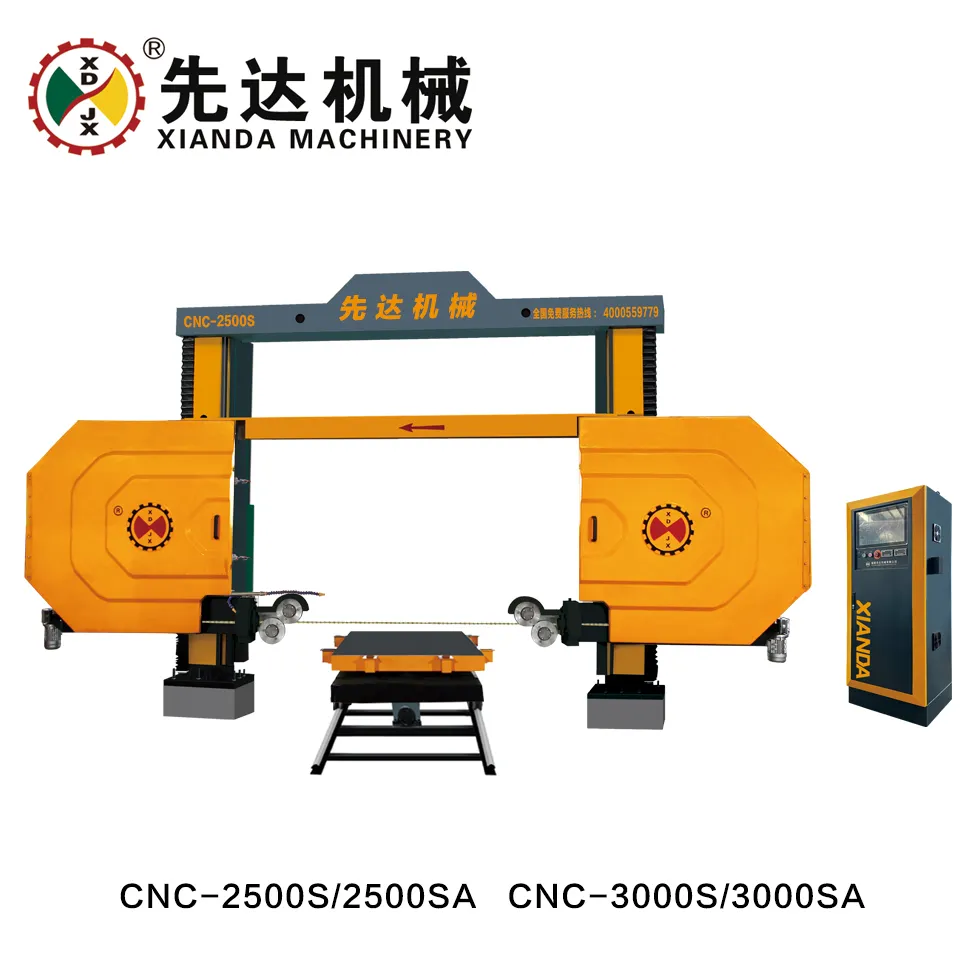

CNC Diamond Wire Saw Machine - Heavy Duty and High Precision

Product Description

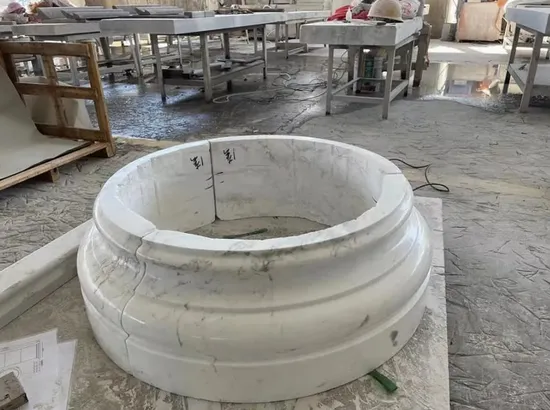

China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Keywords: diamond wire saw machine, block cutting machine, stone trimming machine

Technical Parameter

Parameter	Unit	CNC-2500SA
Max processing size	mm	250030001500
Dimension of worktable	mm	1400*2000
Main motor	kw	15
Outline dimension	mm	780068004100
Gross weight	kg	7750
Water consumption	m3/h	3

Xianda machinery

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.

With 40 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 50 overseas countries users.

Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.

“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.

Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed
