الوصف

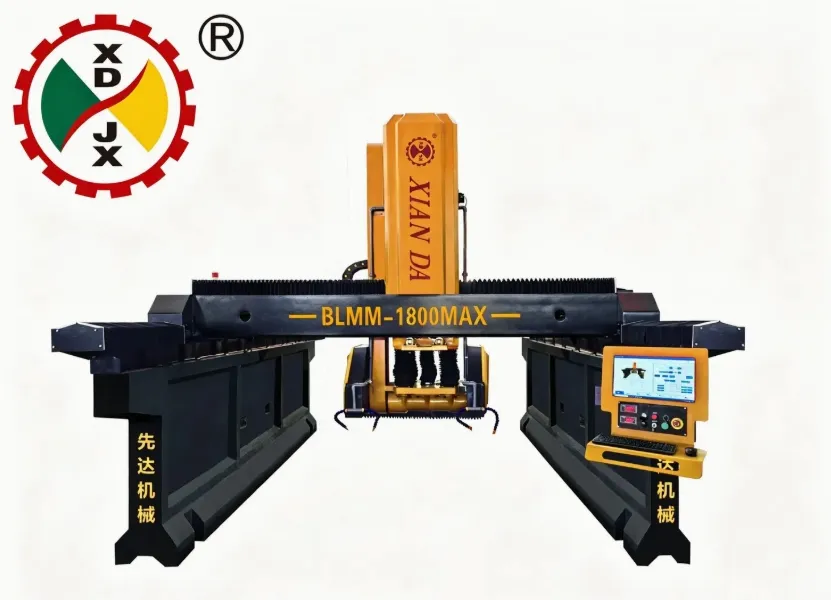

This machine is with 3 axis CNC system, including the rough cutting, fine cutting, finish milling etc., The structure is bridge type. Blade lifting by guide pillar and with copper bush. lt combines the power of profiling machine and accuracy of linear guide,ball screw rod. With the advantages of high efficiency, high accuracy, high stability. It’s the ideal equipment for processing linear, square baluster and special shapes of kerbstone.
Technical Parameter
| Parameter | Unit | BLMM-1800MAX-A |
| Blade diameter | mm | φ400-700 |
| Spindle qty | mm | 1 Spindle (2Blades) |
| Max lifting travel of cutting frame | mm | 600 |
| Trolley size | mm | 1800*3500 |
| Max processing length | mm | 3500 |
| Main motor | kw | 18.5 |
| Gross power | kw | 24 |
| Outline dimension | mm | 6200*4350*3600 |
| X axis transmission structure | / | Walking wheel |
| Y axis transmission structure | / | Single Y aixs drive |
| Water consumption | m³/h | 3 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With 40 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 50 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed
