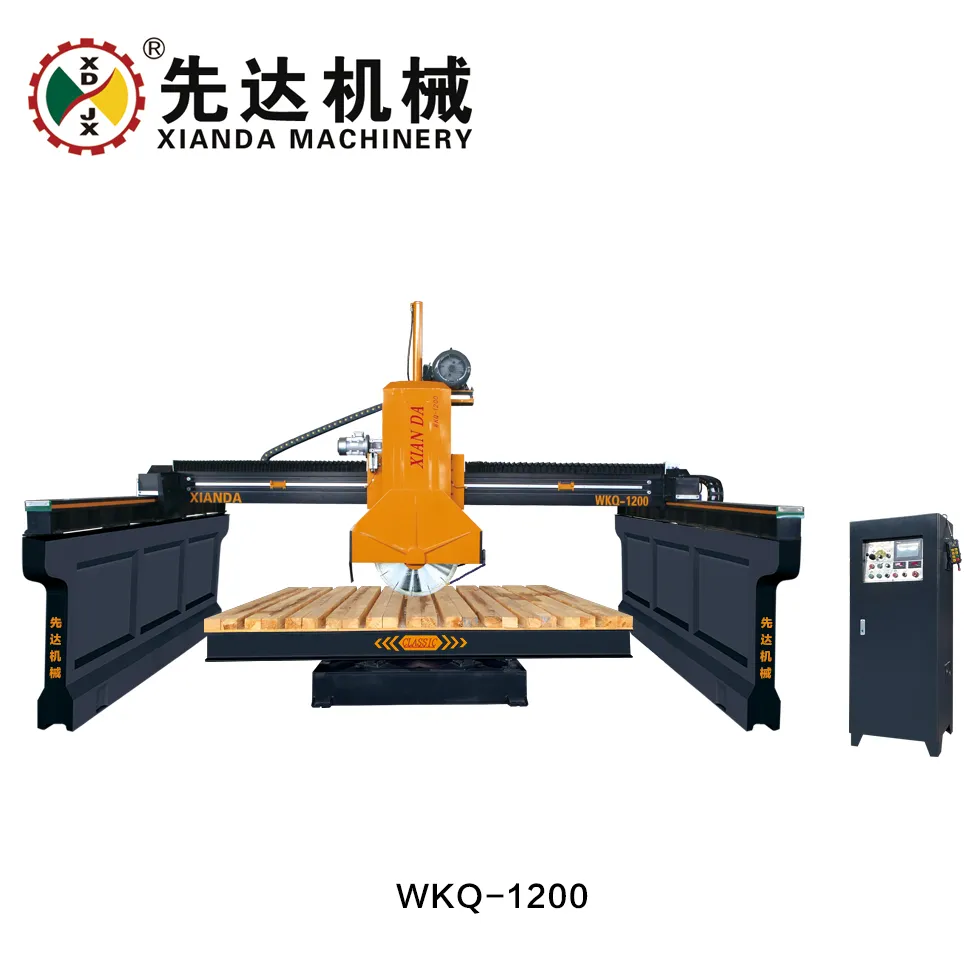

WKQ-1200 Middle Block Cutting Machine
Product Description
Middle block stone cutting machine & stone machine & bridge saw, which be designed by reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.
Product Parameters
| Parameter | Unit | WKQ-1200 |
| Blade diameter range | mm | Φ700-Φ1200 |
| Max lifting travel | mm | 760 |
| worktable size | mm | 3000*2000 |
| Worktable rotating angle | ° | 0-90° |
| Main motor | kw | 22 |
| Gross motor | kw | 29 |
| Water consumption | m³/h | 4 |
| Outline dimension | mm | 6150*4800*4400 |
| Gross weight | kg | 6800 |

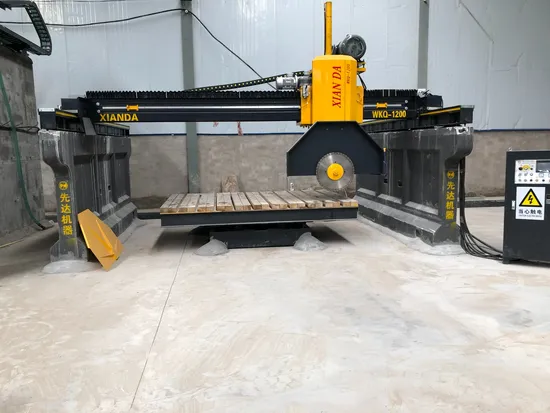

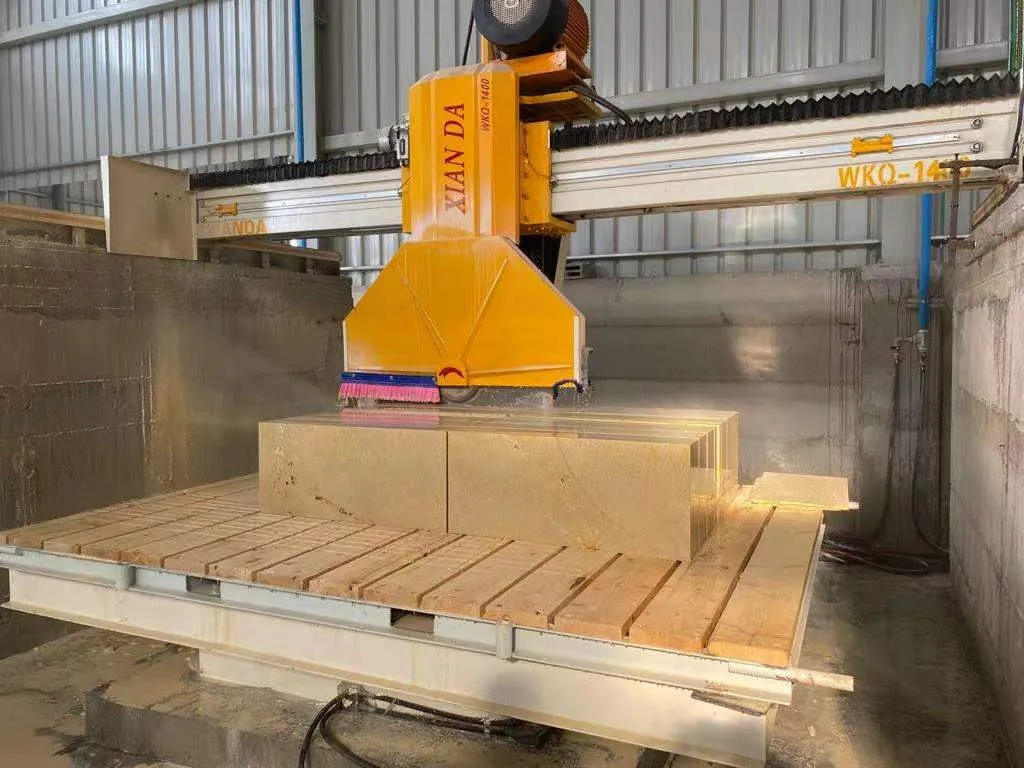

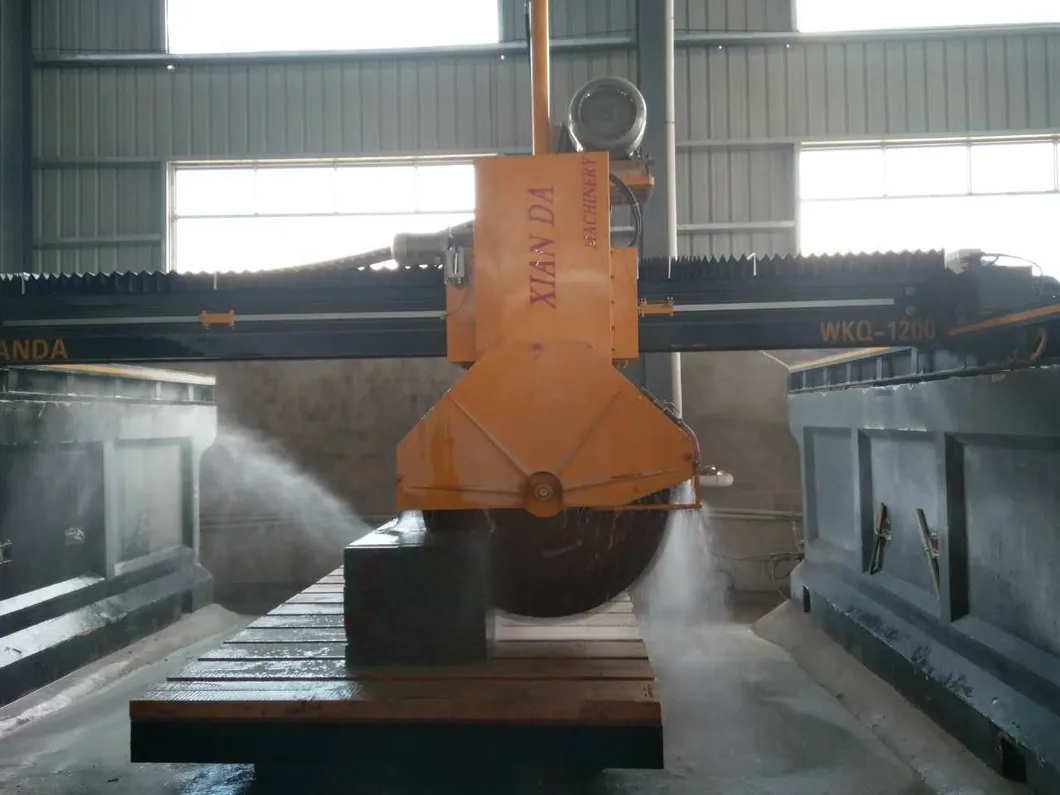

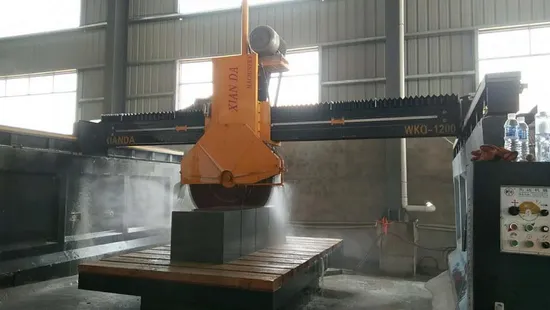

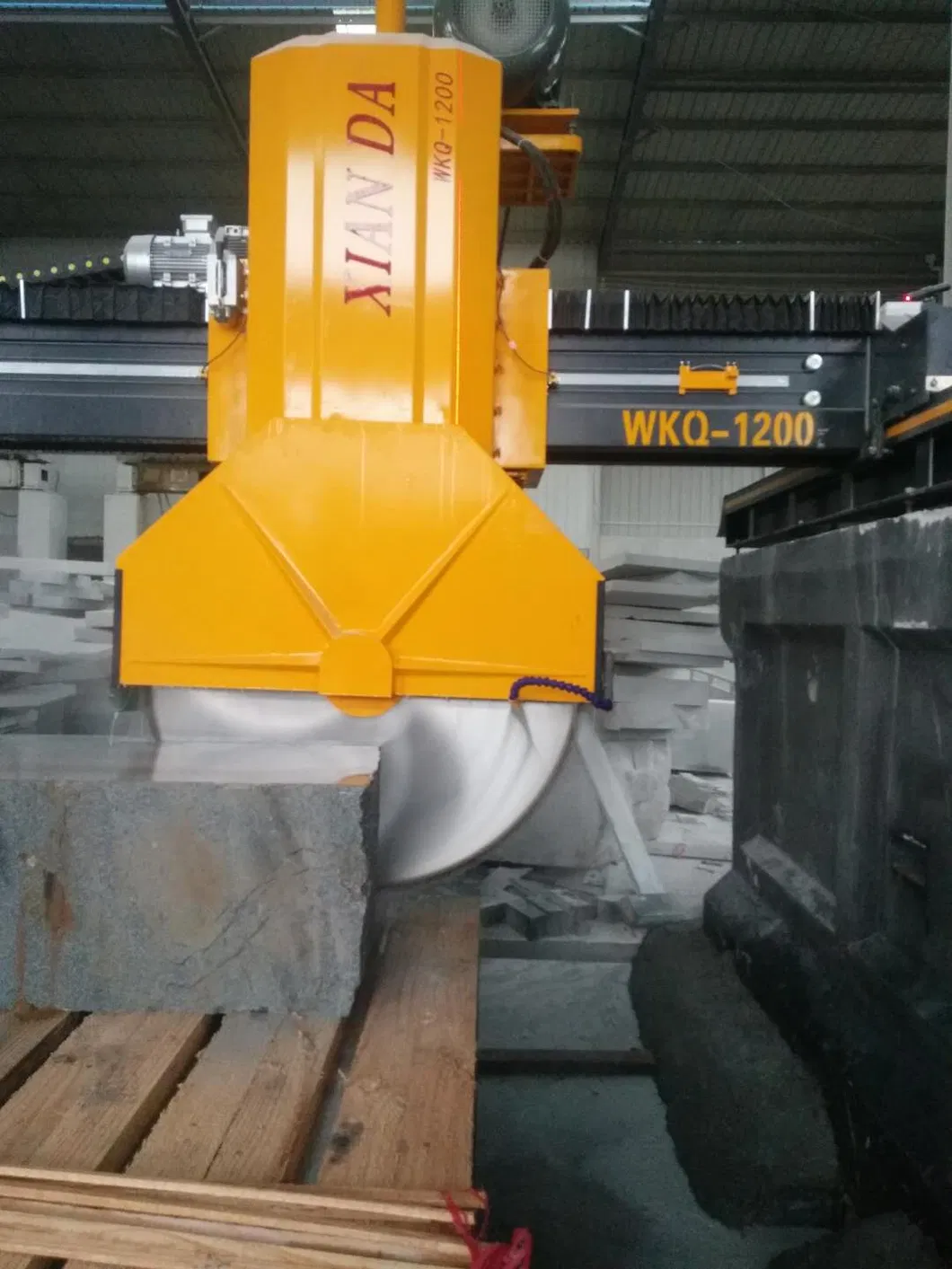

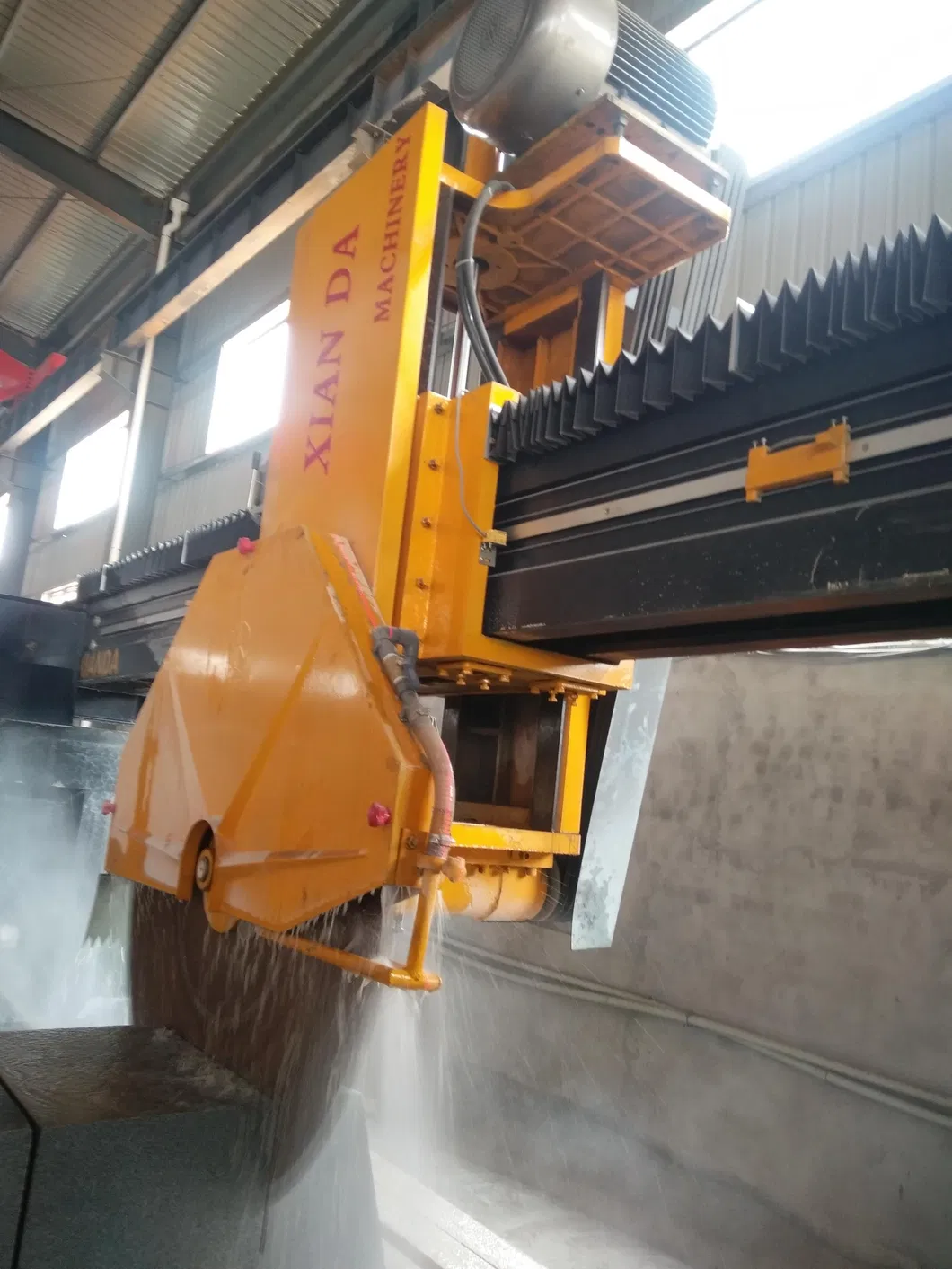

Detailed Photos
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
