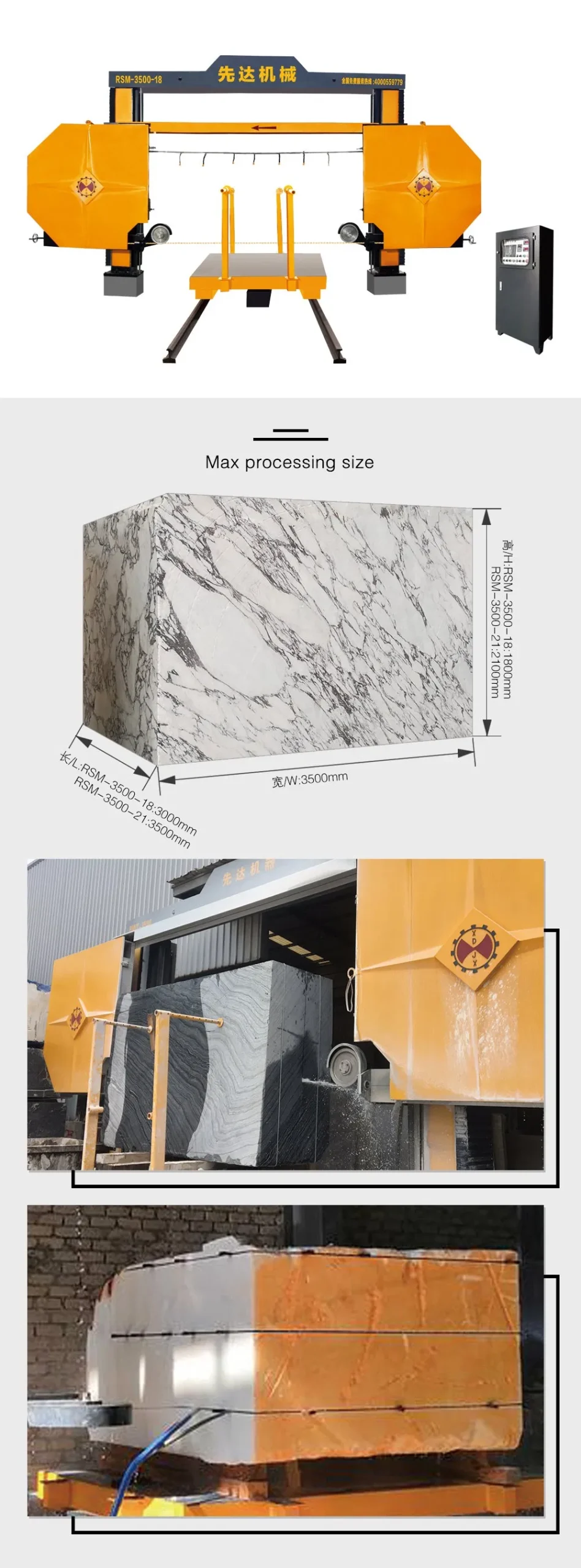

RSM-3500-18-21 diamond wire-saw trimming machine adopts PLC control,CNC is available also.The special design for 360° worktables will fulfil your need,used to trimming the four surfaces of the block,also can cut the block to slab,which is the ideal equipment for cutting and trimming block.Some more it compatible with CNC system,which can process the column slab,pillar,roman column,numeral,letter,Chinese characters and other shapes for the stone.
| Parameter | Unit | RSM-3500-18/21 | CNC-3500 |
| Max processing size | mm | 3500x3500x2100 | 3500x3500x2100 |
| Dimension of worktable | mm | 2500×2000 | 2500×2000 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 24 | 23 |
| Outline dimension | mm | 9500x6800x4700 | 9500x6800x4700 |
| Gross weight | kg | 8000 | 8000 |
| Water consumption | kw | 4 | 4 |
Factory Overviews
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
