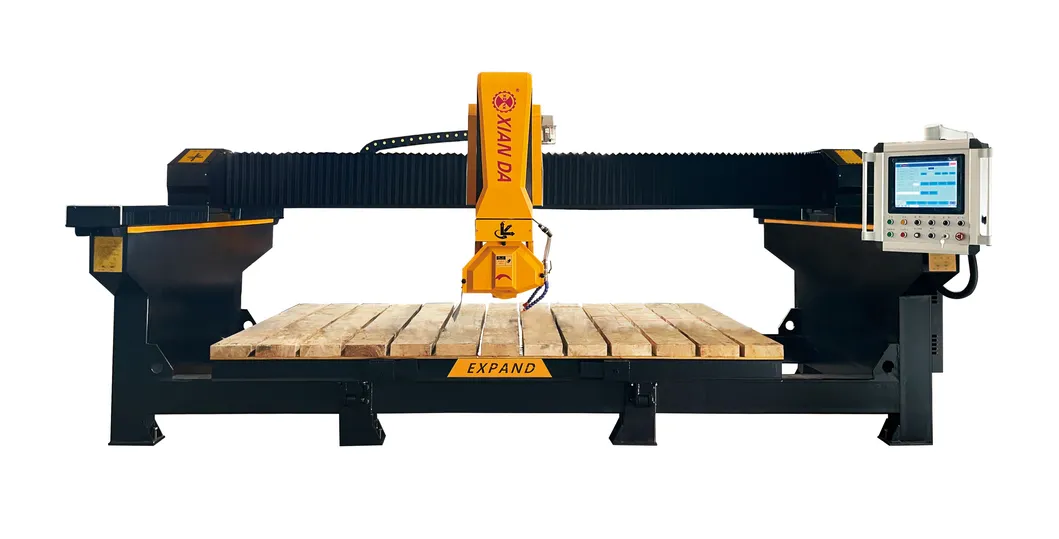

4 axis advanced granite bridge cutting machine
Expand 600H /Expand 600HL
Product Parameters
| Parameter | Unit | Expand 600H | Expand 600HL |
| Blade diameter | mm | Φ350-Φ600 | Φ350-Φ600 |
| Max processing size | mm | 3400×2000×180 | 3400×2000×180 |
| Wortable size | mm | 3400×2000 | 3400×2000 |
| Wortable tilting angle | ° | 0,85° | 0,85° |
| Cutting head rotating degree | ° | 0~360° | 0~360° |
| Cutting head rotation control mode | / | Servo motor control | Servo motor control |
| Cutting head chamfer rotating degree | ° | Not | 0-60°/Servo control |
| Main Motor power | kw | 22(permanent magnet motor) | 22 (permanent magnet motor) |
| Water consumption | m³/h | ≈2 | ≈2 |
| Outline dimension | mm | 5800×3600×3350 | 5800×3600×3350 |
Product description
4 Axis bridge cutting machine adopts four-axis linkage CNC system control, bus absolute value servo (with power-off memory function), high-precision linear guide, rack drive, oil-immersed track structure , with multi-function, high precision and strong stability and other advantages.
HOT PRODUCT
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 80% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
Delivery time
Based on order quantity, normally three weeks against payment.
Warranty
All the machines have one year warranty.
