Stone Balustrade Cutting Machine for Marble and Granite
Product Description

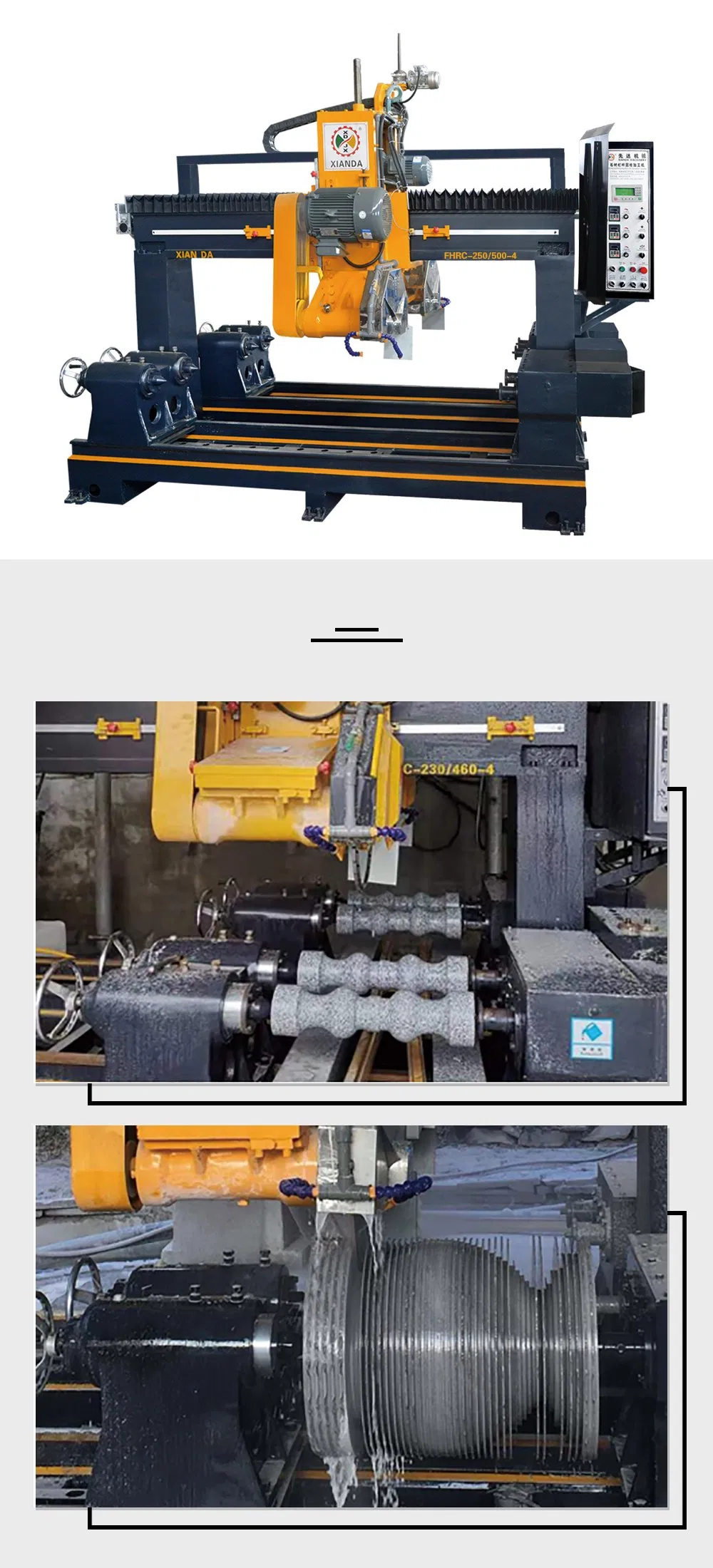

FHRC-230/460-4 marble granite handrail/column/Balustrade Cutting Machine adopts PLC control, the use of profiling probe devices, the probe automatically track curved (straight) line template, template profiling, both of blade holder in a whole block, moving in the oil-immersed cross beam, and adopt screw drive lifting, screw have a long life, horizontal, vertical moving steady, smooth cutting, high efficiency, while the use of oilimmersed gearbox gear structure, better gear and turbine housing to protect the process ideal for different specifications of cylinder, railings, flower pots and other special-shaped ball and stone products.
Technical Parameter
| Parameter | Unit | FHRC-230/460-4 |
| Blade Diameter | mm | φ500 |
| Max Processing Diameter | mm | φ230/4pcs ; φ460/2pcs |
| Cutting Length | mm | 200-1500 |
| Main Motor | kw | 11*2 |
| Gross Motor | kw | 29.5 |
| Outline Dimension | mm | 3600*2000*3200 |
| Gross Weight | kg | 5000 |
| Water Consumption | m3/h | 6 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
