Product Description

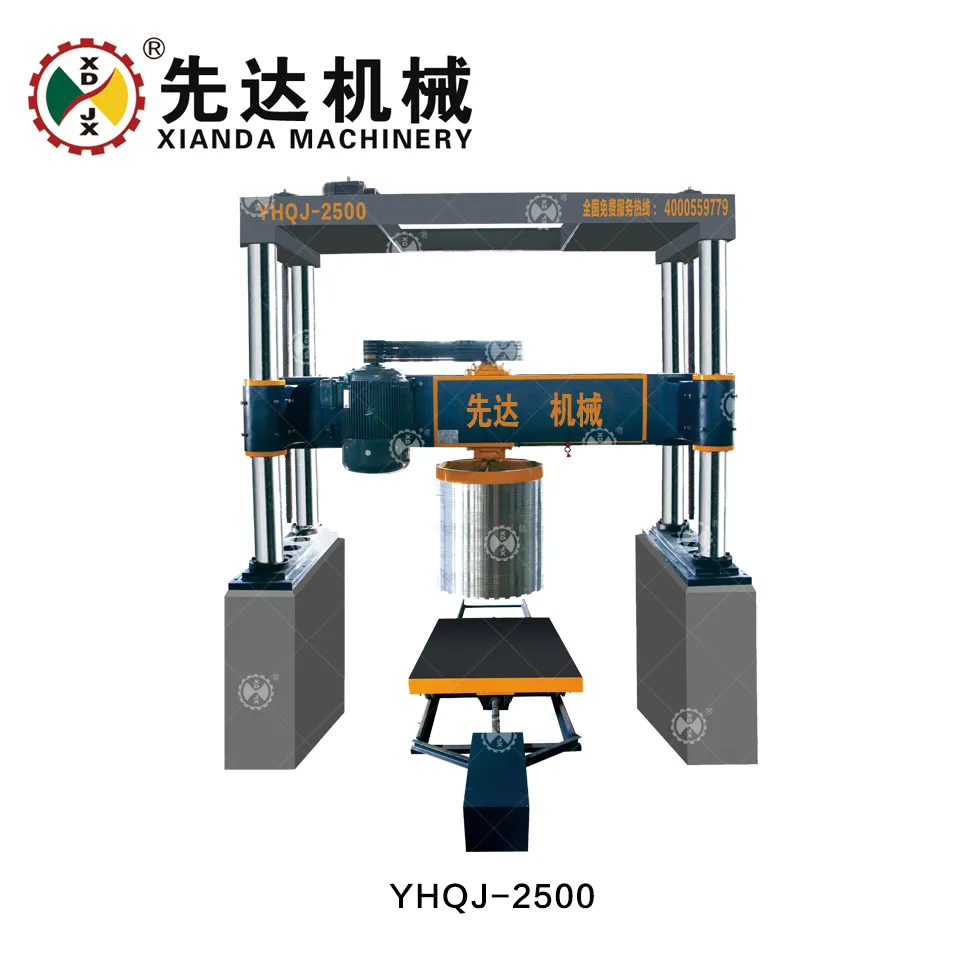

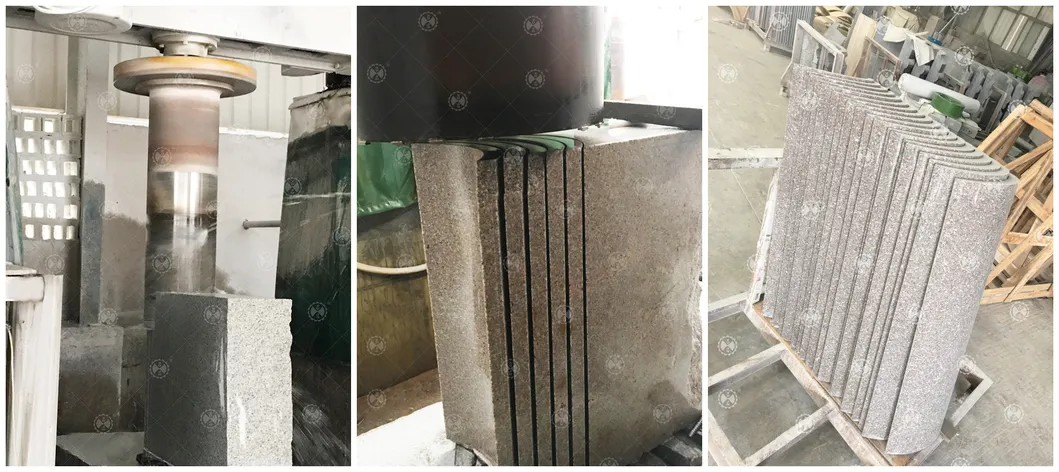

Xianda YHQJ-2000-2500 four-cylinder gantry column slab granite cutting machine has the automatic cycle function of cutting and processing slabs with mobile vertical moving and autom atic cutting slab by slab. When cutting with single cylinder saw blade, the slab’s middle thickness is a little bigger than two sides, when cutting with double circular saw blades, it will process the same thick column slabs.
Technical Parameter
| Parameter | Unit | YHQJ-2000 | YHQJ-2500 |
| Max diameter of cylinder | mm | Φ2000 | Φ2500 |
| Max vertical lifting travel | mm | 1500 | 1500 |
| Max worktable travel | mm | 3000 | 3000 |
| Main motor | kw | 22/30 | 22/30 |
| Gross motor | kw | 26.5/34.5 | 26.5/34.5 |
| Outline dimension | mm | 3300*1700*3100 | 3800*1700*3100 |
| Gross weight | kg | 7500 | 8000 |
| Water consumption | m3/h | 8 | 8 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
