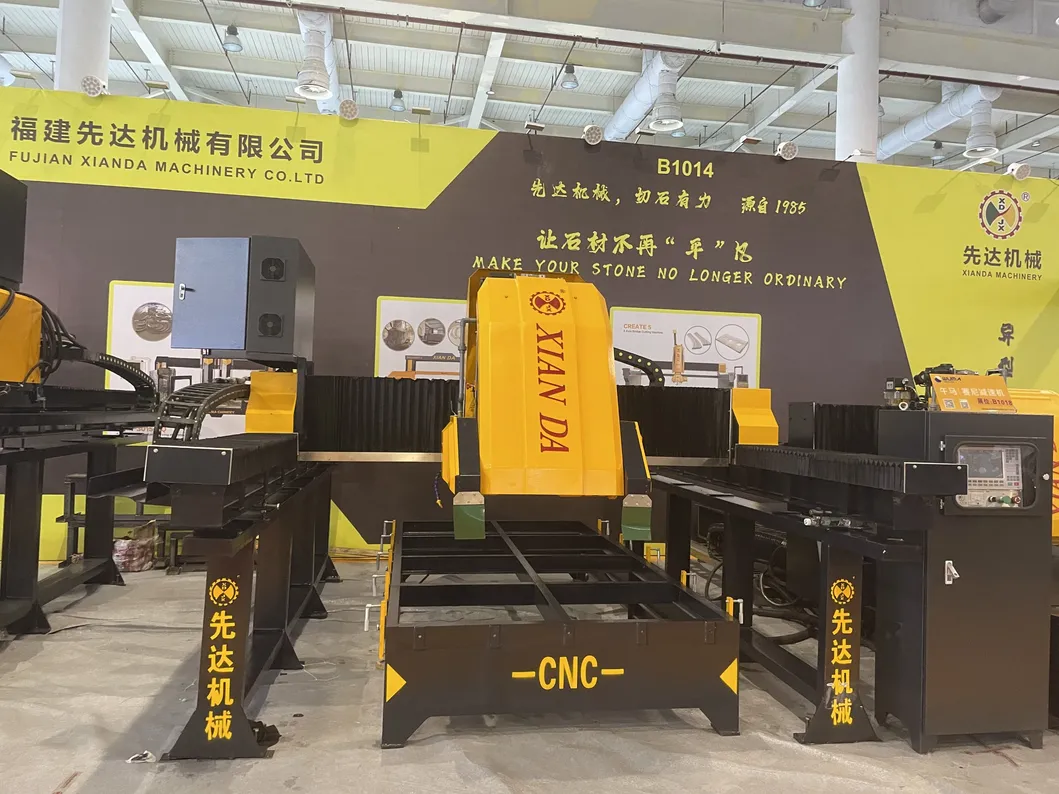

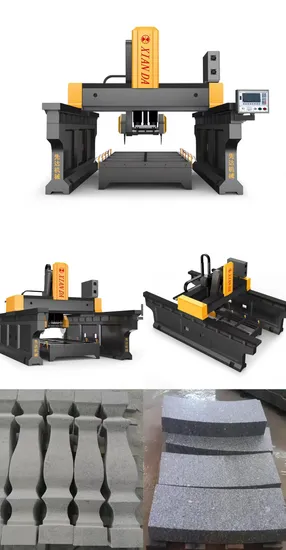

Bridge Type Linear Cutting and Milling Machine BLMM-1800MAX-A/B

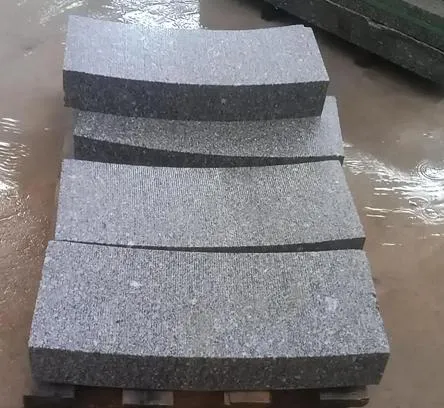

This machine is with 3 axis CNC system, including the rough cutting, fine cutting, finish milling etc., The structure is bridge type. Blade lifting by guide pillar and with copper bush. lt combines the power of profiling machine and accuracy of linear guide,ball screw rod. With the advantages of high efficiency, high accuracy, high stability. It’s the ideal equipment for processing linear, square baluster and special shapes of kerbstone.
This machine is with 3 axis CNC system, including the rough cutting, fine cutting, finish milling etc., The structure is bridge type. Blade lifting by guide pillar and with copper bush. lt combines the power of profiling machine and accuracy of linear guide,ball screw rod. With the advantages of high efficiency, high accuracy, high stability. It’s the ideal equipment for processing linear, square baluster and special shapes of kerbstone.
Technical Parameter
| Parameter | Unit | BLMM-1800MAX-A | BLMM-1800MAX-B |
| Blade diameter | mm | φ400-700 | φ400-700 |
| Spindle qty | mm | 1 Spindle (2Blades) | 1 Spindle (2Blades) |
| Max lifting travel of cutting frame | mm | 600 | 600 |
| Trolley size | mm | 1800*3500 | 1800*3500 |
| Max processing length | mm | 3500 | 3500 |
| Main motor | kw | 18.5/22 | 18.5/22 |
| Gross power | kw | 24/27.5 | 24/27.5 |
| Outline dimension | mm | 6200*4350*3600 | 6200*4100*3600 |
| X axis transmission structure | / | Walking wheel | Linear guide |
| Y axis transmission structure | / | Single Y aixs drive | dual Yaxis drive |
| Water consumption | m³/h | 12 | 12 |
