Infrared Bridge Machine for Processing Grainte Marble Stone Cutting Machine Manufacturer

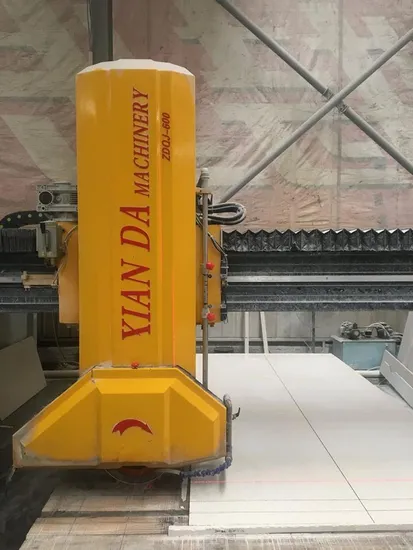

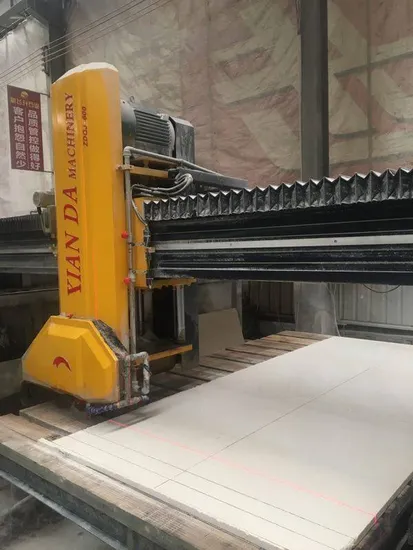

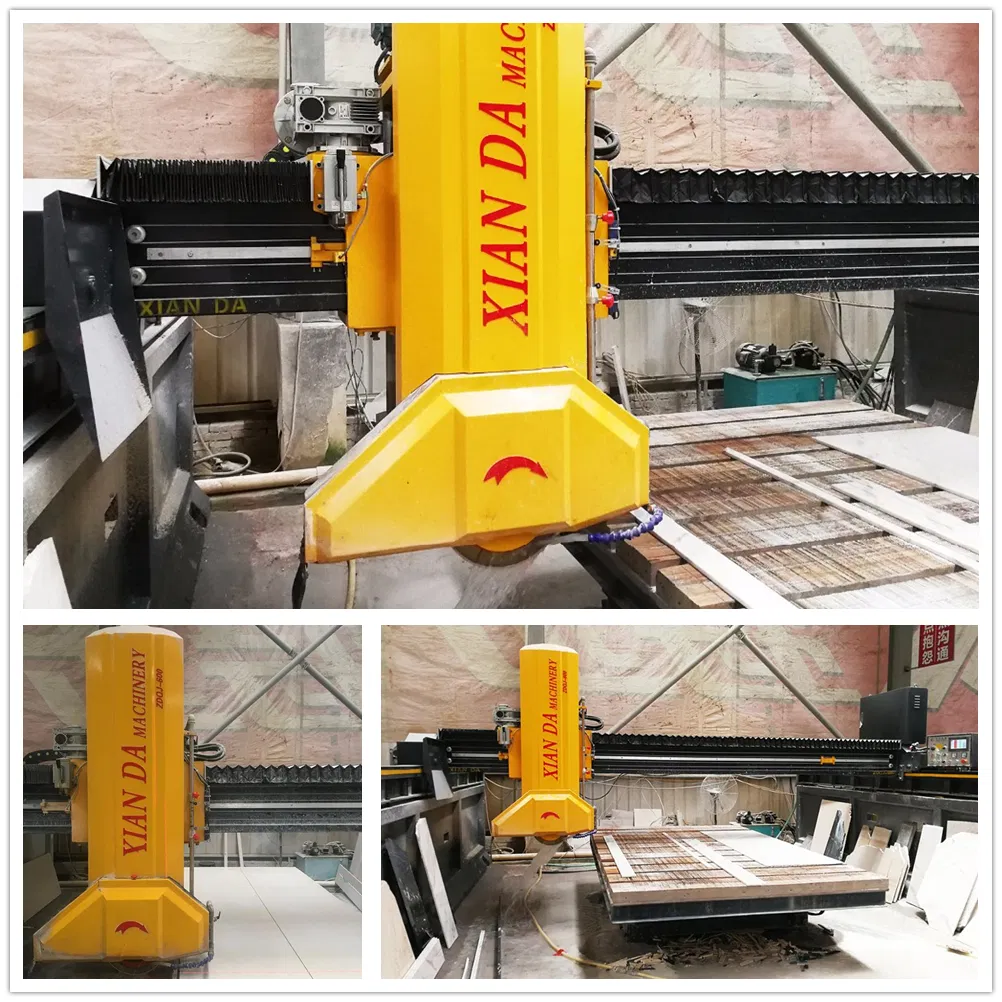

Detailed Photos
Product Description
This machine is controlled by microcomputer, its worktable can be 909360 rotating. Special structure for the guide pulleyand side beam makes its cutting high accuracy, high stability, high efficiency. lt’s suitable for processing the marble&granite with high value.
Product Parameters
|
Parameter
|
Unit
|
ZDQJ-450
|
ZDQJ-600
|
ZDQJ-800
|
|
Blade Diameter
|
mm | φ300-φ450 |
φ350-φ600
|
φ500-φ800
|
|
Max Processing Size
|
mm |
3200*2000*100
|
3200*2000*170
|
3200*2000*270
|
| Trolley Size | mm | 3200*2000 |
3200*2000
|
3200*2000
|
|
Worktable Tilting Angle
|
°
|
0-85° |
0-85°
|
0-85°
|
|
Worktable Rotation Angle
|
°
|
0-90°/0-360° (optional) |
0-90°/0-360° (optional)
|
0-90°/0-360° (optional)
|
|
Main Motor
|
kw |
15
|
18.5
|
22
|
|
Gross Power
|
kw |
20.5
|
24
|
27.5
|
|
Water Consumption
|
m³/h |
3
|
3
|
3
|
|
Outline Dimension
|
mm |
5850*4700*2700
|
5850*4700*3000
|
5850*4700*3450
|
|
Gross Weight
|
kg | 5500 |
5750
|
6000
|
