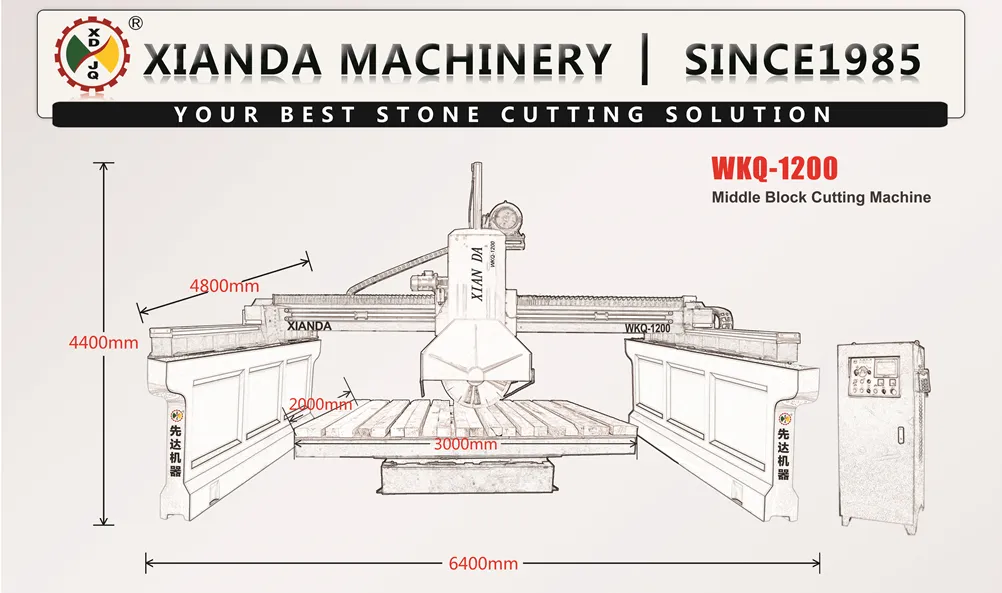

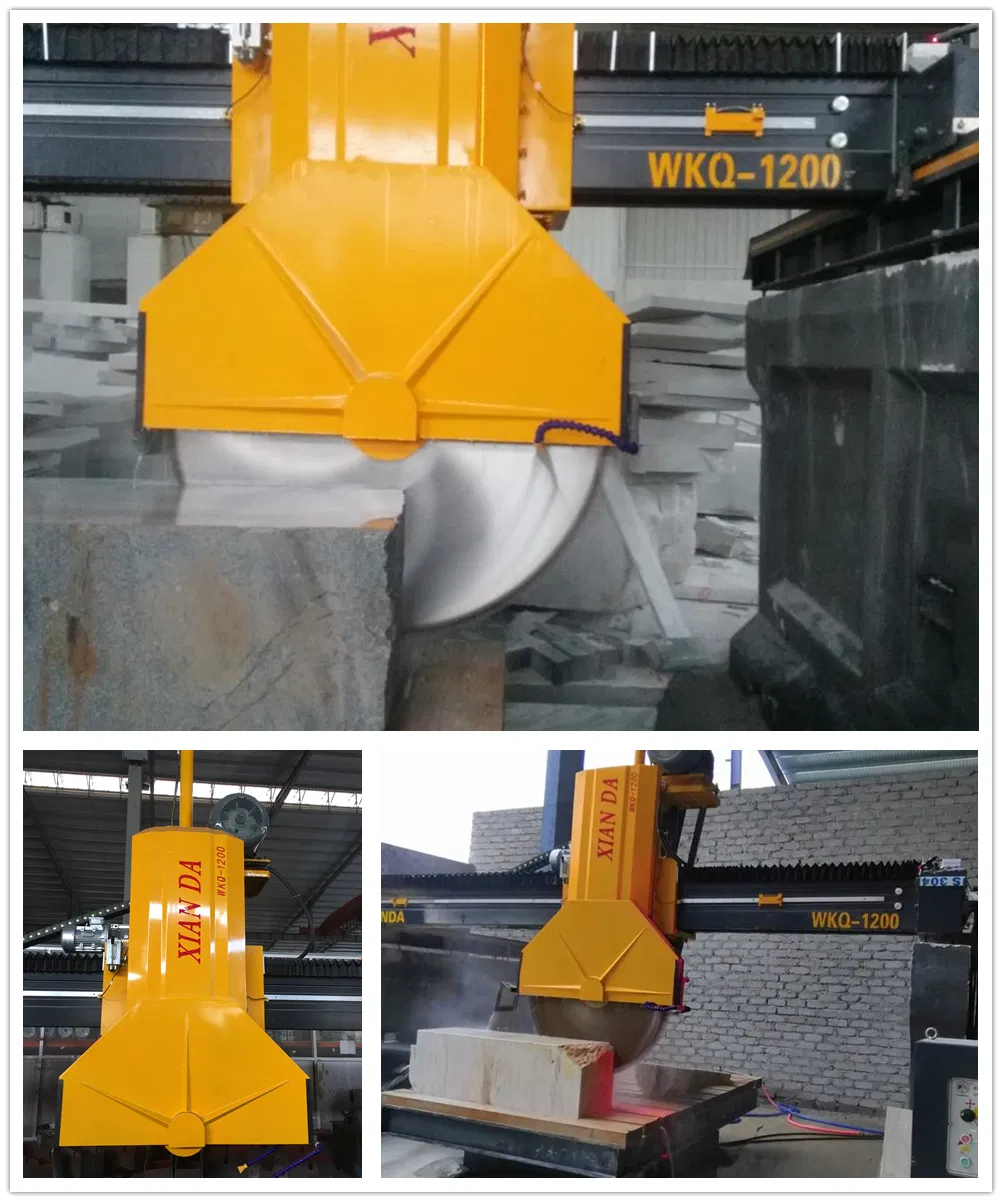

Middle Block Cutting Machine for Thick Slabs & Paving Stones WKQ-1200
This machine is with single-cylinder sliding plate structure , it can adjust the wear space, lift up and down speed fast andstable. It’s suitable for cutting thick slabs, and paving stones.
Technical Parameter
| Parameter |
Unit |
WKQ-1200 |
| Blade Diameter |
mm |
φ700-φ1200 |
| Max Lifting Travel |
mm |
760 |
| Trolley Size |
mm |
3000*2000 |
| Worktable Rotating Degree |
° |
0-90 |
| Water Consumption |
m³/h |
4 |
| Main Motor |
kw |
22 |
| Gross Power |
kw |
29 |
| Outline Dimension |
mm |
6200*4800*4400 |
| Gross Weight |
kg |
6800 |
Model NO.WKQ-1200
TypeBridge Saw Cutting Machine
UsageGranite, Marble
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machine
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlSGS;IAF
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Blade DiameterΦ700-Φ1200
Max Lifting Travel760mm
Trolley Size3000*2000mm
Worktable Rotating Degree0-90°
Outline Dimension6200*4800*4400mm
Main Motor22kw
Gross Power29kw
Water Consumption4m3/H
Gross Weight6800
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification6200*4800*4400mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
