Product Description

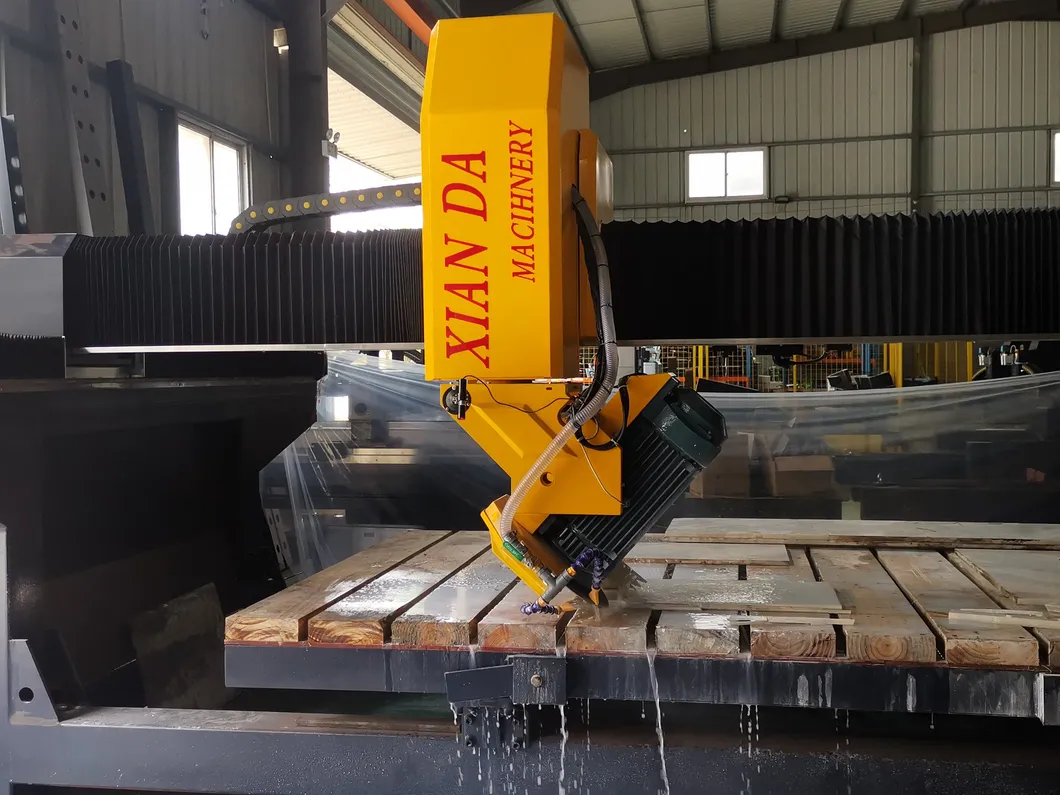

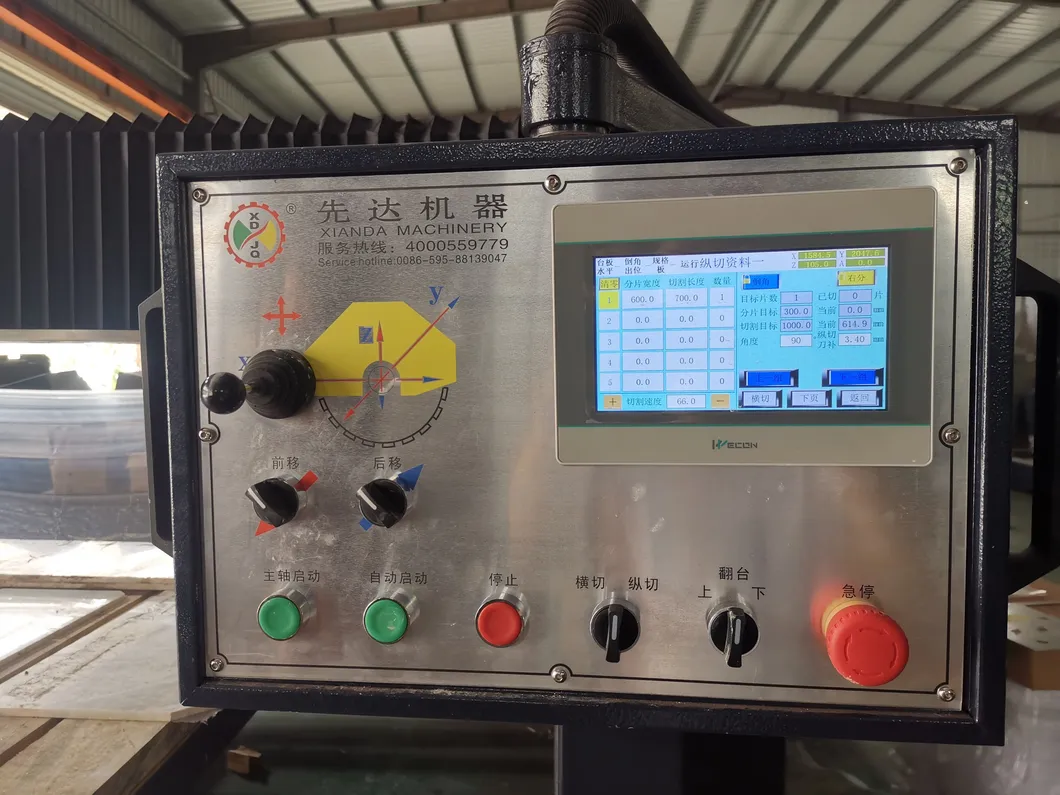

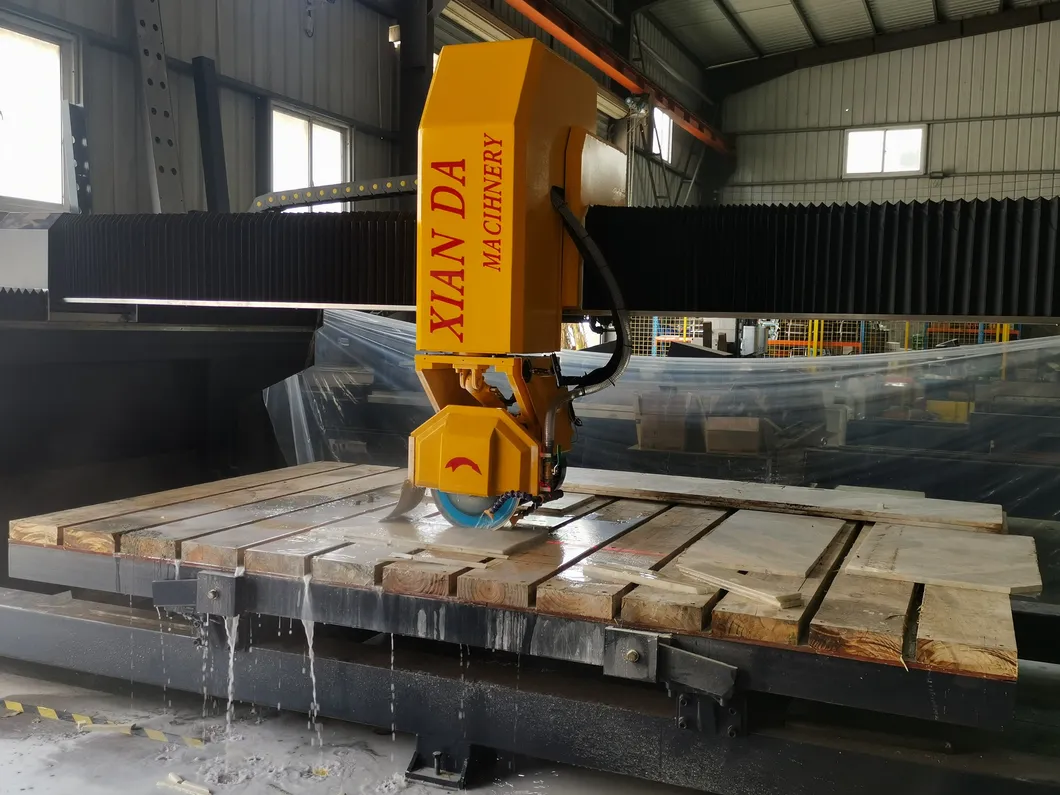

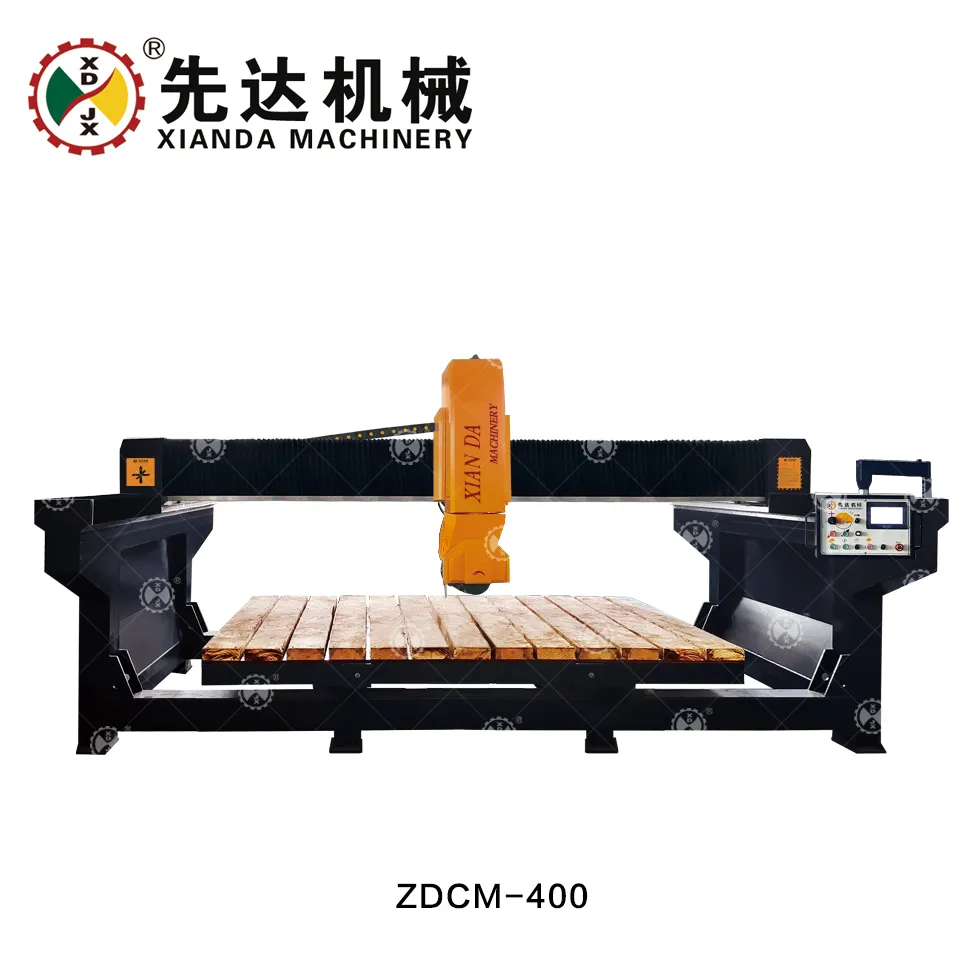

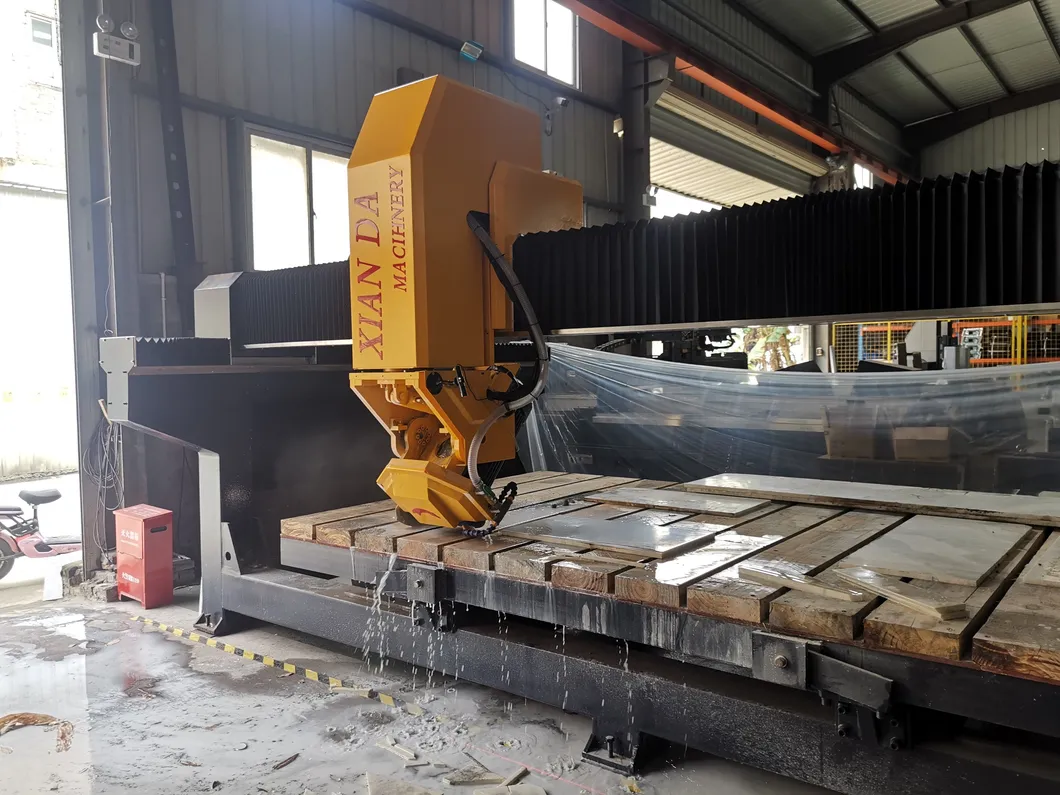

Fujian Xianda ZDCM-400 , adopts Microcomputer system , easy to operate ; Intergrate structure , easy to install , The frame of the machine body is processed and formed by CNC gantry milling center at one time,using high-precision linear guide sliders,grinding-grade ball screws , and high-end servo systems.It greatly improves the stability , processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large-scale plate processing with high presicion requirements and high value.
Technical Parameter
| Parameter | Unit | ZDCM-400 |
| Blade diameter | mm | 300-400 |
| Max processing size | mm | 3200*2000*80 |
| Dimension of worktable | mm | 3200*2000 |
| Main motor | kw | 15 |
| Outline dimension | mm | 5000*3100*2600 |
| Water consumption | m3/h | 3 |
Xianda machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
Key words: stone cutting machine, wire saw machine, stone profiling.
