Fujian Xianda ZDCM-400 , adopts Microcomputer system , easy to operate ; Intergrate structure , easy to install , The frame of the machine body is processed and formed by CNC gantry milling center at one time,using high-precision linear guide sliders,grinding-grade ball screws , and high-end servo systems.It greatly improves the stability , processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large-scale plate processing with high presicion requirements and high value.
Product Parameters
| Parameter | Unit | ZDCM-400-A | ZDCM-400-B |
| Control system type | / | PLC | PLC |
| Blade diameter | mm | Φ300-Φ400 | Φ300-Φ400 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Max processing size | mm | 3200*2000*80 | 3200*2000*80 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| cutting head rotation degree | ° | 0-90° | 0-360° |
| cutting head rotation control mode | / | stepper motor control | servo motor control |
| cutting head chamfer rotating degree | ° | 0-45° | 0-45° |
| Main motor power | kw | 15 | 18.5 |
| Water consumption | m³/h | 3 | 3 |
| Outline dimension | mm | 5000*3100*2600 | 5000*3100*2600 |

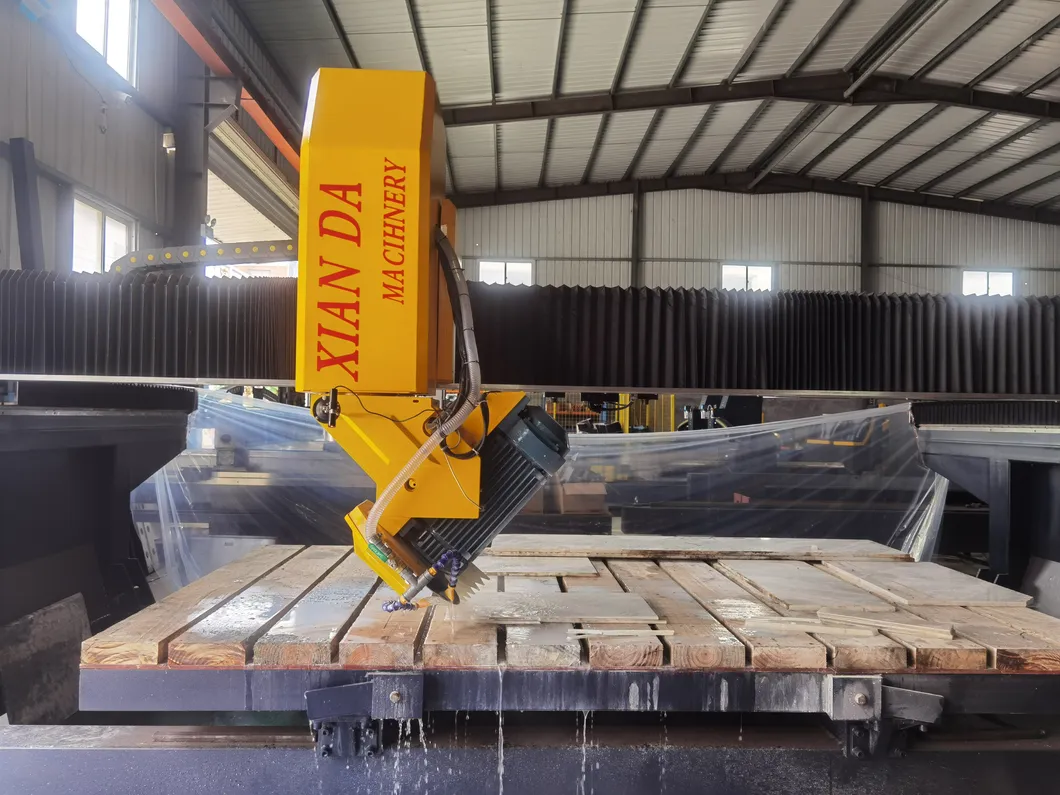

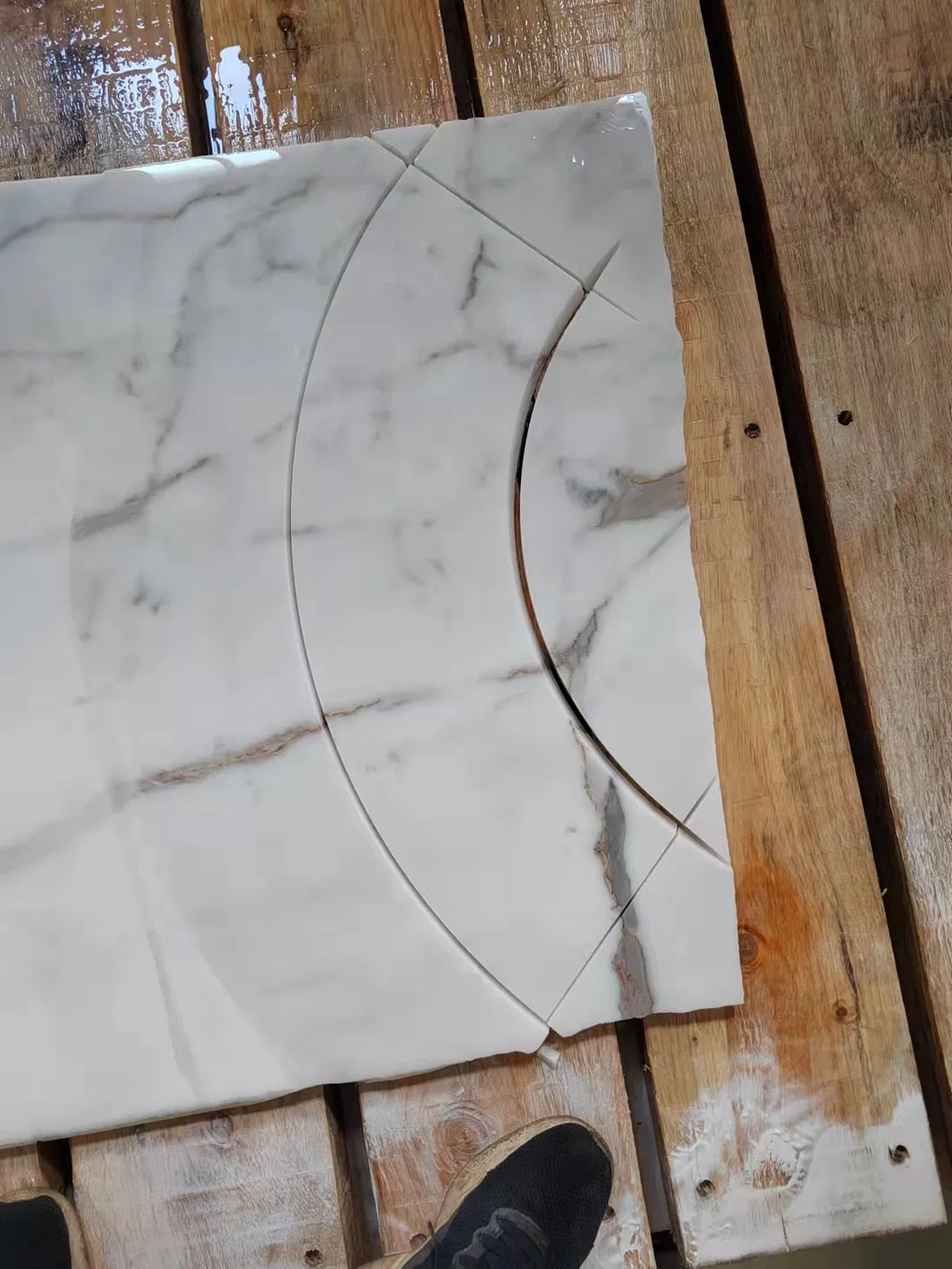

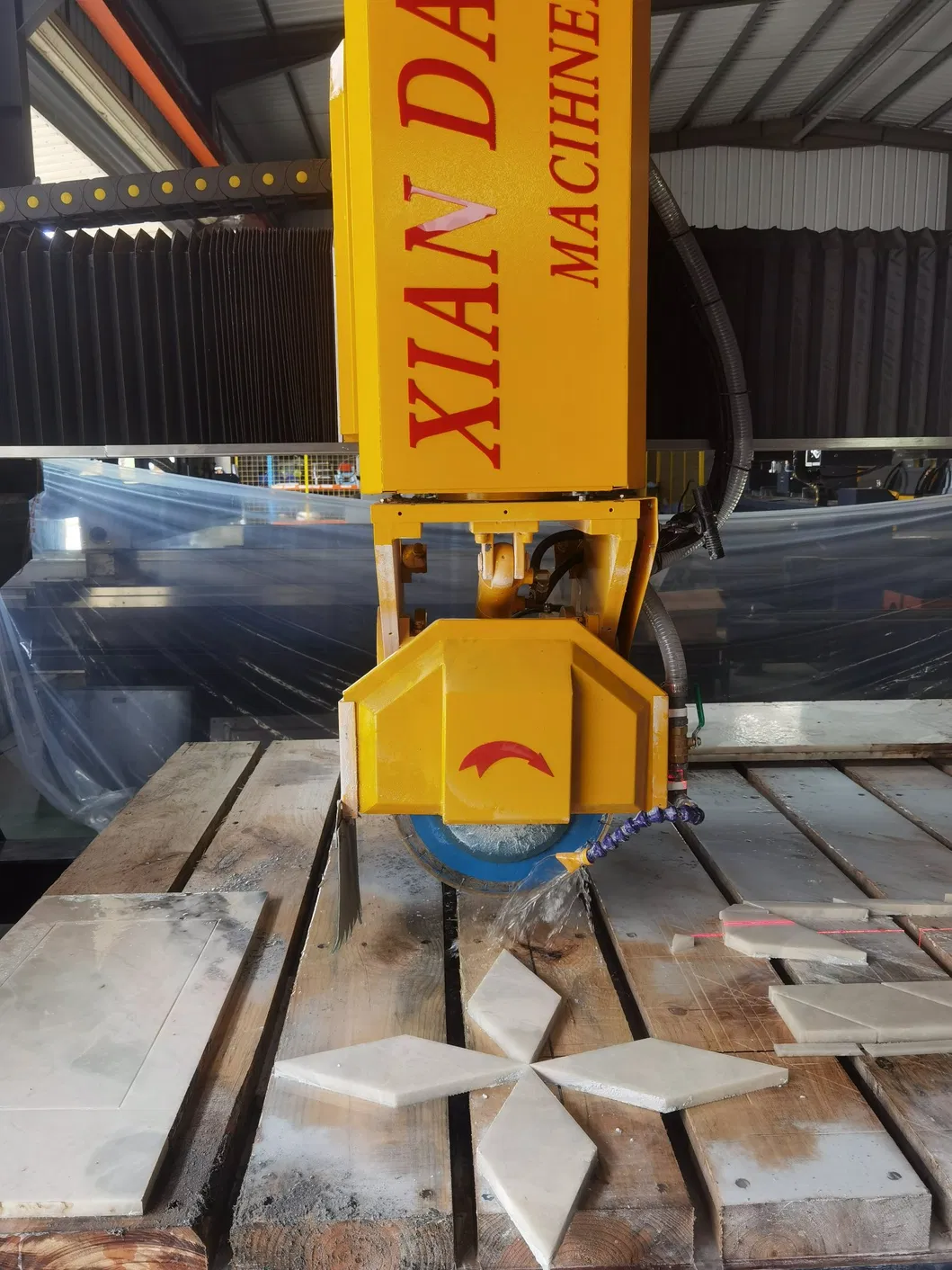

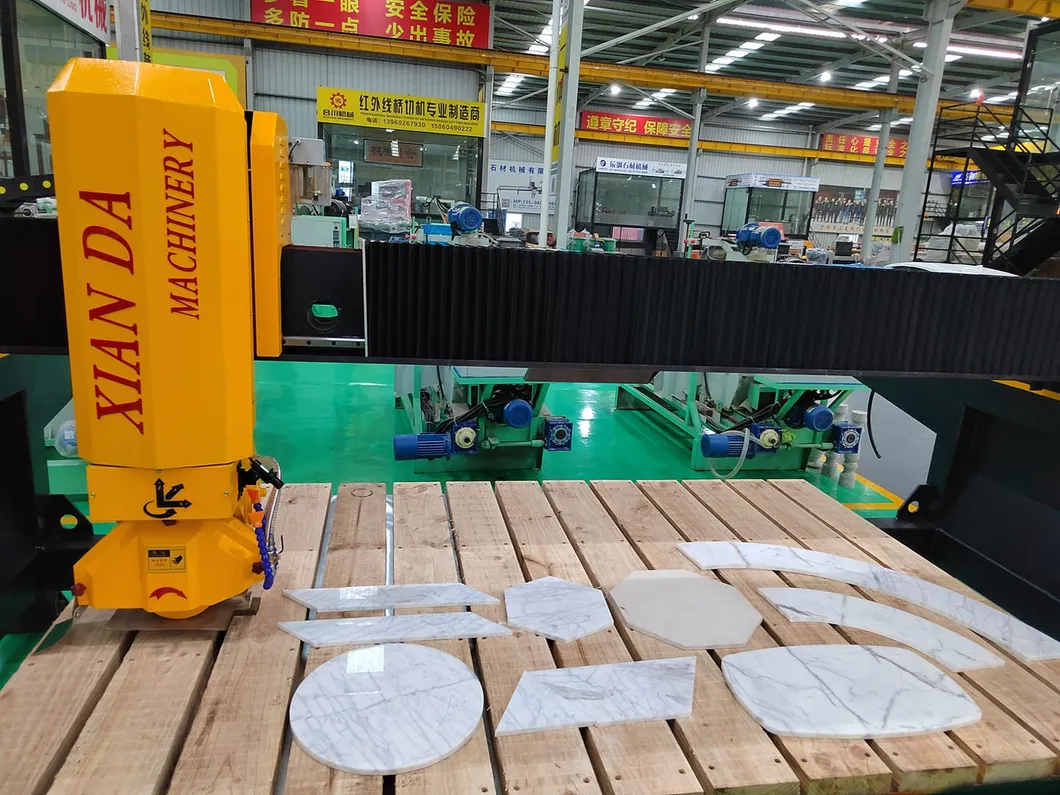

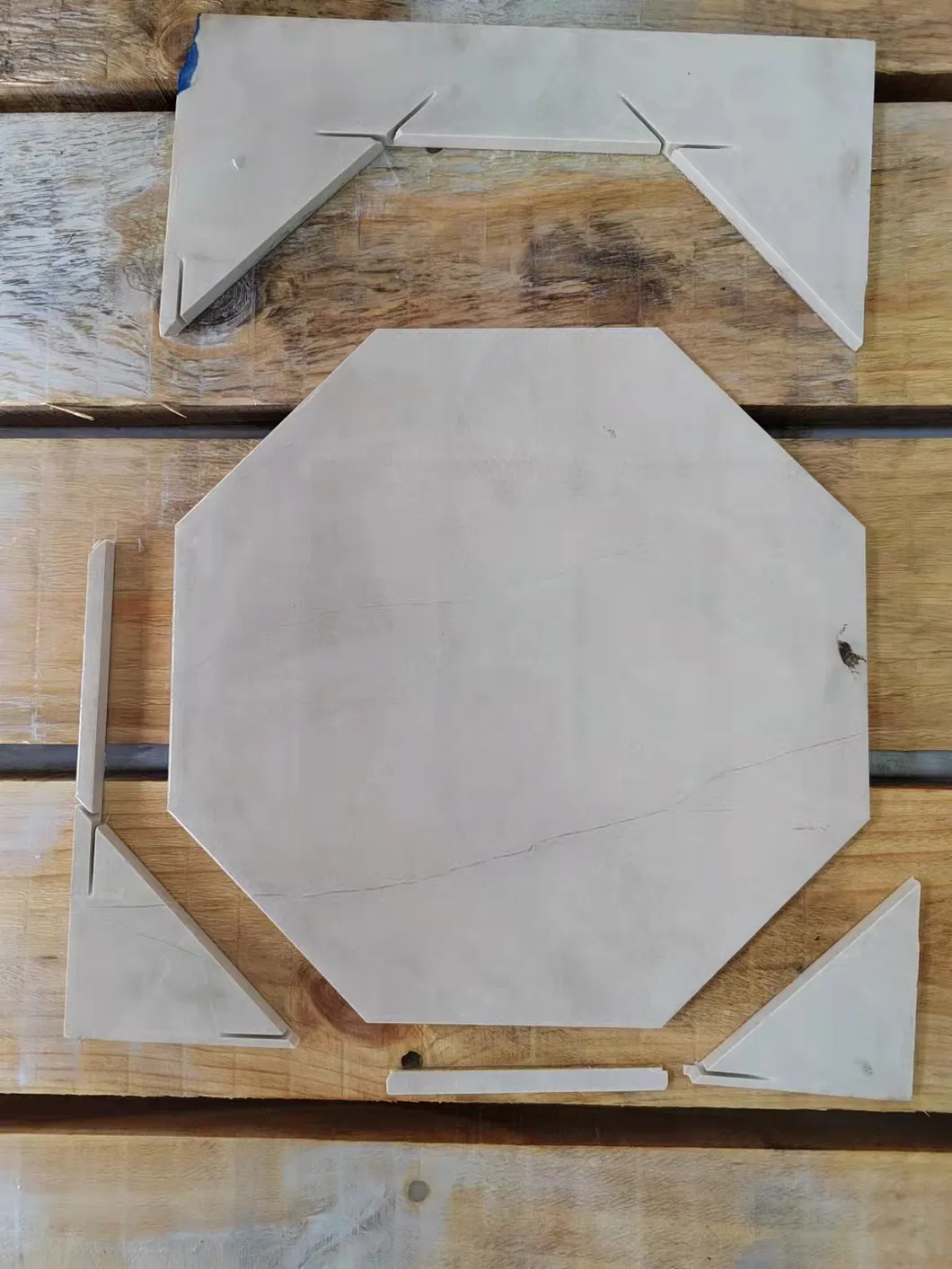

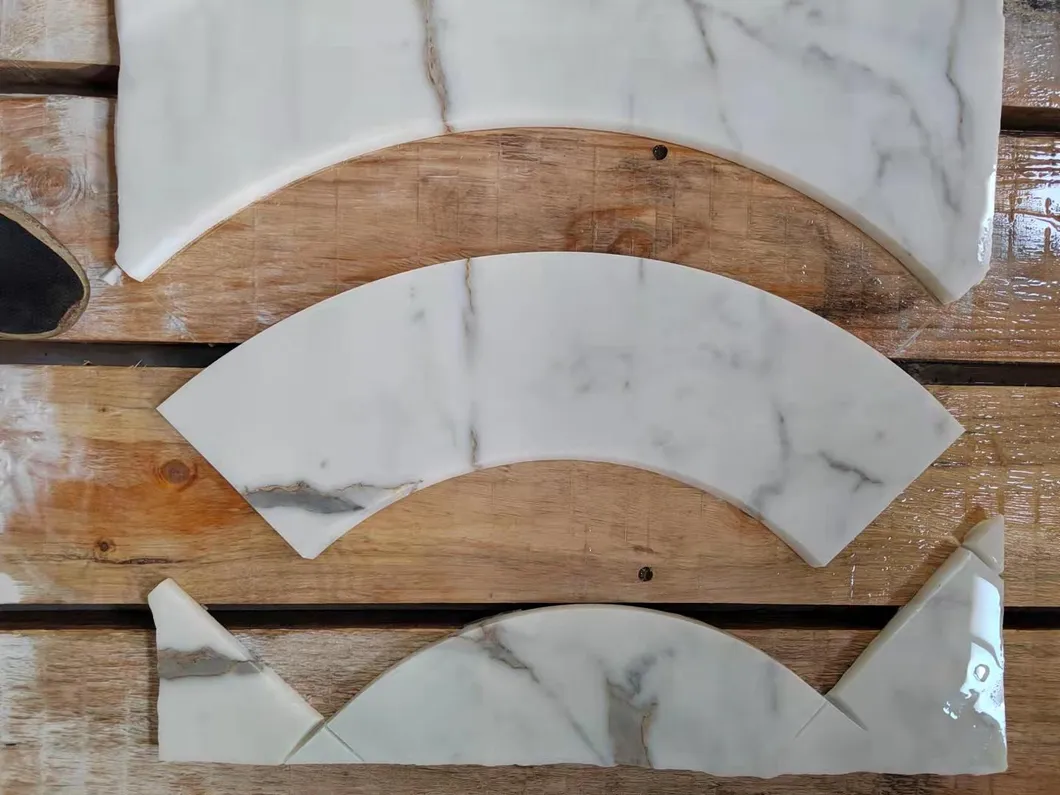

Detailed Photos
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
