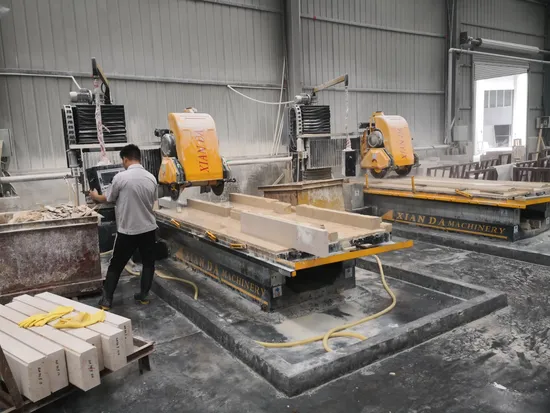

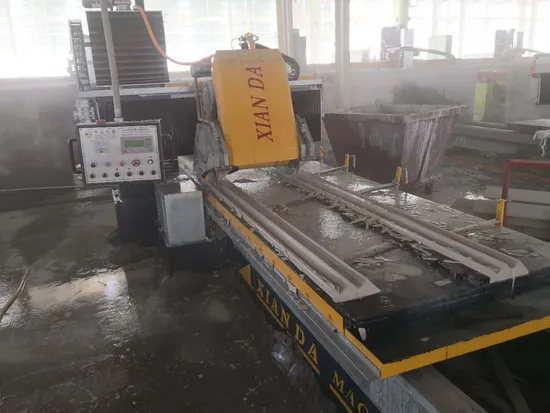

PLC/CNC Linear Profiling Machine for Cutting Square Baluster
This machine adopts PLC/CNC system with double blades, it’s suitable for profiling the linear, also it can cut the square balusters. With extra rotating table, it can cut the curve linear. Easy operation makes it popular especially for new operators.
Technical Parameter
| Parameter |
Unit |
DNFX-1300 |
CNFX-1400 |
| Blade Diameter |
mm |
φ350-φ600 |
φ350-φ600 |
| Max Lifting Travel of Cutting Frame |
mm |
600 |
600 |
| Trolley Size |
mm |
1300*3000 |
1400*3500 |
| Main Motor |
kw |
15 |
15 |
| Gross Power |
kw |
18.5 |
18.5 |

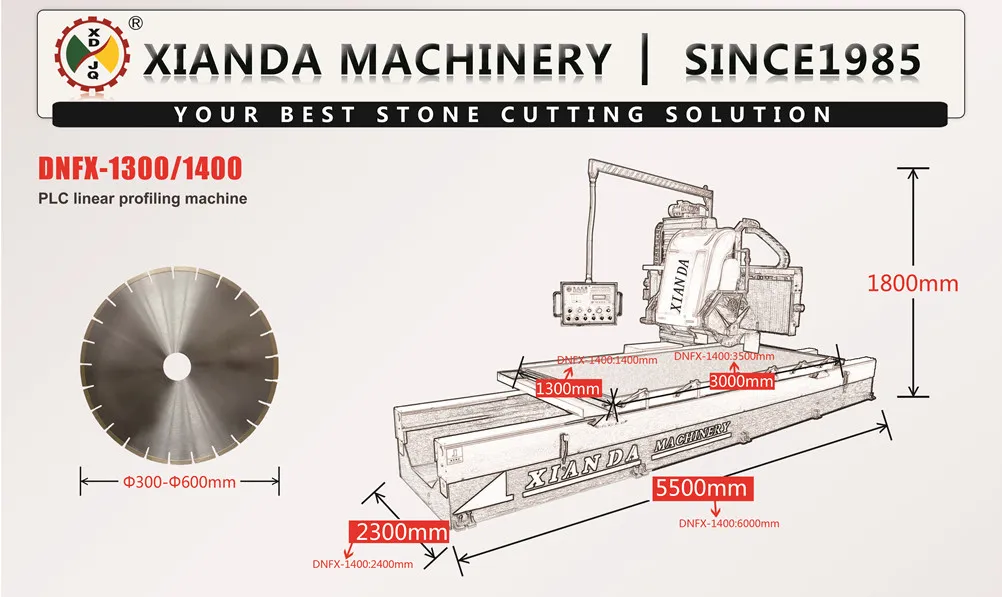

| Outline Dimension |
mm |
5500*2300*2300 |
6000*2400*2300 |
| Gross Weight |
kg |
4000 |
4500 |
| Water Consumption |
m³/h |
6 |
6 |
Model NO.DNFX-1300/1400 CNFX-1300/1400
TypeProfiling Cutting Machine
UsageGranite, Marble
ApplicationConstruction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE
Max Cutting DiamensionΦ350-600mm
Max Lifting Travel of Cutting Frame600mm
Dimension of Worktable1300*3000mm;1400*3500mm
Main Motor15kw
Gross Motor18.5kw
Outline Dimension5500*2300*2300mm; 6000*2400*2300mm
Water Consumption6m3/H
Gross Weight4000kg;4500kg

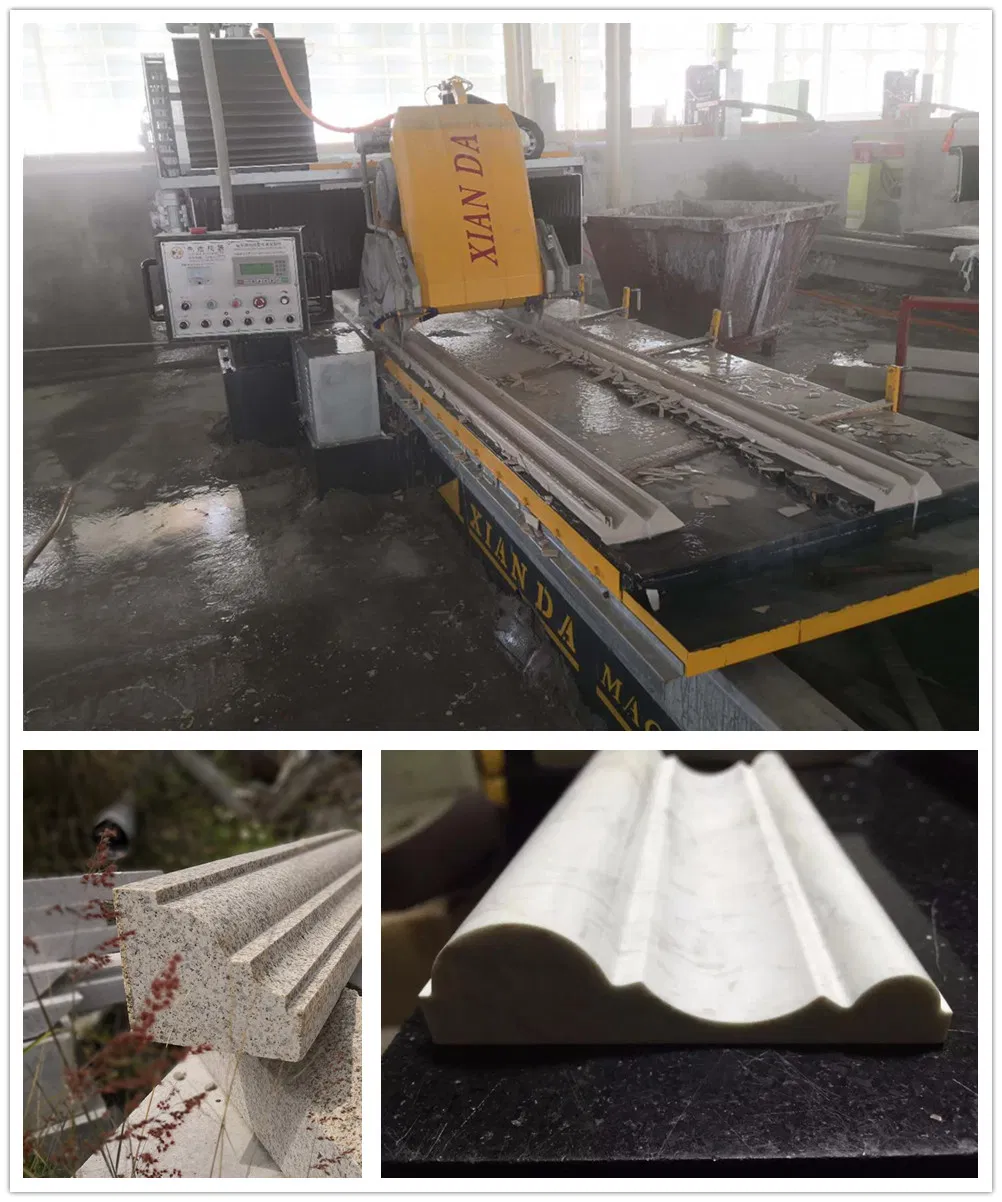

Use forCutting Profiling Lines,Column,Column Slab
Sagment QtyTwo
Transport PackageLoad in a 20 Feet Container
Specification5500*2300*2300mm; 6000*2400*2300mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
