Product Description

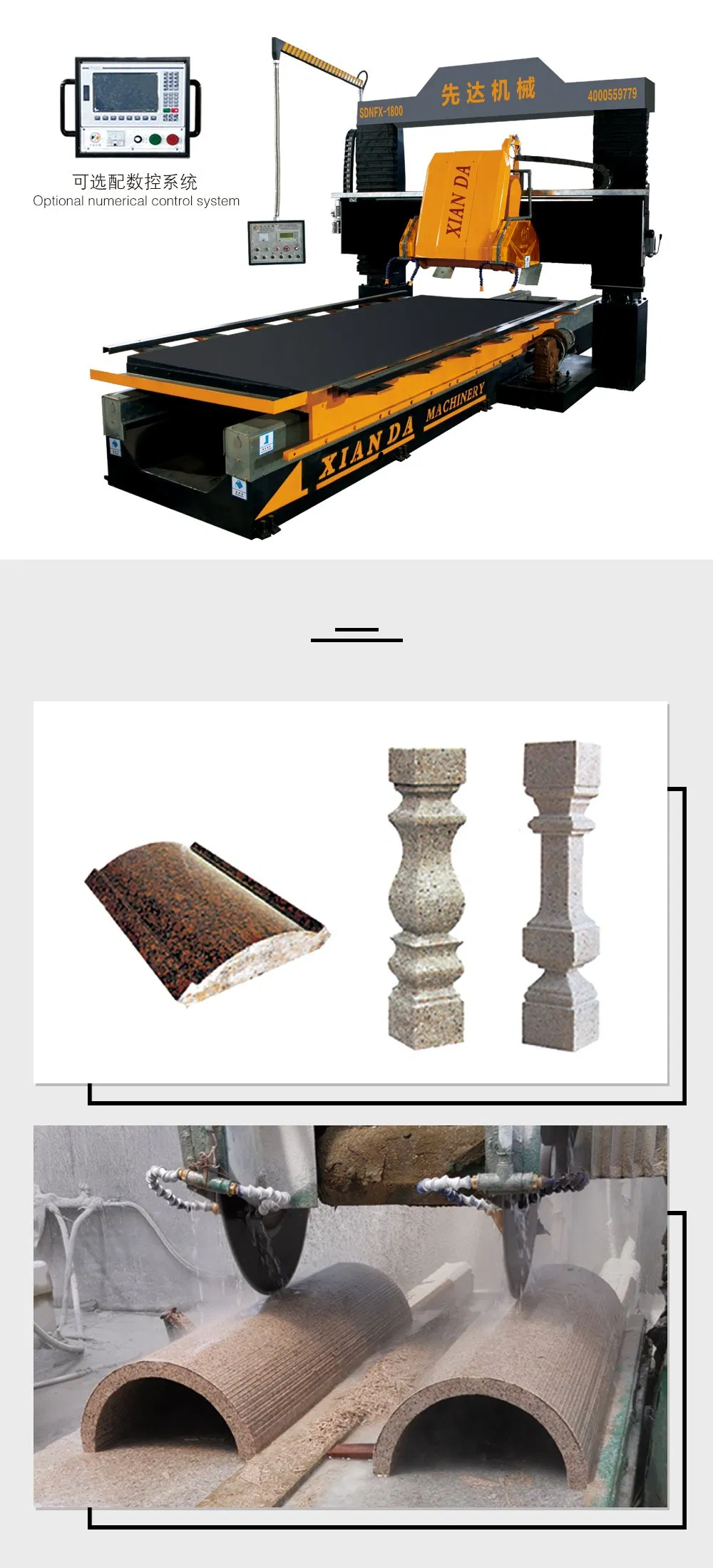

SDNFX-1800 gantry lifting type stone profile cutting machine adopts PLC control, cutting with double saw blades, which is specially used for cutting profiling lines, granite&marble blocks,roman column, big column slab and so on for the heterotype stones.
Technical Parameter
| Parameter | Unit | SDNFX-1800 | SCNFX-1800 |
| Blade diameter | mm | 300-600 | 300-600 |
| Max lifting travel of cutting frame | mm | 1000 | 1000 |
| Worktable dimension | mm | 3500*1800 | 3500*1800 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 20 | 20 |
| Outline dimension | mm | 6000*3600*3300 | 6000*3600*3300 |
| Gross weight | kg | 7000 | 7000 |
| Water consumption | m3/h | 6 | 6 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
