PLC Diamond Wire Saw Granite Marble Stone Cutting Block Dividing Machine RSM-3500
This machine adopts PLC control, lifting adopt Synchronous screw drive transmission structure, cutting stable and high efficiency during processing, it is the ideal equipment for marble and granite slicing. This machine is good quality with high processing precision.

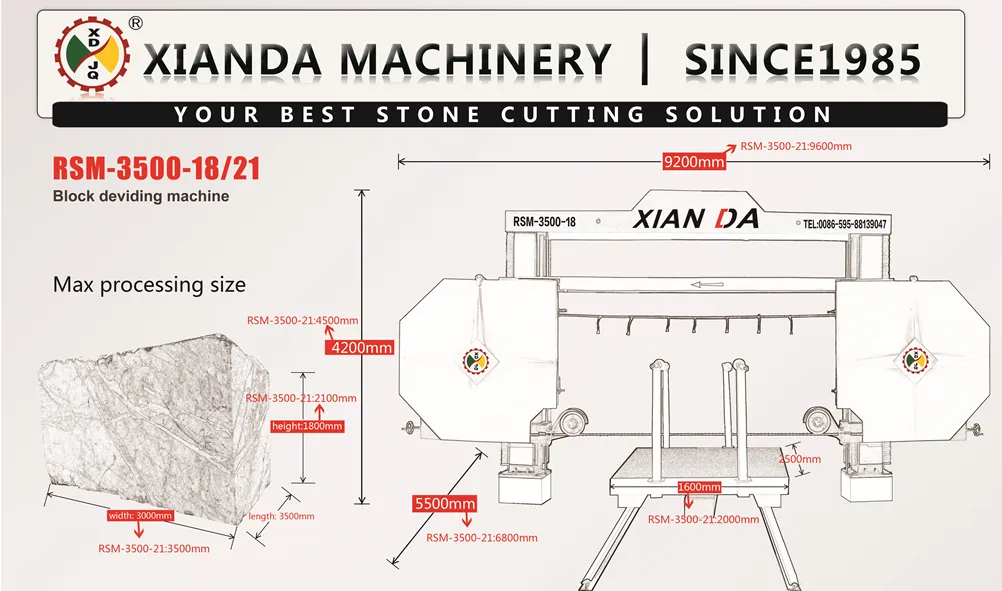

Technical Parameter
| Parameter |
Unit |
RSM-3500-18 |
RSM-3500-21 |
| Max processing size |
mm |
3500x3000x1800 |
3500x3500x2100 |
| Trolley Size |
mm |
2000×2500 |
2000×2500 |
| Main Motor |
kw |
11 |
15 |
| Outline Dimension |
mm |
9200x5500x4200 |
9600x6800x4500 |
| Gross Weight |
kg |
7000 |
9000 |
| Water Consumption |
m3/h |
6 |
6 |
| Wire Speed |
m/s |
0~40 |
0~40 |
CustomizationAvailable
After-sales ServiceOne Year for Spare Part
Warranty12 Months
Model NO.RSM-3500-18/21
TypeStone Block Trimming Machine
UsageGranite, Marble
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Wire Length19.5m;20.6m
Max Processing Size3500X3000X1800mm;3500X3500X2100mm
Trolley Size2000X2500mm
Water Consumption6m3/H
Main Motor11kw;15kw
Weight7000kg;9000kg
Wire Speed0~40m/S
Outline Dimension9200*5500*4200;9600*6800*4500mm
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification9200*5500*4200; 9600*6800*4500mm
TrademarkXIANDA
OriginFujian, China
HS Code8464109000
Production Capacity1000 Sets Per Year
