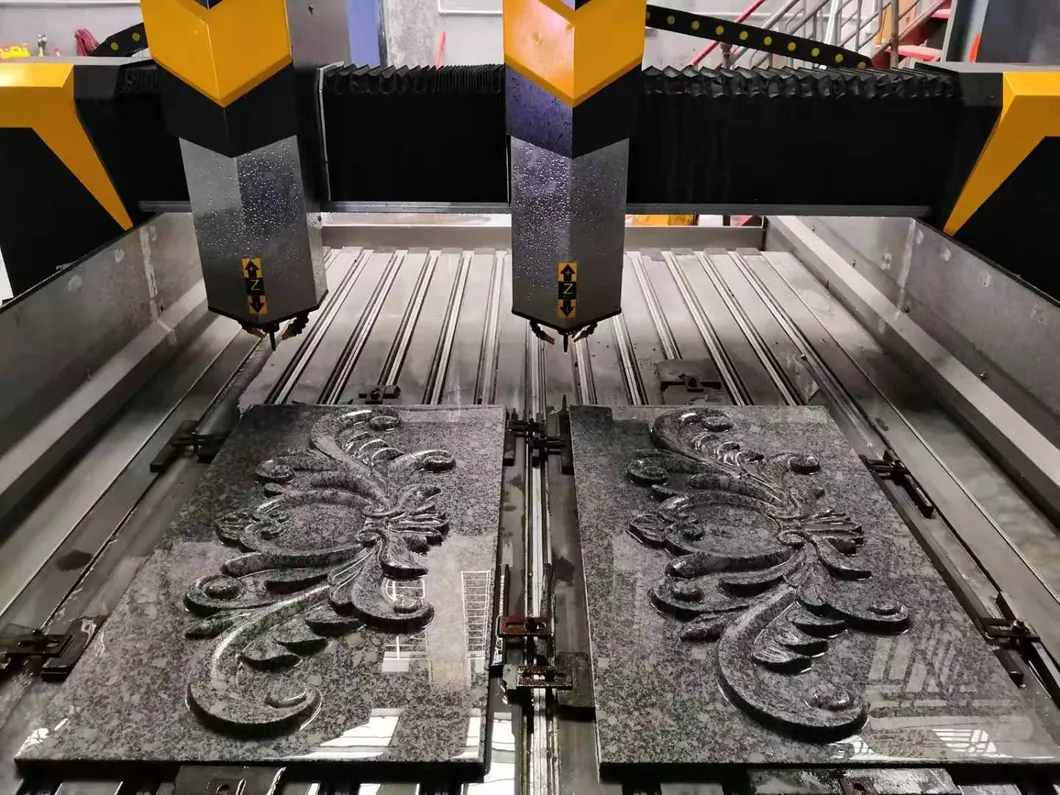

Marble Granite CNC STONE CARVING MACHINE
Application

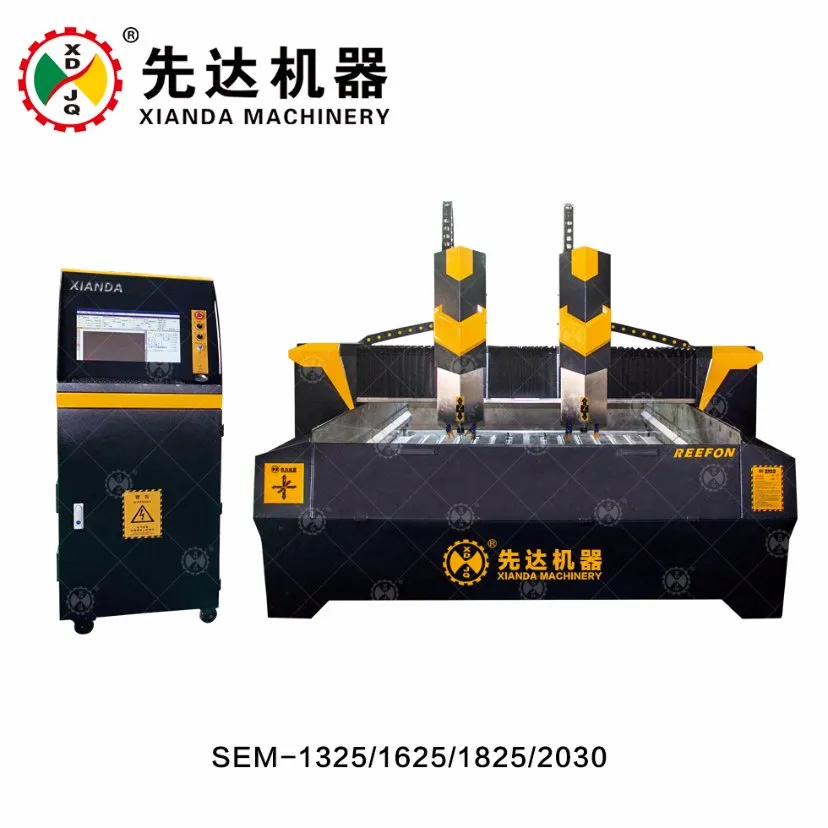

SEM-1325 the Machine adopts numerical control system, three-axis linage,double row four-row, constant power spindle motor, two -way tool cooling system, with stable running, high precision and high efficiency advantages, suitable for processing marble,granite, bluestone, Jade, agate, cooper plate and aluminum plate and other materials.
Technical Parameter
| Parameter | Unit | SEM-1325 SEM-1325-2D |
SEM-1625 SEM-1625-2D |
| Dimension of worktable | mm | 1300*2500 | 1600*2500 |
| Feed height | mm | ≤380 | ≤380 |
| Air Speed | m/min | 15 | 15 |
| Machining speed | m/min | 10 | 10 |
| Number of spindles | pcs | 1pcs 2pcs(2D) |
1pcs 2pcs(2D) |
| Spindle Power | kw | 5.5 | 5.5 |
| Outline dimension(L*W*H) | mm | 2300*3500*2200 | 2600*3500*2200 |
| Water consumption | M3/h | 1 | 1 |
Xianda machinery

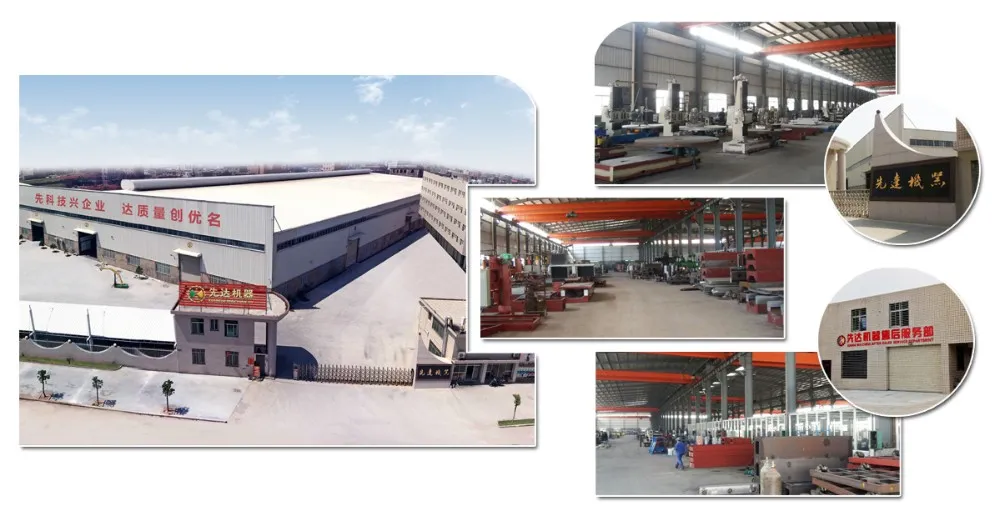

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
