Stone Dressing Machine Block 3D Marble 4 Axis Granite Diamond Wire Saw machine

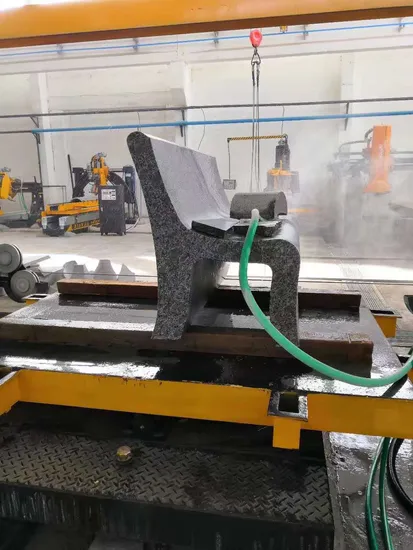

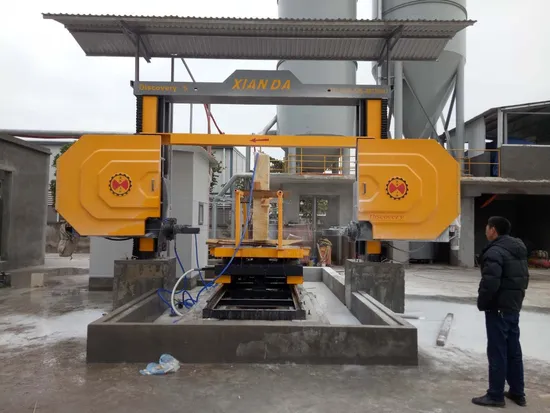

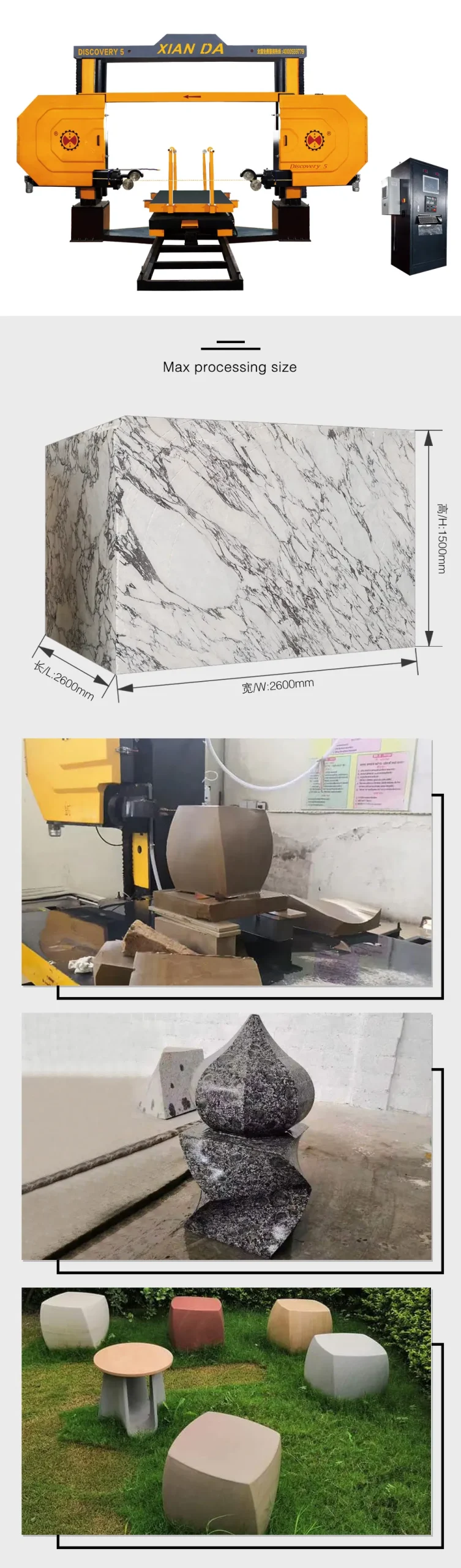

Detailed Photos
Discovery 5 adopts 5 axis CNC control system, it can process different size arc slabs, column, number, letter, Chinese words also different shapes of marble or granite.And it can also process 3D shapes, Main body with advanced and unique structure, makes its cutting with excellent precision, stability, efficiency etc advantages. It’s the ideal equipment for processing the special shapes stone.

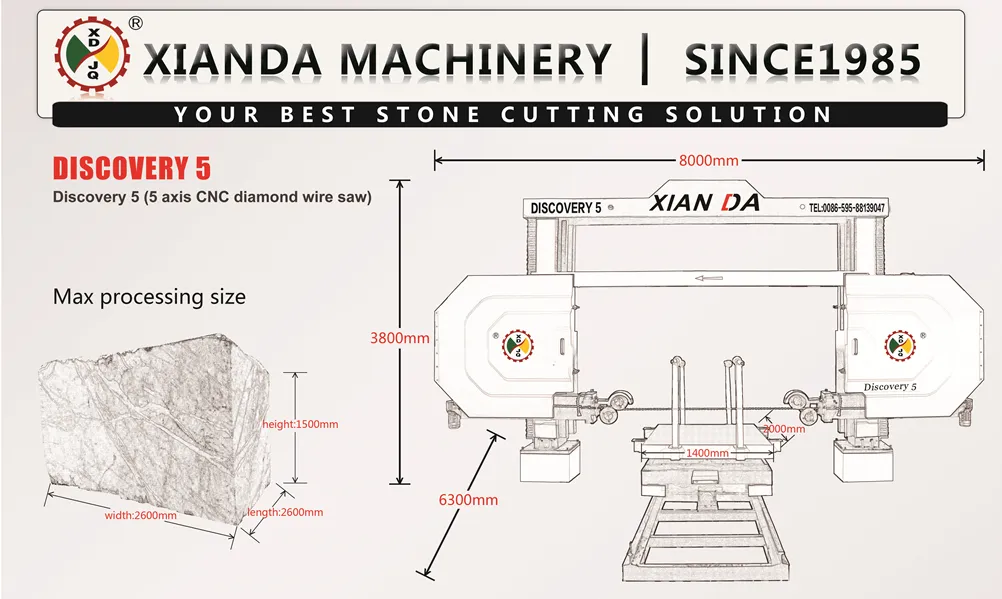

Product Parameters
Technical Parameter
| Parameter | Unit | Discovery 5 |
| Max Processing Size | mm | 2600*2600*1500 |
| Trolley Size | mm | 1400*2000 |
| Main Motor | kw | 11 |
| Wire Speed | m/s | 0~40 |
| Outline Dimension | mm | 8000*6500*4100 |
| Gross Weight | kg | 7500 |
| Water Consumption | m3/h | 4 |
