DNFX-1300/1400 Adopts computer profiling lines. It automatically track model of curve (straight) line through the fiber optic probe, automatically profiling through diamond circular saws to cut stone with curve (straight) line and craft products, uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. This machine adopts PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stabolity, easy-operation to suit for lines, arc-shaped lines, Roman column, etc.
Remark: CNC system are optional.
| Parameter | Unit | DNFX-1300 | DNFX-1400 |
| Blade diameter | mm | φ300-φ600 | φ300-φ600 |
| Max lifting travel of cutting frame | mm | 700 | 700 |
| Worktable dimension | mm | 3000×1300 | 3500×1400 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 18 | 18 |
| Outline dimension | mm | 5500x2300x1800 | 6000x2400x1800 |
| Gross weight | kg | 5000 | 5500 |
| Water consumption | m³/h | 6 | 6 |

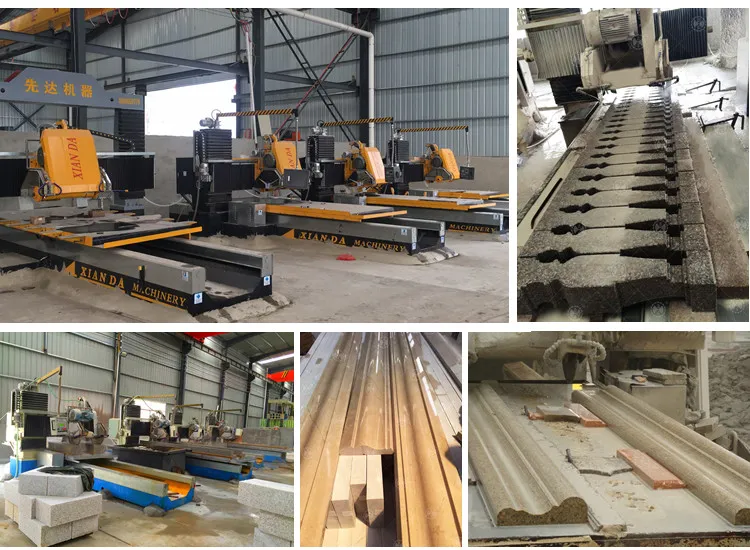

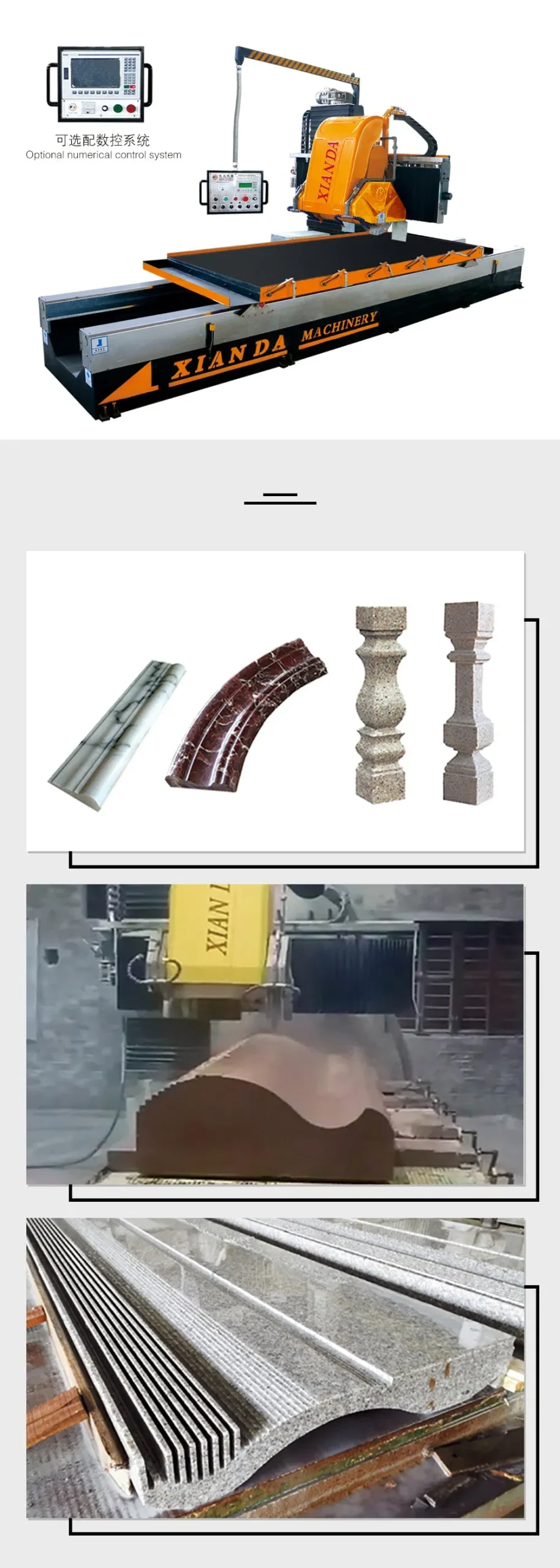

Product Show
