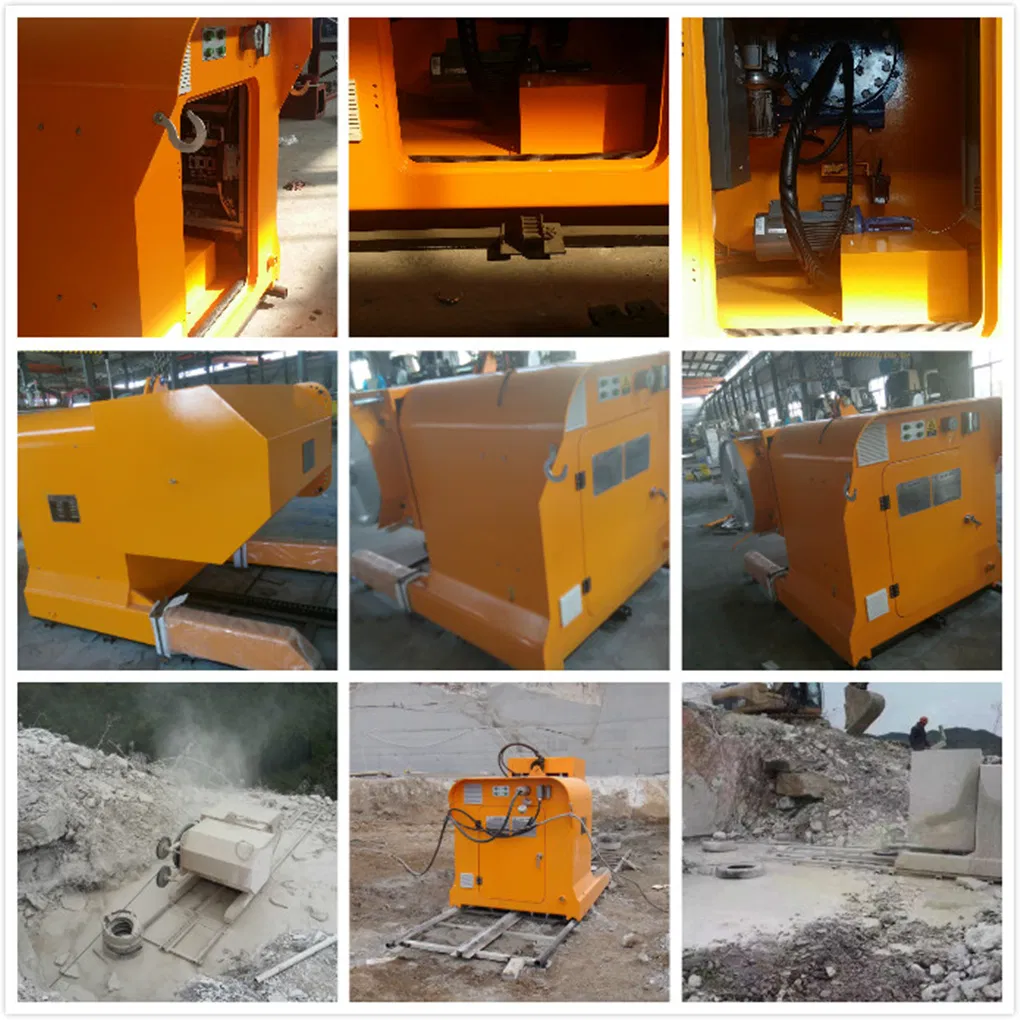

PLC Granite Marble Quarry Stone Diamond Wire Saw Cutting Machine QWS-37-75
This machine adopts double inverter stepless speed regulation, while cutting, it can achieve constant tension wire cutting process and automatic control, automatic control system can be realized according to the speed of walking machine change science to adjust the load, which is always in the best working state of diamond wire.
Technical Parameter
| Parameter | Unit | QWS-37 | QWS-45 | QWS-55 | QWS-75 |
| Main Motor | kw | 37 | 45 | 55 | 75 |
| Wire Speed | m/s | 0-40 | |||
| Walking Speed | m/h | 0-30 | 0-160 | ||
| Adjustment Dimension | mm | 450 | 500 | ||
| Cutting Distance | mm | 1750 | 2030 | ||
| Rotation Angle | ° | 360 (electric) | |||

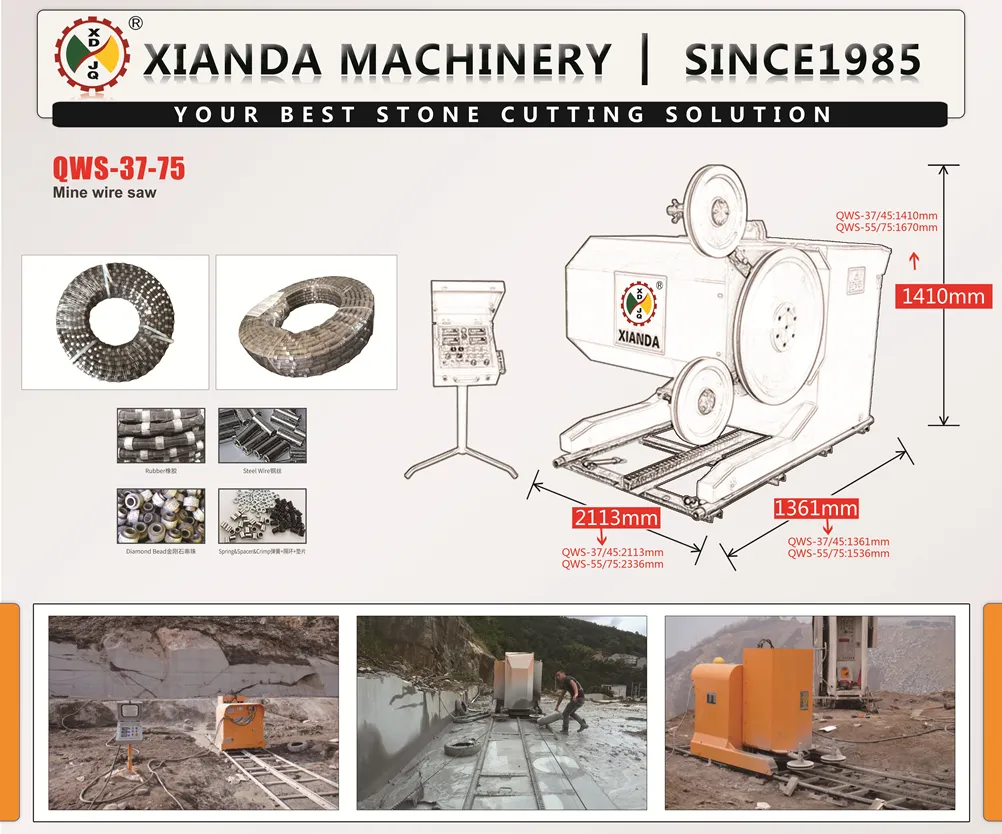

| Outline Dimension | mm | 2113*1361*1410 | 2336*1536*1670 | ||
| Max Wire Length | m | 60 | 80 | 100 | 120 |
| Gross Weight | t | 2 | 2.1 | 3 | 3.2 |
| Cutting Material | Cutting Speed | Wire Life (m²/m) |
| Reinforced Concrete | 2-3 | 2-3 |
| Granite Quarrying | 8-20 | 15-40 |
| Marble Quarrying | 7-20 | 30-60 |
| Granite Profiling | 0.8-2.5 | 7-15 |
| Marble Profiling | 1.5-4 | 30-70 |

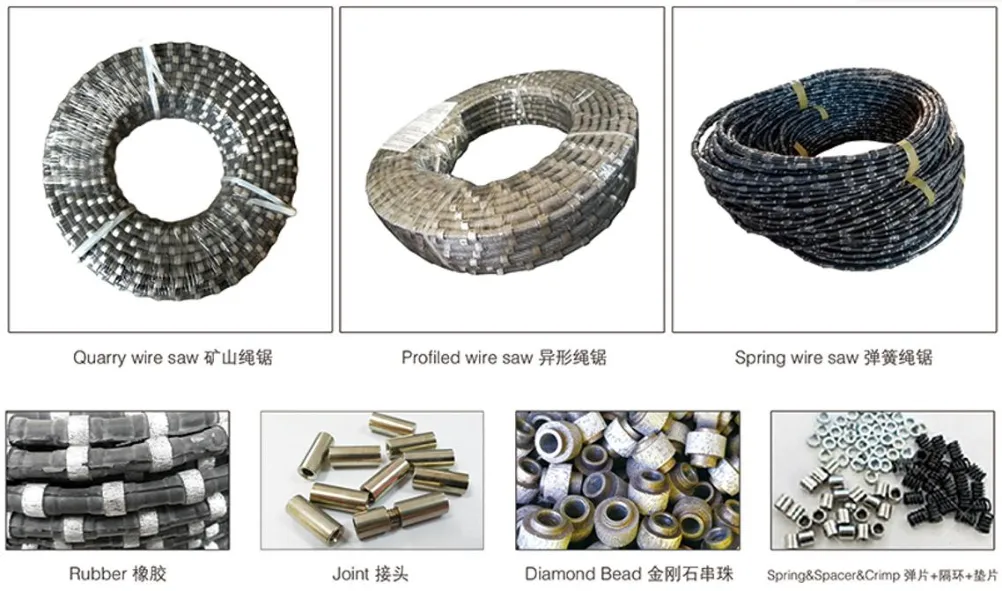

| Specification | Application | Fixing Methods | Beads/Meter |
| Φ11.5mm | Reinforced Concrete | Rubber | 40 |
| Φ11.5mm | Granite Quarrying | Rubber | 40 |
| Φ11.5mm | Marble Quarrying | Rubber&Spring | 40 |
| Φ11.5mm | Marble Quarrying | Spring | 28 |
| Φ11.0mm | Granite Block Quarrying | Plastic | 40 |
| Φ11.0mm | Marble Block Quarrying | Plastic | 40 |
| Φ8.8mm | Granite Profiling | Plastic | 37 |
| Φ8.8mm | Marble Profiling | Plastic | 32 |

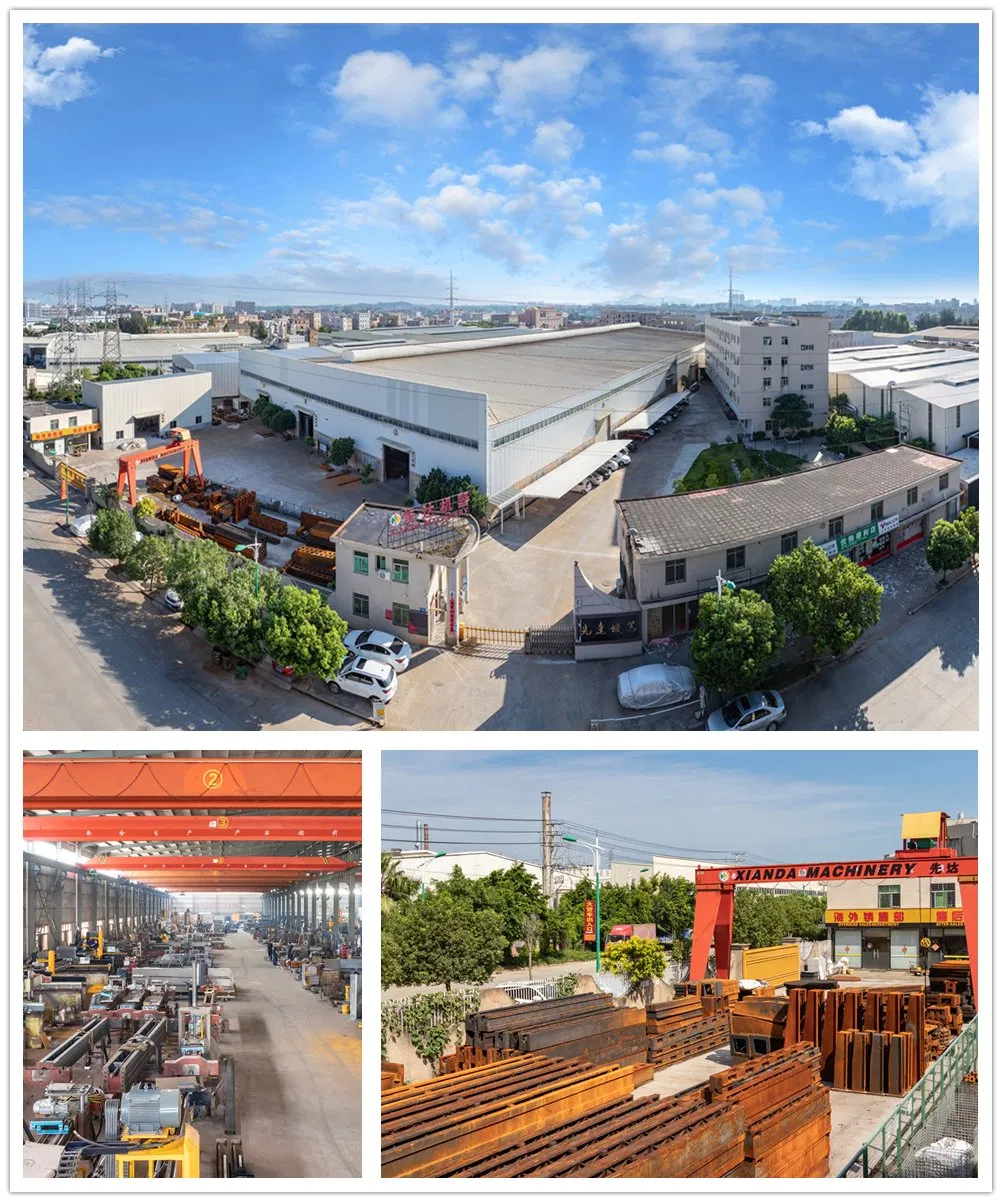

Factory Overviews
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
