DQCM-26-75/95-A/B
Product Description

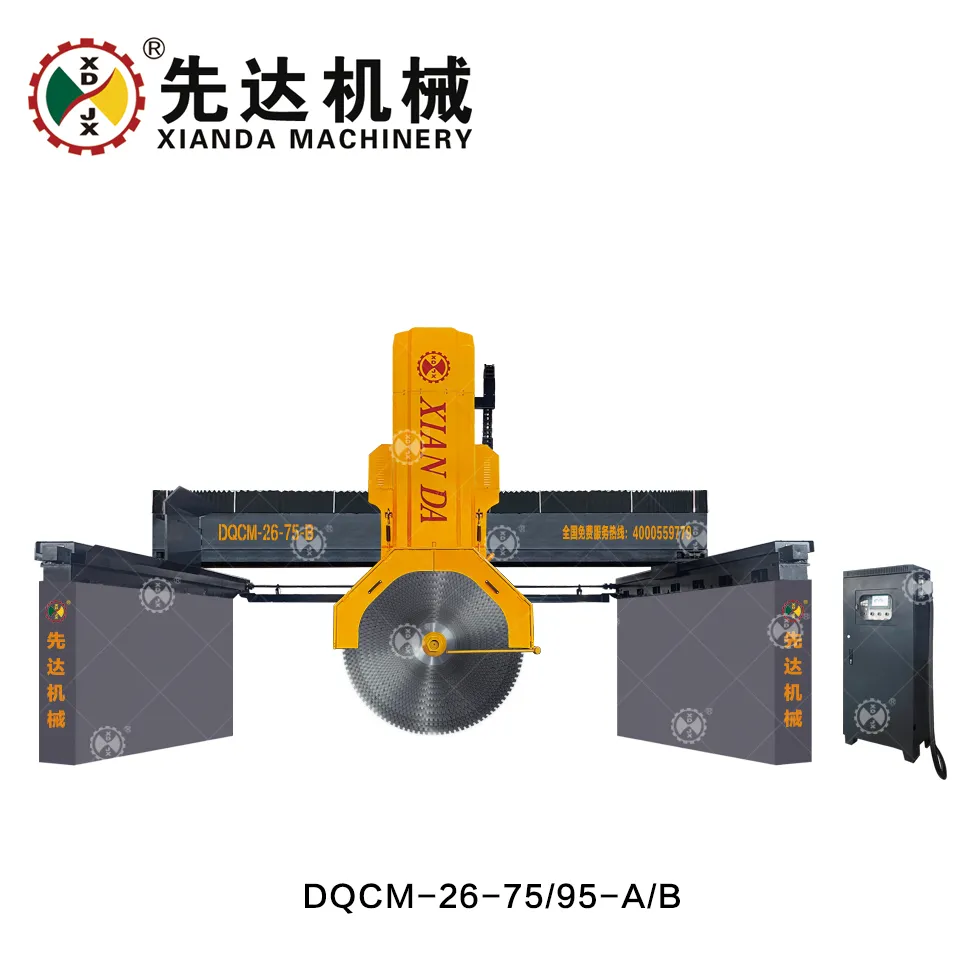

Fujian Xianda DQCM-26-75/95-A/B,Dual drive heavy duty block cutting machine , adopts our patented dual-drive mode (one pull and one push) for moving left and right ,and can adjust the moving speed according to the material ,and cooperate with the Dual V-track beam track ,so moving more stable; Lifting using hydraulic , with four guide pose made of 200mm solid round steel chrome-plated ;front and back adopt screw drive and double nut drive ,and cooperate with the oil-immersed sidebeam rail ,which is more wear -resis-tant ;adopts more longer and more heavy casting beams ,Cutting more stable .Main parts adopt imported materials ;The block can be placeed in the ground directly to save worktable and its maintenance costs ;Thus the whole machine is featured as high cutting efficiency ,high slicing precision ,flatness of plate after cutting ,high stability ,easy-operating to suit specially cutting granite block.

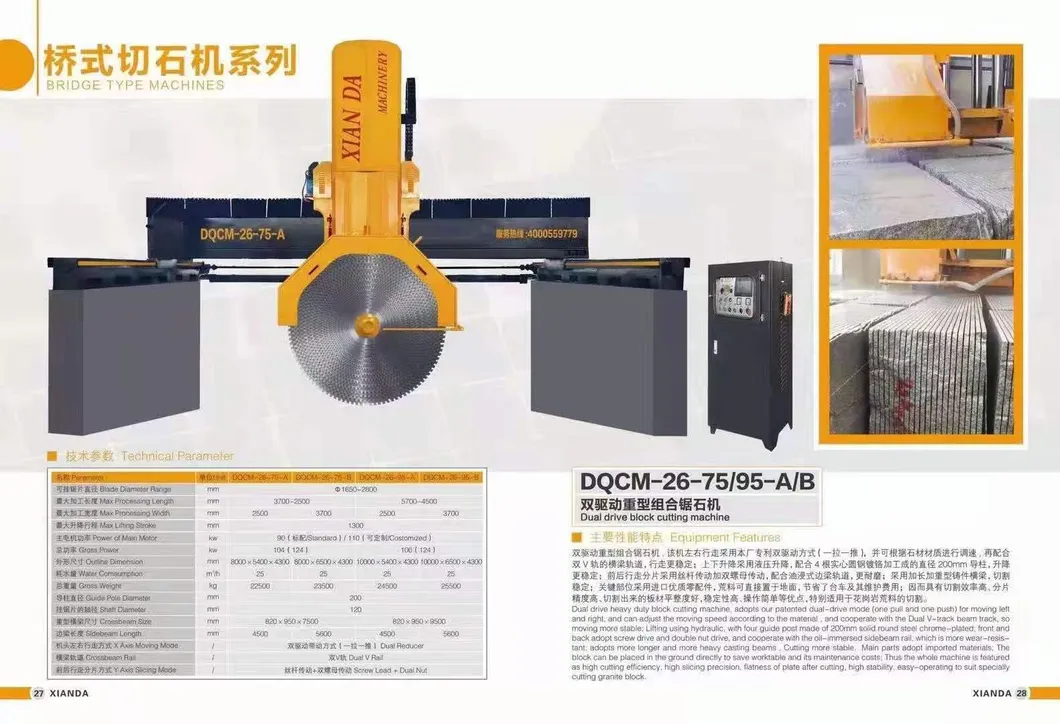

Technical Parameter
| Parameter | Unit | DQCM-26-75-A | DQCM-26-75-B | DQCM-26-95-A | DQCM-26-95-B |
| Blade Diameter Range | mm | 1650*2500 | |||
| Max Processing Length | mm | 3600-2700 | 5600-4700 | ||
| Max Processing Width | mm | 2200 | 3300 | 2200 | 3300 |
| Max Lifting Stroke | mm | 1150 | |||
| Power of Main Motor | kw | 90(Standard)/110(Costomized) | |||
| Gross Power | kw | 105(125) | 106(126) | ||
| Outline Dimension | mm | 8000*5400*3800 | 8000*6500*3800 | 10000*5400*3800 | 10000*6500*3800 |
| Water Comsumption | m³/h | 25 | 25 | 25 | 25 |
| Gross Weight | kg | 22500 | 23500 | 25500 | 26500 |
| Guide Pole Diameter | mm | 200 | |||
| Shaft Diameter | mm | 120 | |||
| Crossbeanm Size | mm | 820*950*7500 | 820*950*9500 | ||
| Sidebeam Length | mm | 4500 | 5600 | 4500 | 5600 |
Xianda machinery

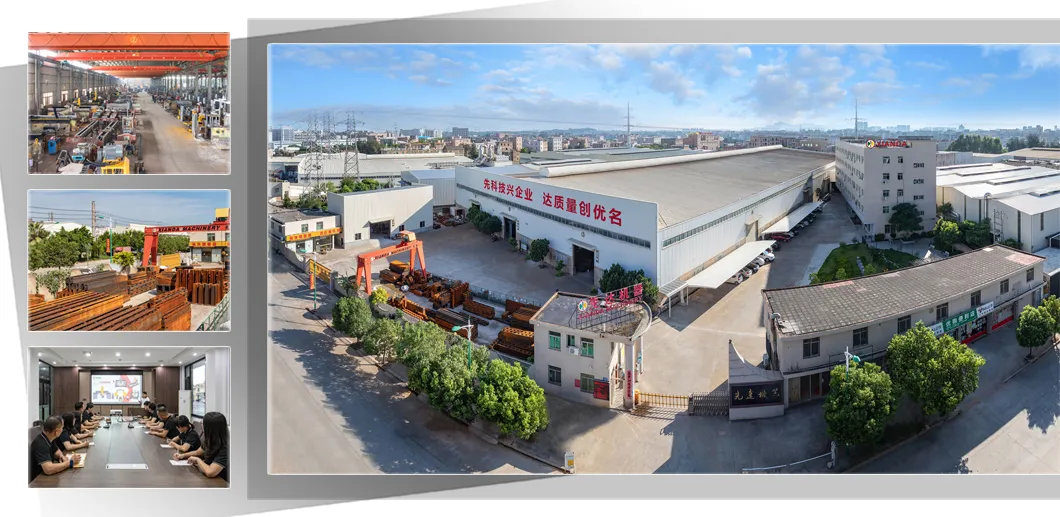

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
