Xianda Heavy Size Type Block / Stone Cutting Machine for Stone Processing DQCM-26-75-A/B

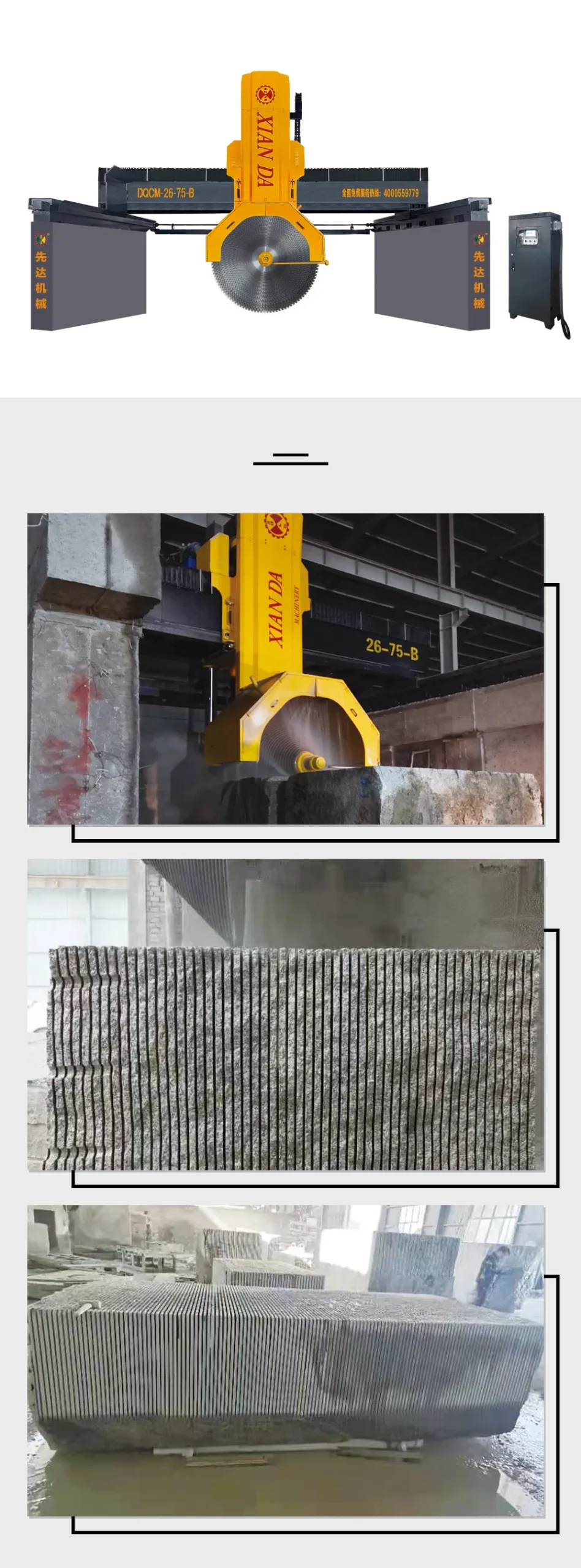

Detailed Photos
Product Description
Dual drive heavy duty block cutting machine, adopts our patented dual-drive mode (one pull and one push)for moving left and right, and can adjust the moving speed according to the material , and cooperate with the Dual V-track beam track, somoving more stable; Lifting using hydraulic, with four guide post made of 200mm solid round steel chrome-plated; front and back adopt screw drive and double nut drive, and cooperate with the oil-immersed sidebeam rail, which is more wear-resis-tant; adopts more longer and more heavy casting beams , Cutting more stable. Main parts adopt imported materials; Theblock can be placed in the ground directly to save worktable and is maintenance costs; Thus the whole machine is featuredas high cutting efficiency, high slicing precision,flatness of plate after cutting, high stability, easy-operating to suit speciallycutting granite block.
Product Parameters
| Parameter | Unit | DQCM-26-75-A | DQCM-26-75-B | DQCM-26-95-A | DQCM-26-95-B |
| Blade Diameter Range | mm | φ1650-2500 | |||
| Max Processing Length | mm | 3600-2700 | 5600-4700 | ||
| Max Processing Width | mm | 2200 | 3300 | 2200 | 3300 |
| Max Lifting Stroke | mm | 1150 | |||
| Power of Main Motor | kw | 90(standard)/110(customized) | |||
| Gross Power | kw | 105(125) | 106(126) | ||
| Outline Dimension | mm | 8000*5400*3800 | 8000*6500*3800 | 10000*5400*3800 | 10000*6500*3800 |
| Water Consumption | m³/h | 25 | 25 | 25 | 25 |
| Gross Weight | kg | 22500 | 23500 | 25500 | 26500 |
| Guide Pole Diameter | mm | 200 | |||
| Shaft Diameter | mm | 120 | |||
| Crossbeam Size | mm | 820*950*7500 | 820*950*9500 | ||
| Sidebeam Length | mm | 4500 | 5600 | 4500 | 5600 |
| X Axis Moving Mode | / | Dual Reducer | |||
| Crossbeam Rail | / | Dual V Rail | |||
| Y Axis Slicing Mode | / | Screw Lead+Dual Nut |
