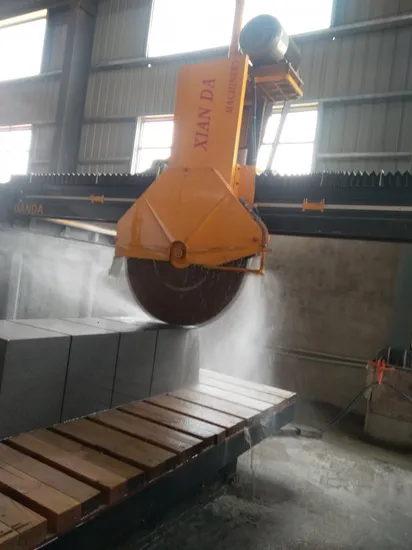

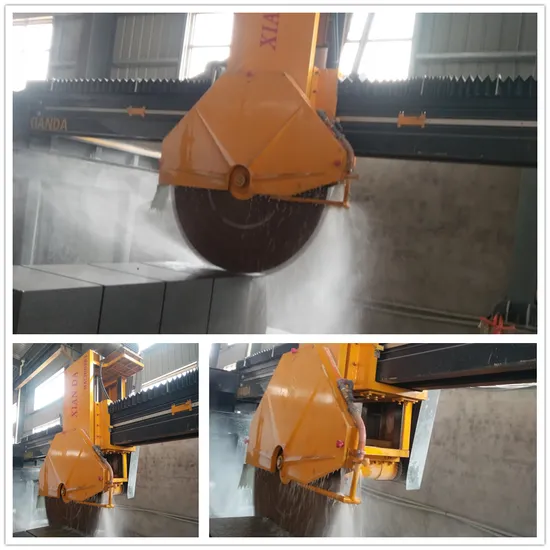

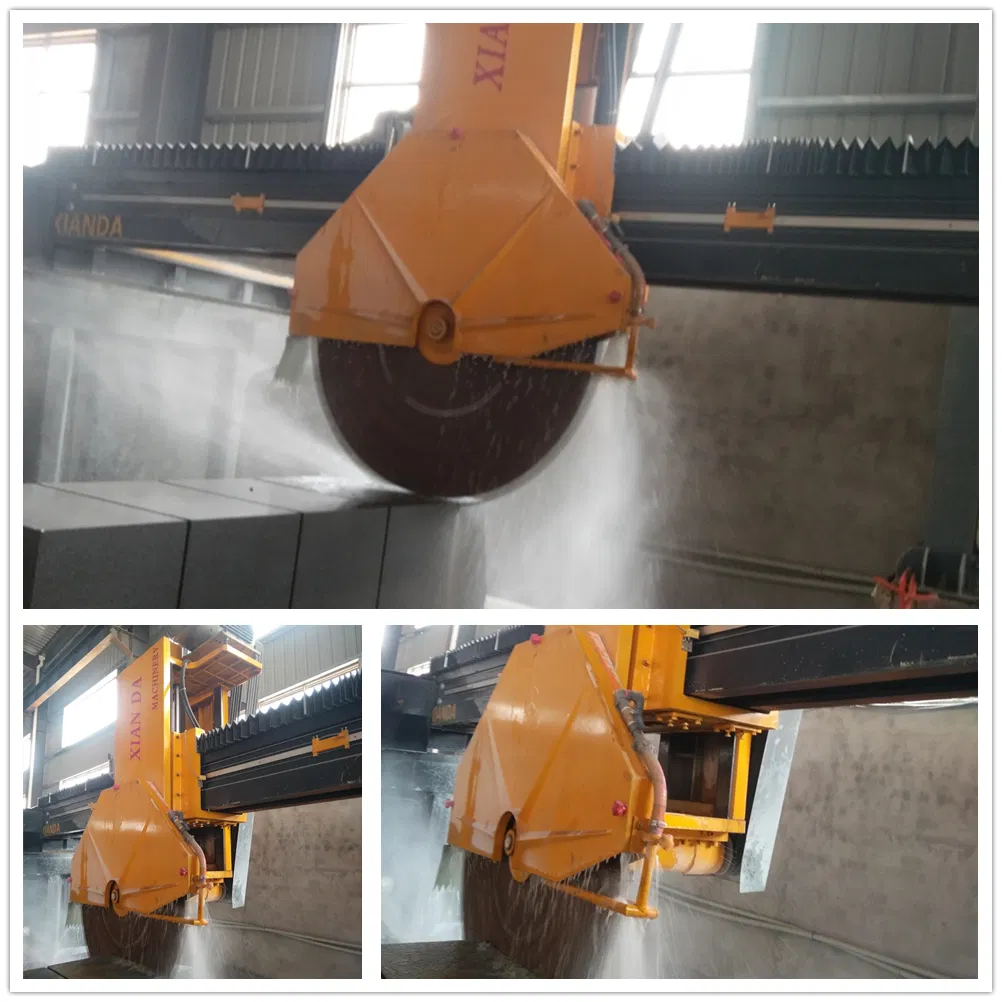

Heavy Type Middle Block Bridge Cutting Machine for Thick Slab and Curbstone HBKQ-1400/1600
This machine adopt 4 guide rod , double hydraulic cylinder, heavier structure, with quick lfting , strong power and stablecutting, it is the best choice for cutting thick slab and curbstone .
This machine adopt 4 guide rod , double hydraulic cylinder, heavier structure, with quick lfting , strong power and stablecutting, it is the best choice for cutting thick slab and curbstone .
Technical Parameter
| Parameter | Unit | HBKQ-1400 | HBKQ-1600 |
| Blade diameter | mm | φ1000-φ1400 | φ1300-φ1600 |
| Max lifting travel | mm | 850 | 850 |
| Trolley size | mm | 3000*2000 | 3000*2000 |
| Worktable rotating degree | ° | 0-90 | 0-90 |
| Water consumption | m³/h | 4 | 4 |
| Main motor | kw | 30 | 30 |
| Gross power | kw | 37 | 37 |
| Outline dimension | mm | 6600*4800*4000 | 6600*4800*4200 |
| Gross weight | kg | 8500 | 8750 |
