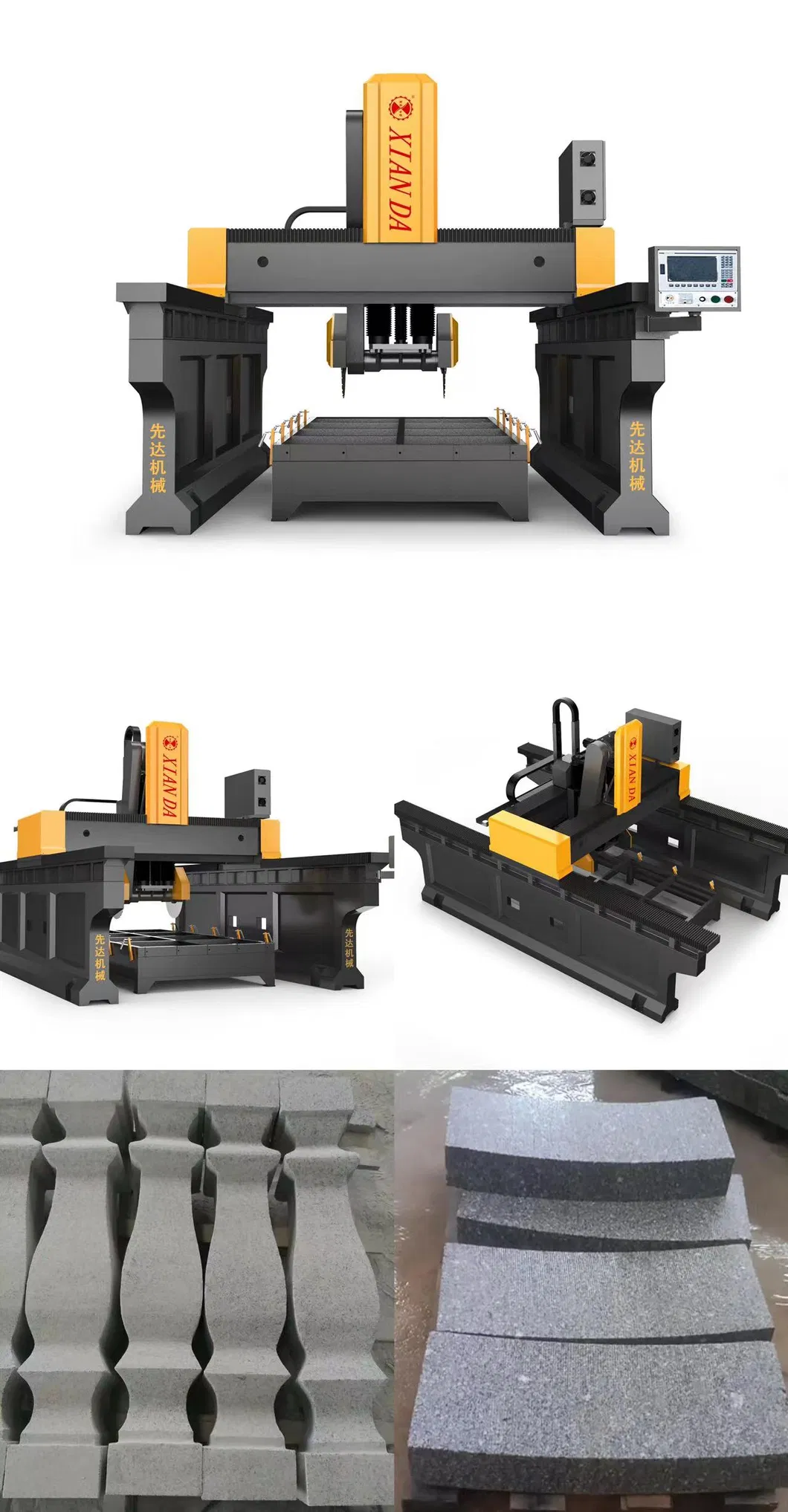

Xianda Machinery 3 Axis CNC Machine Dual Beam Bridge Type Cutting And Miliing Machine
Product Description

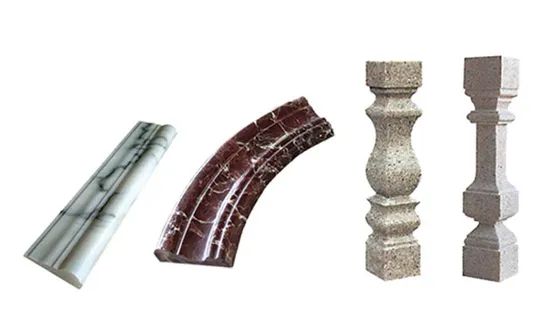

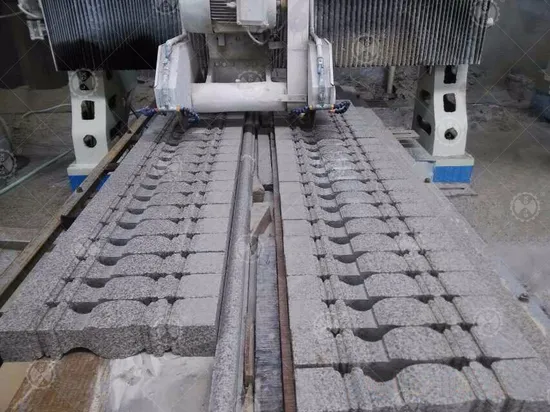

This machine adopts three-axis CNC system control,bridge double beam structure, Cutting Head lifting structure use four guide column +sleeve copper, left right travelling use four sets side wheels+four sets bottom wheel, combined the accuracy of linear guide rail and the power of profiling machine.It has the advantages of high stroke, high efficiency, high stability, etc. the system includes rough cutting ,fine cutting ,fine milling and other functions, and is suitable for large-scale special-shaped stone processing.
Technical Parameter
| Parameter | Unit | BLMM-1800MAX-A | BLMM-1800MAX-B |
| Blade diameter | mm | φ400-700 | φ400-700 |
| Spindle qty | mm | 1 Spindle (2Blades) | 1 Spindle (2Blades) |
| Max lifting travel of cutting frame | mm | 600 | 600 |
| Trolley size | mm | 1800*3500 | 1800*3500 |
| Max processing length | mm | 3500 | 3500 |
| Main motor | kw | 18.5/22 | 18.5/22 |
| Gross power | kw | 24/27.5 | 24/27.5 |
| Outline dimension | mm | 6200*4350*3600 | 6200*4100*3600 |
| X axis transmission structure | / | Walking wheel | Linear guide |
| Y axis transmission structure | / | Single Y aixs drive | dual Yaxis drive |
| Water consumption | m³/h | 6 | 6 |
