Heavy Type Middle Block Bridge Cutting Machine for Thick Slab and Curbstone HBKQ-1400/1600

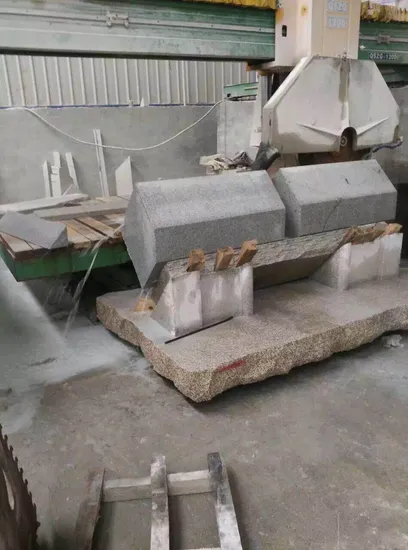

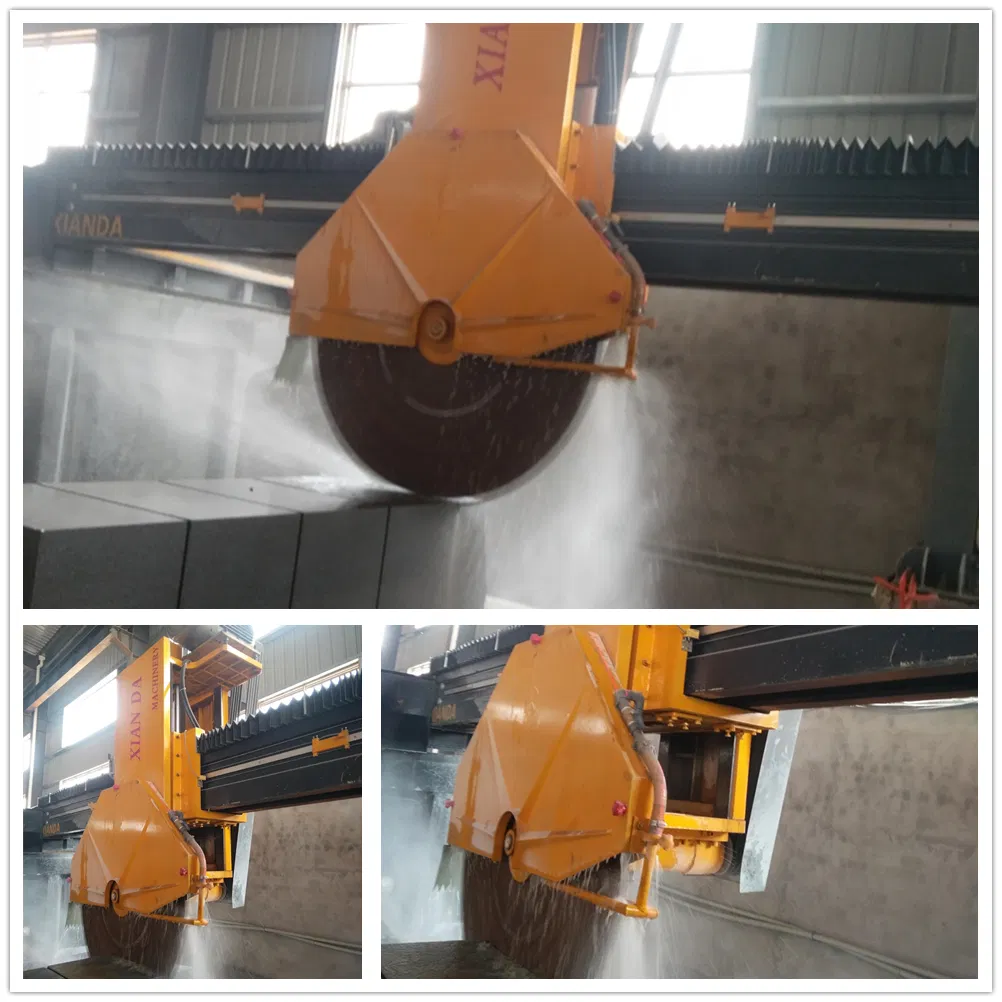

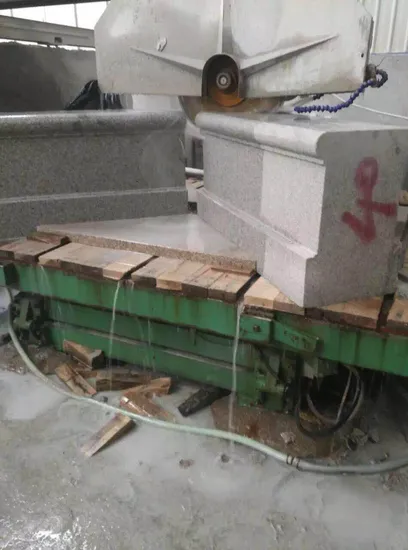

Detailed Photos
Product Description
This machine adopt 4 guide rod , double hydraulic cylinder, heavier structure, with quick lfting , strong power and stablecutting, it is the best choice for cutting thick slab and curbstone .
Product Parameters
| Parameter |
Unit |
HBKQ-1400 |
HBKQ-1600 |
| Blade diameter |
mm |
φ1000-φ1400 |
φ1300-φ1600 |
| Max lifting travel |
mm |
850 |
850 |
| Trolley size |
mm |
3000*2000 |
3000*2000 |
| Worktable rotating degree |
° |
0-90 |
0-90 |
| Water consumption |
m³/h |
4 |
4 |
| Main motor |
kw |
30 |
30 |
| Gross power |
kw |
37 |
37 |
| Outline dimension |
mm |
6600*4800*4000 |
6600*4800*4200 |
| Gross weight |
kg |
8500 |
8750 |
CustomizationAvailable
After-sales ServiceOne Year for Spare Part
WarrantyOne Year
Model NO.HBKQ-1400/1600
TypeBridge Cutting Machine
UsageCeramics, Concrete Curb, Granite, Marble, Thick Slab;Curbstone
ApplicationMachinery & Hardware, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Blade DiameterΦ1000-Φ1400mm;φ1300-φ1600mm
Max Lifting Travel850mm
Trolley Size3000*2000mm
Worktable Rotating Degree0-90°
Outline Dimension6600*4800*4000mm;6600*4800*4200mm
Main Motor30kw
Gross Power37kw
Water Consumption4m3/H
Gross Weight8500kg;8750kg
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification6600*4800*4000mm; 6600*4800*4200mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
