Product Description

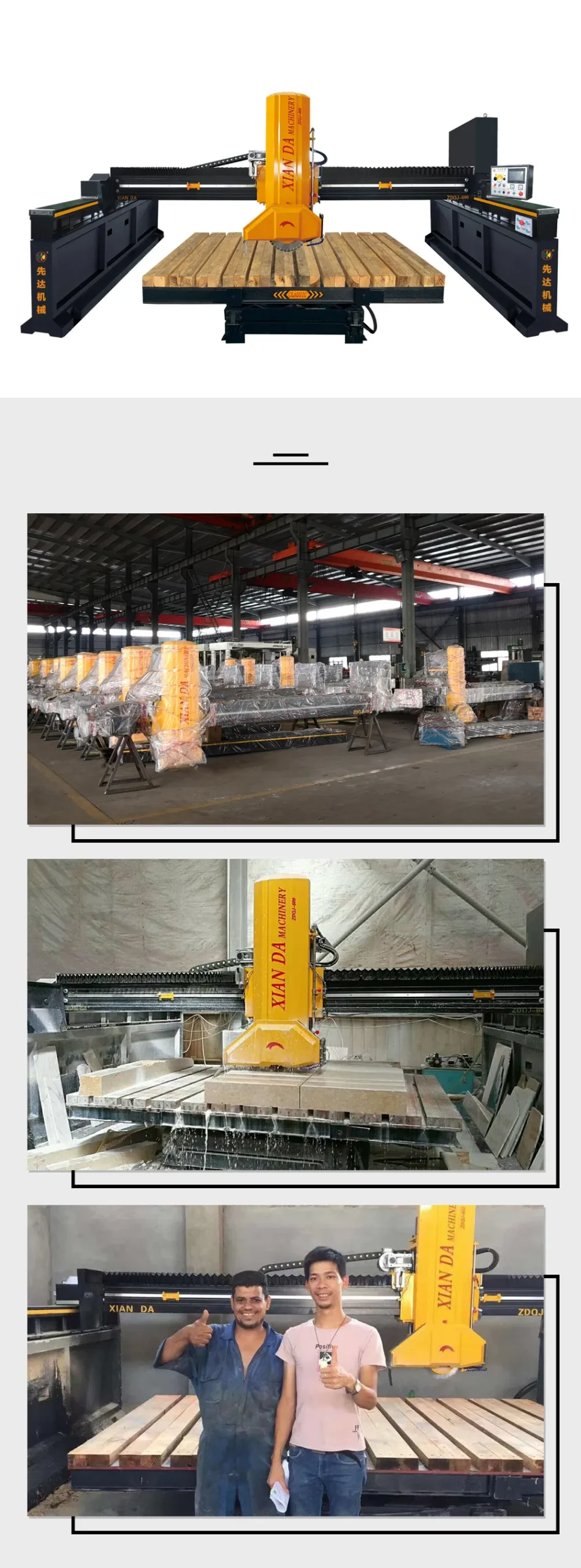

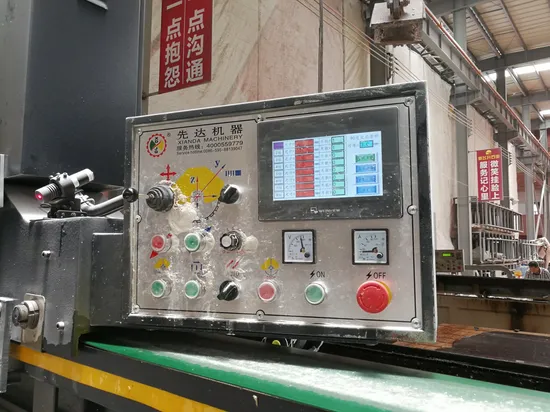

Fujian Xianda ZDQJ-450/600/800,This machine is controlled by microcomputer, its worktable can be 90°/360°rotating. Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency. It’s suitable for processing the marble&granite with high value.
Technical Parameter
| Parameter | Unit | ZDQJ-450 | ZDQJ-600 | ZDQJ-800 |
| Blade diameter | mm | 300-450 | 350-600 | 500-800 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*170 | 3200*2000*270 |
| Dimension of worktable | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Main motor | kw | 15 | 18.5 | 22 |
| Outline dimension | mm | 5850*4700*2700 | 5850*4700*3000 | 5850*4700*3450 |
| Gross weight | kg | 5500 | 5750 | 6000 |
| Water consumption | m3/h | 3 | 3 | 3 |
Xianda machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
Key words: stone cutting machine, wire saw machine, stone profiling.
