Zdsc-400 Bridge Automatic Cutting Machine (marble)

سعر FOB: $32.000,00 $38.000,00 / وحدة
الحد الأدنى للطلب: وحدة واحدة
  • توريد وشحن
  • تركيب وتشغيل
  • تدريب الفريق
  • ضمان ودعم
رمز المنتج: XD-bFufZvcxlXhD التصنيف: الوسوم: , العلامة التجارية:

الوصف

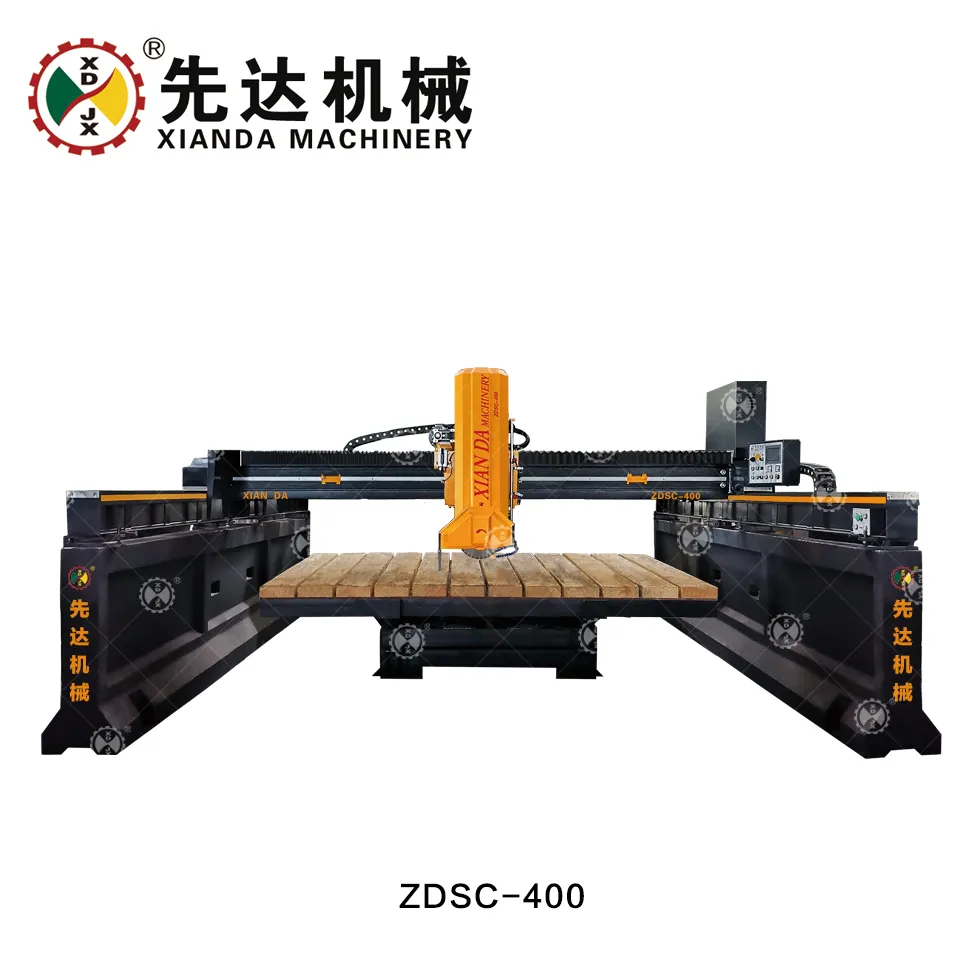

ZDSC-400 Bridge automatic cutting machine (marble)

Zdsc-400 Bridge Automatic Cutting Machine (marble)Zdsc-400 Bridge Automatic Cutting Machine (marble)

Product description

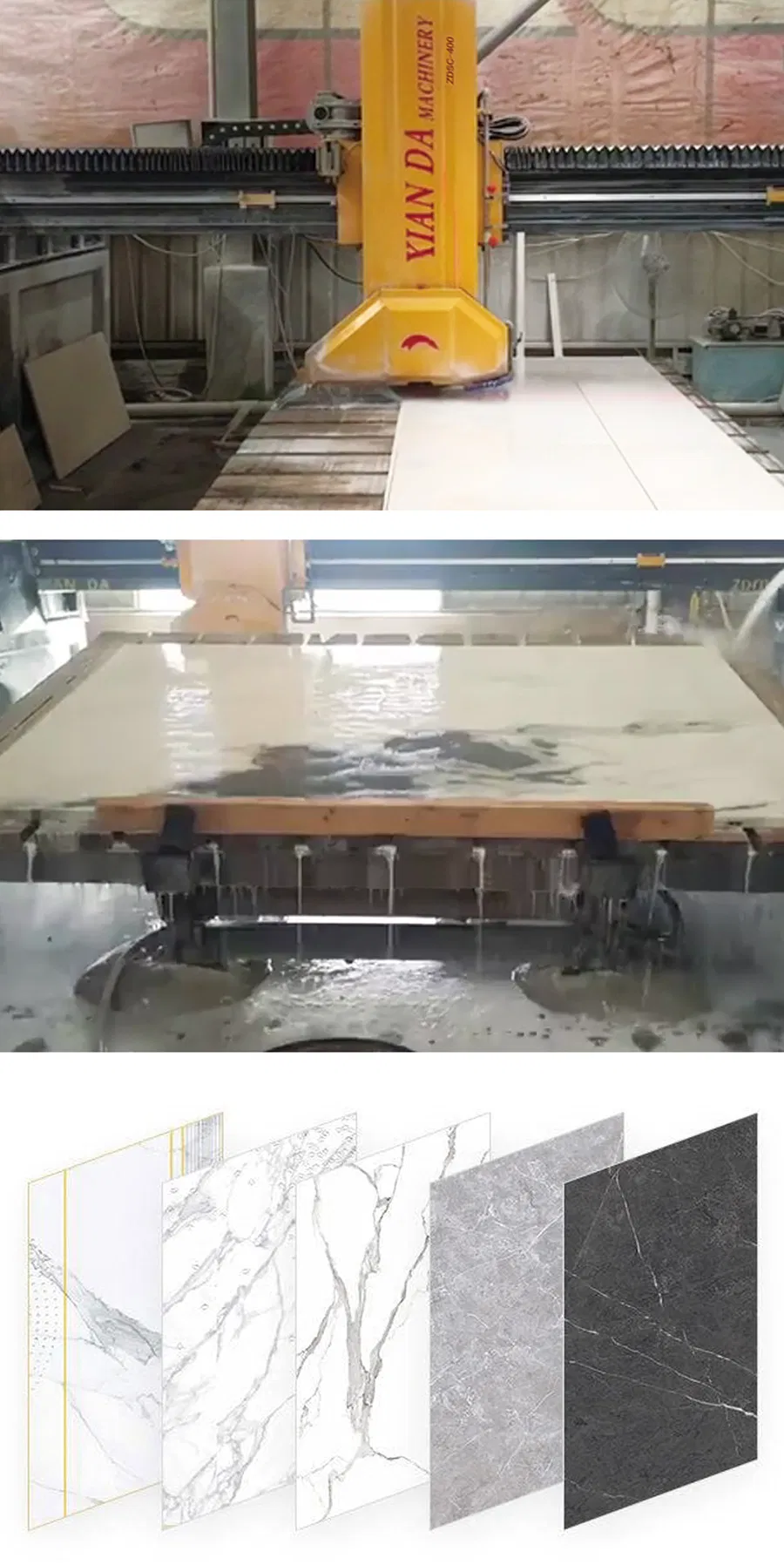

This machine is controlled by microcomputer, its worktable can be 90 /360 rotating. Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency. It’s suitable for processing marble artificial stone with high value and big size.



Zdsc-400 Bridge Automatic Cutting Machine (marble)

Xianda machinery

Zdsc-400 Bridge Automatic Cutting Machine (marble)

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.


Key words: stone cutting machine, wire saw machine, stone profiling.

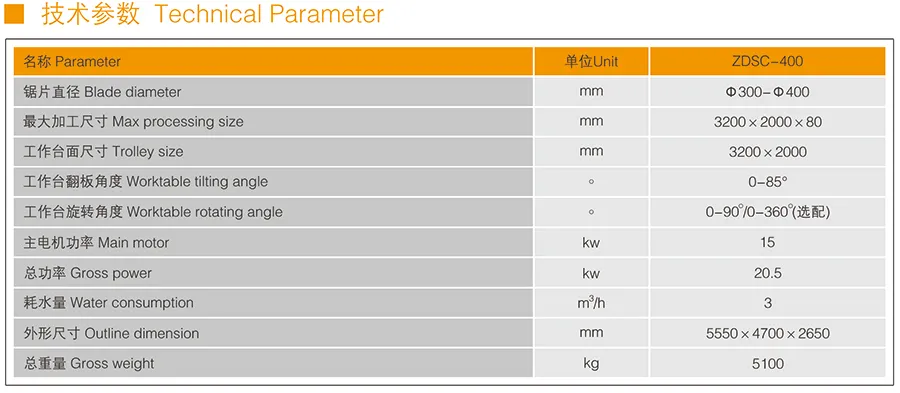

Model NO.ZDSC-400
TypeCNC Cutting Machine
UsageConcrete Curb, Granite, Marble, Block
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlCNC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS
Max Processing Size3200*2000*80
Trolley Size3200*2000
Worktable Rotating Angle0-90/0-360
Main Motor15kw
Outline Dimension5550*4700*2650
Worktable Tilting Angle0-85
Gross Weight5100kg
Water Consumption3m3/H
AdvantageMulti Function with Good Quality and Price
Key WordsStone Machine
Warranty TimeOne Year
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification5550*4700*2650mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
