Product Description

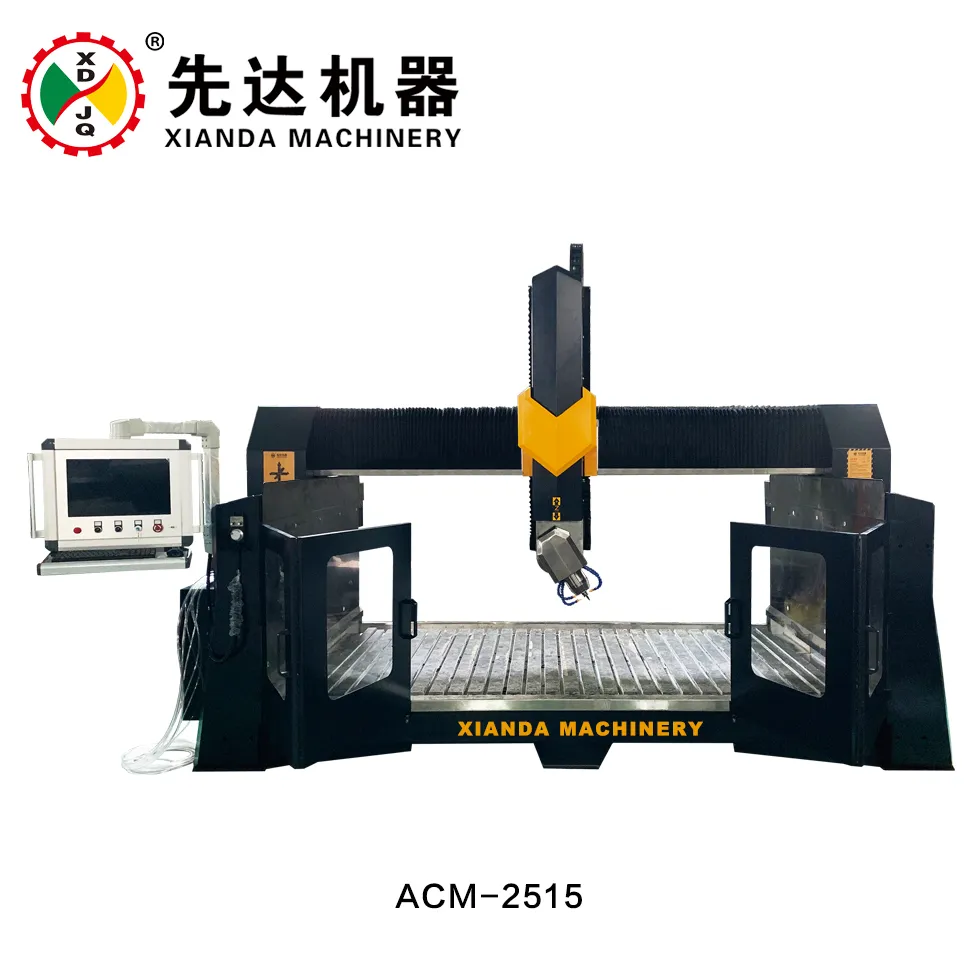

Fujian Xianda ACM-2515-1Q ,This machine adopts numerical control system ,four-axis linkage ,double row four-row slider, constant power spindle motor ,two-way tool cooling system ,with stable running ,high precision and high efficiency advantages ,suitable for processing marble ,granite ,bluestone ,jade ,agate ,copper plate and aluminum plate and other materials.
Technical Parameter
| Parameter | Unit | ACM-2515-1Q | ACM-3015-2Q |
| Spindle type | / | 1 Tilting head | 2 Tilting head |
| Dimension of worktable | mm | 2500*1500 | 3000*1500 |
| Feed height | mm | ≤650 | ≤650 |
| Air Speed | m/min | 13 | 12 |
| Number of spindles | pcs | 1 | 2 |
| Spindle Power | kw | 7.5 | 7.5*2 |
| Outline dimension(L*W*H) | mm | 3700*2410*3500 | 4200*2410*3500 |
| Water consumption | M3/h | 1 | 2 |
Xianda machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
