Product Description

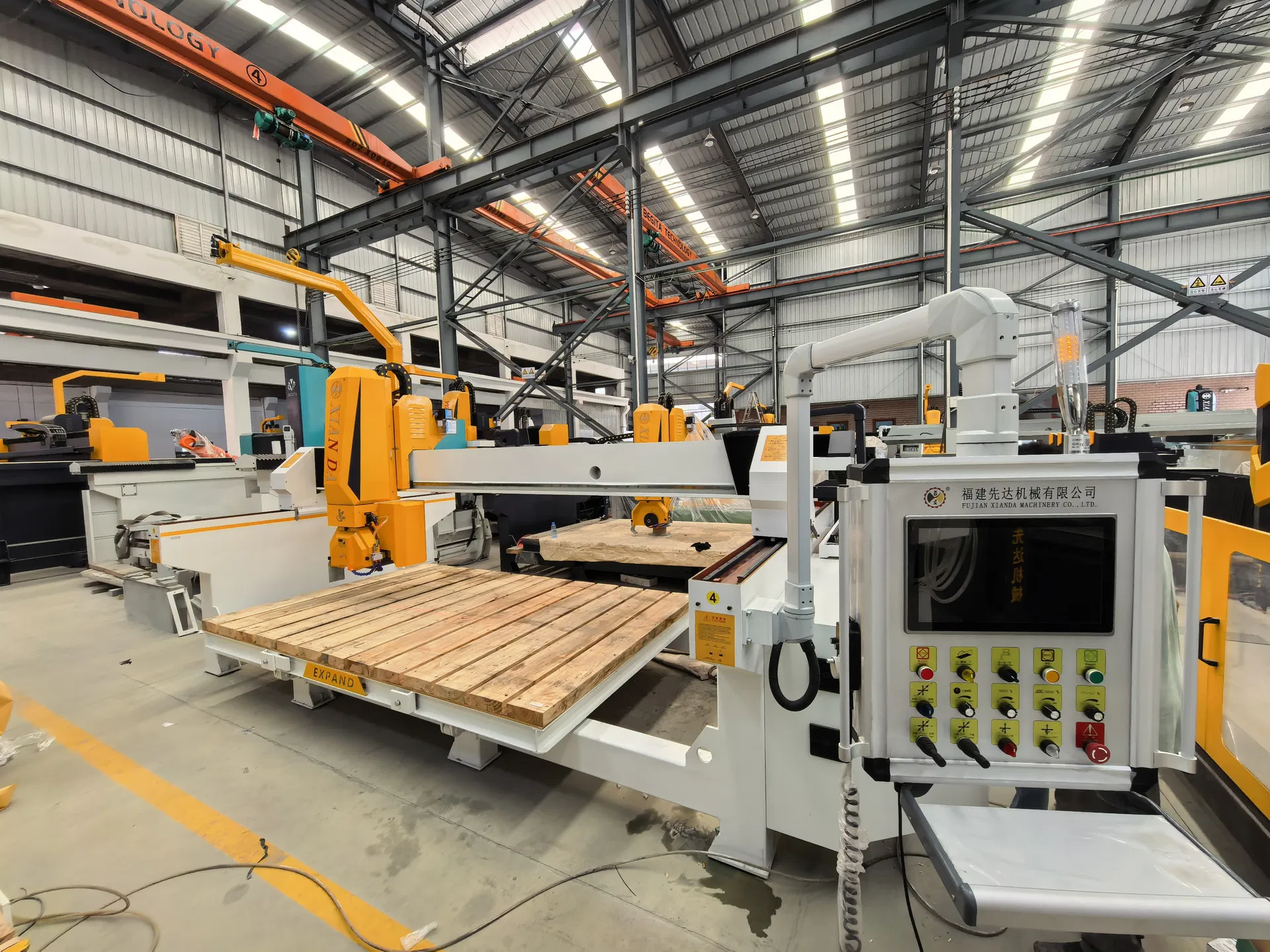

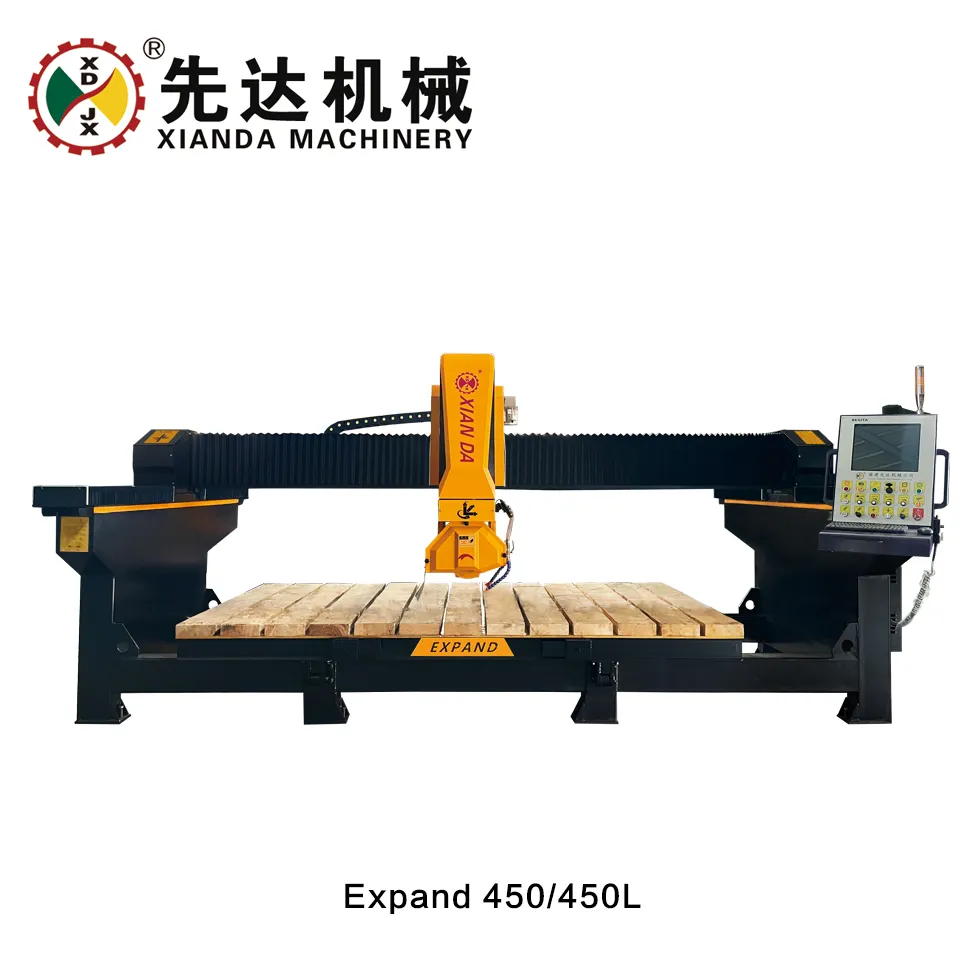

4 Axis Bridge cutting machine adopt 4 Axis linkage CNC System Control, Bus- based absolute value servo ( with memory function for power off), high-precision linear guide rail,Rack drive, oil-immersed track structure, with multi -function, high precision, strong stability and other advantages.
Specification
|
Technical Parameter
|
Unit
|
Expand 450
|
Expand 450L
|
Expand 450-MC
|
|
Blade diameter range
|
mm
|
Φ350-Φ450
|
Φ350-Φ450
|
Φ350-Φ450
|
|
Worktable Size
|
mm
|
3200X2000
|
3200X2000
|
3200X2000
|
|
Max processing size
|
mm
|
3200x2000x100
|
3200x2000x100
|
3200x2000x100
|
|
Worktable tilting degree
|
°
|
0,85°
|
0,85°
|
0,85°
|
|
Cutting head rotation degree
|
°
|
0~360°
|
0~360°
|
0~360°
|
|
Cutting head chamfer rotation degree
|
°
|
0,45°
|
0~60°
|
0,45°
|
|
Cutting head chamfer control mode
|
°
|
Hydraulically controlled
|
Servo motor control
|
Hydraulically controlled
|
|
Main motor power
|
kw
|
15(Permanent magnet motor)
|
15(Permanent magnet motor)
|
15(Permanent magnet motor)
|
|
Outline dimension
|
mm
|
5000x3100x2700
|
5000x3100x2700
|
5000x3100x2700
|
|
Water consumption
|
m³/h
|
≈2
|
≈2
|
≈2
|
