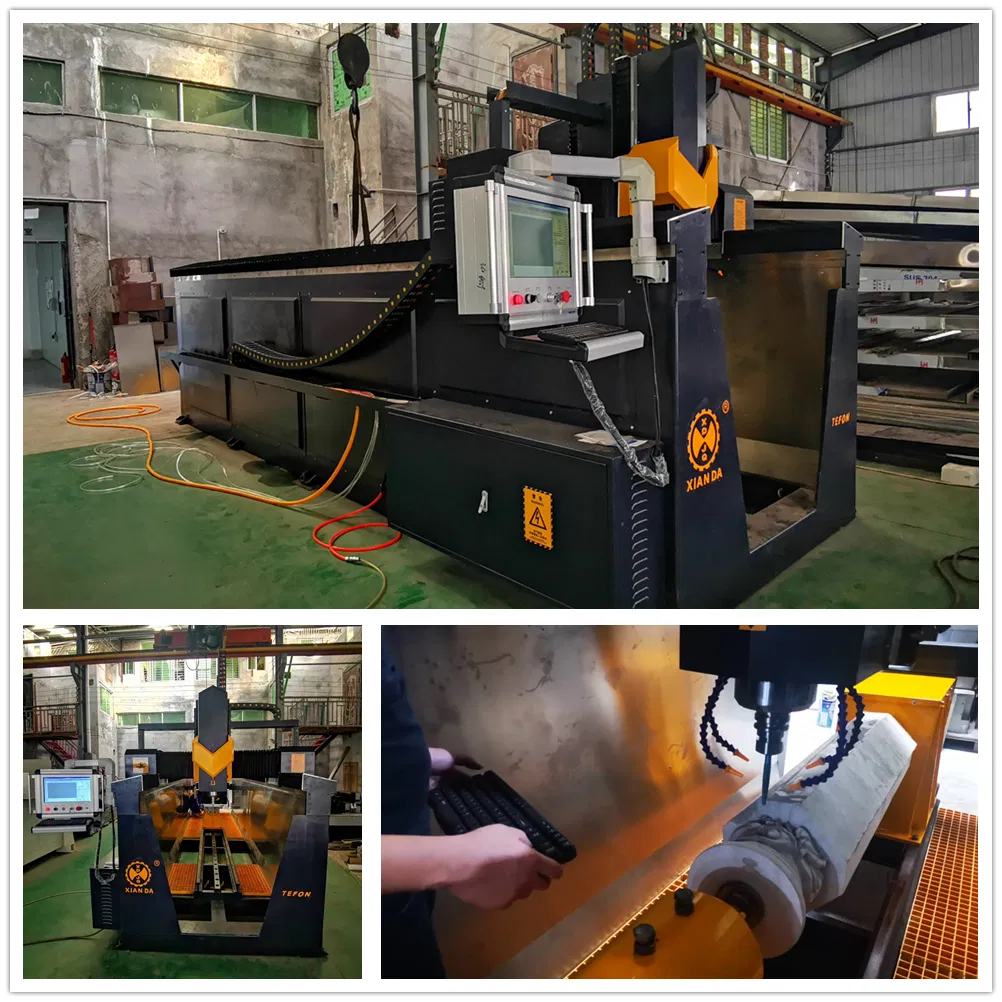

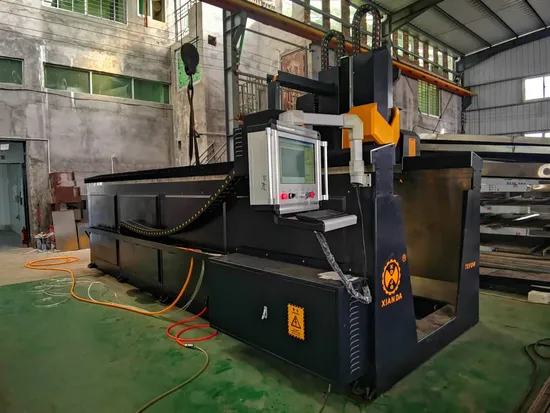

4 Axis Column Carving Machine (TEFON) FCM-300/600

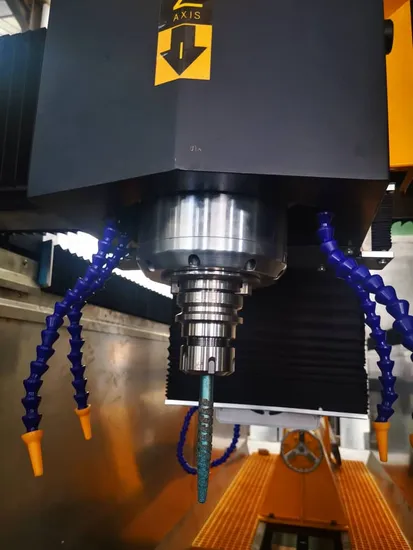

This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.
This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.

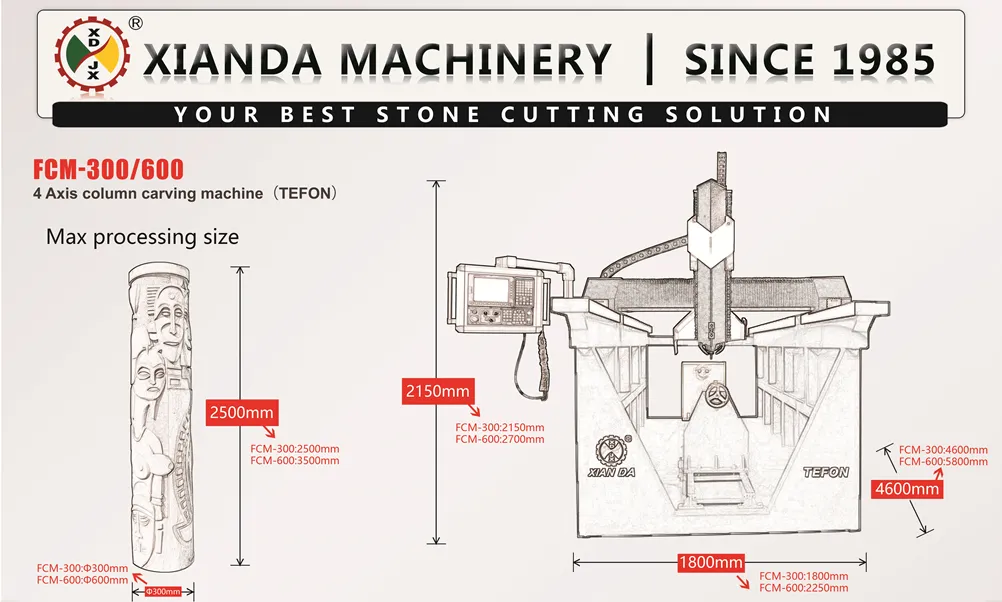

Technical Parameter
| Parameter | Unit | FCM-300 | FCM-600 |
| Max Processing Diameter | mm | φ300 | φ600 |
| Max Processing Length | mm | 2500 | 3500 |
| Disc Roughing Spindle Power | kw | 7.5 | 7.5 |
| Sculpted Spindle Power | kw | 7.5 | 7.5 |
| Number of Spindles | pcs | 2pcs | 2pcs |
| Outline Dimension | mm | 1800*4600*2150 | 2250*5800*2700 |
| Water Consumption | m³/h | 3 | 3 |
