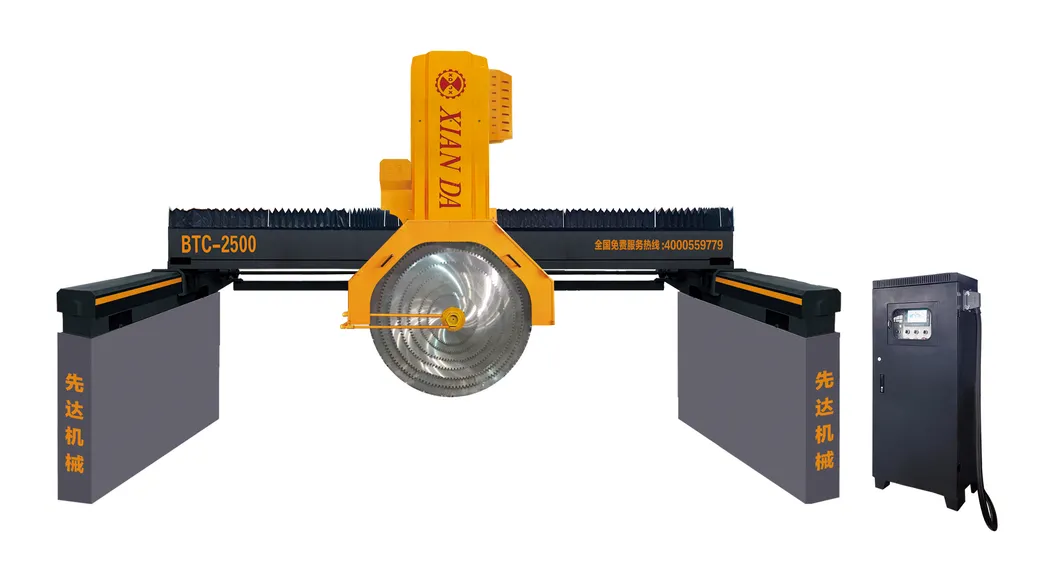

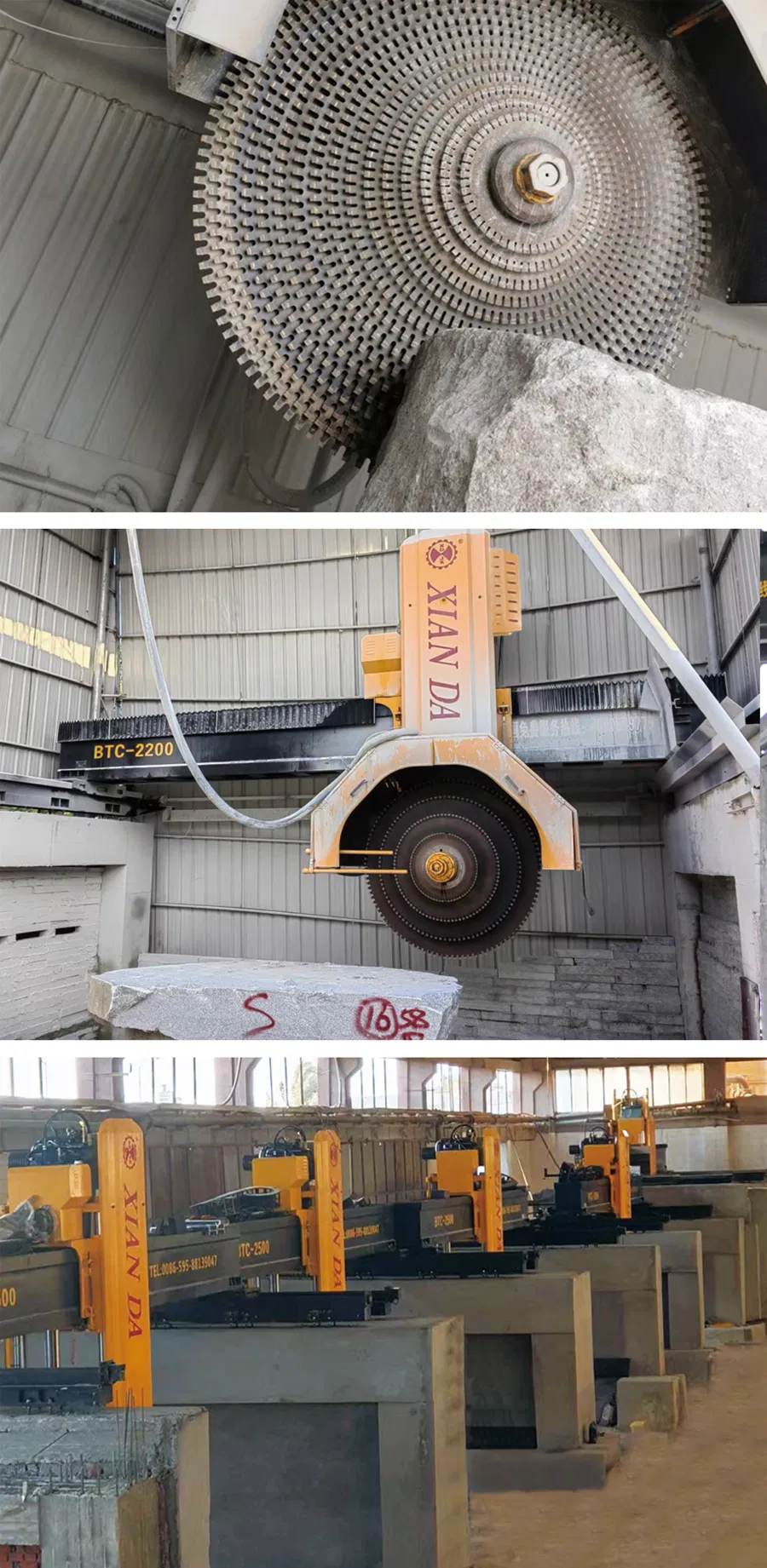

Multi-blade large stone block cutting machine marble granite block cutter
BTC-2200/2500/2800
This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones.
It uses hydraulic lifting system, forward-backward slicing use high- precision screw nut driving, automatic slicing, main parts adopt imported materials; The block can be placed in the ground directly to save worktable and its maintenance costs; Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit especially cutting granite and marble block with high value.
Produt Parameter
| Parameter | Unit | BTC -2200 | BTC -2500 | BTC -2800 |
| Max blade diameter | mm | Φ 2200 | Φ 2500 | Φ2800 |
| Left and right travel | mm | 3800 | 3500 | 3200 |
| Moving front and back travel | mm | 2200 | 2200 | 2200 |
| Lifting stroke | ° | 1320 | 1320 | 1320 |
| Main Motor | ° | 45/55 | 45/55 | 55/65 |
| Gross power | kw | 57/67 | 57/67 | 67/77 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Outline dimension | mm | 8000×4800×3700 | 8000×4800×3700 | 8000×4800×3700 |
| Gross weight | kg | ≈ 14000 | ≈ 14500 | ≈ 15000 |
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
