CHJJ-1500 XIANDA BANDSAW MARBLE MACHINE

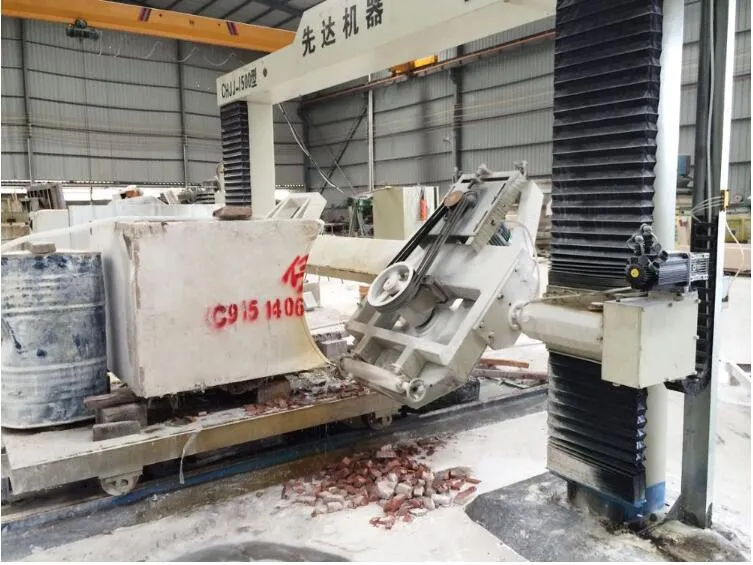

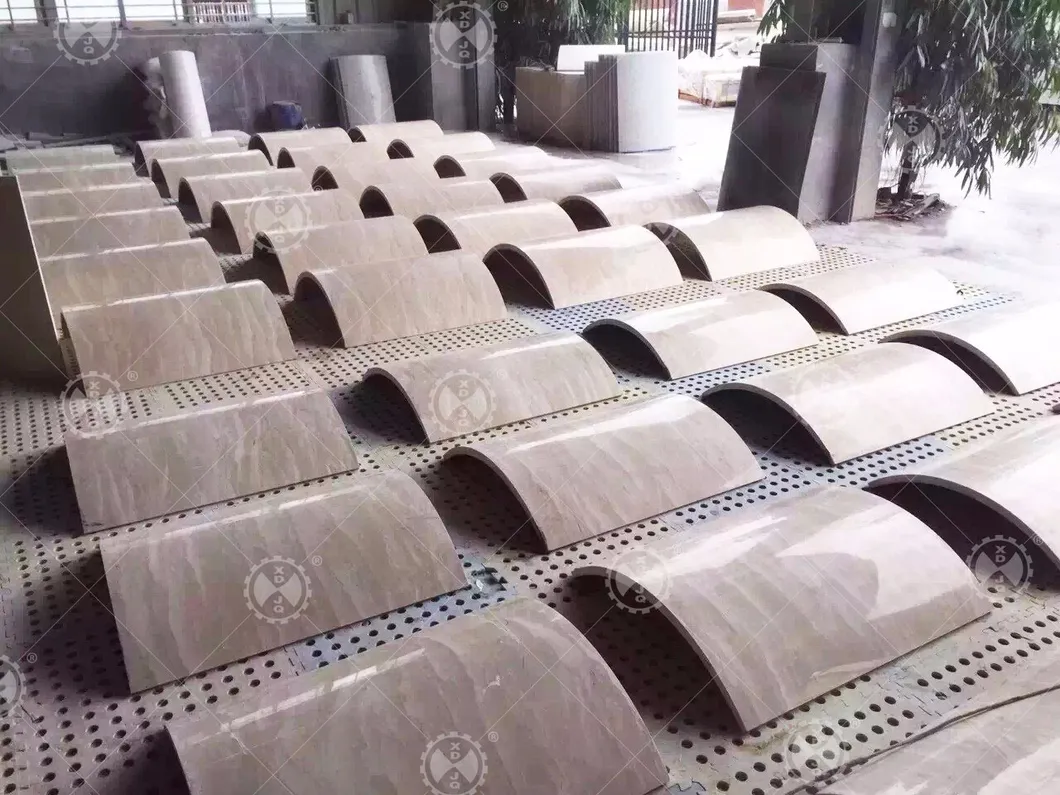

Circular slab Stone cutting machine adopts CNC system Control.the band saw which operates around the central axis, slicing blocks is controlled by the worktable automatic feeding. it has the features of lower energy consumption and small saw kerfs (3mm saw kerfs), saving blocks, simple operation, high precision and high efficency. Processing diameter range is bigger than Ø600mm(including Ø600mm), which is the ideal choice for processing the circular arc slab stone material.
Technical Parameter
| Parameter | Unit | CHJJ-1500 |
| Column of diameter | mm | 600 |
| Max cutting height | mm | 1500 |
| Max cutting width | mm | 1300 |
| Outline dimension | mm | 6300*5200*3200 |
| Main motor | kw | 4 |
| Gross motor | kw | 11 |
| Gross weight | kg | 5000 |
| Water consumption | m3/h | 4 |
Xianda machinery

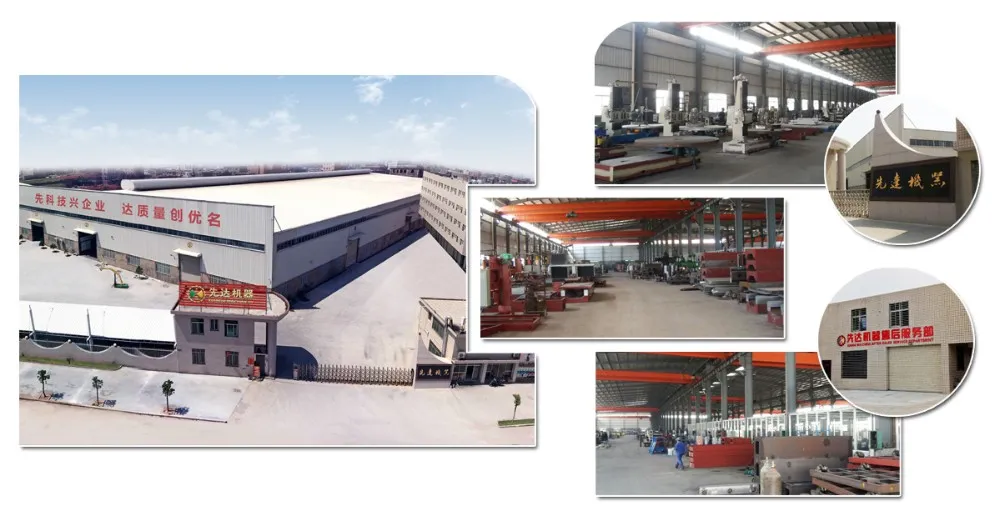

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
