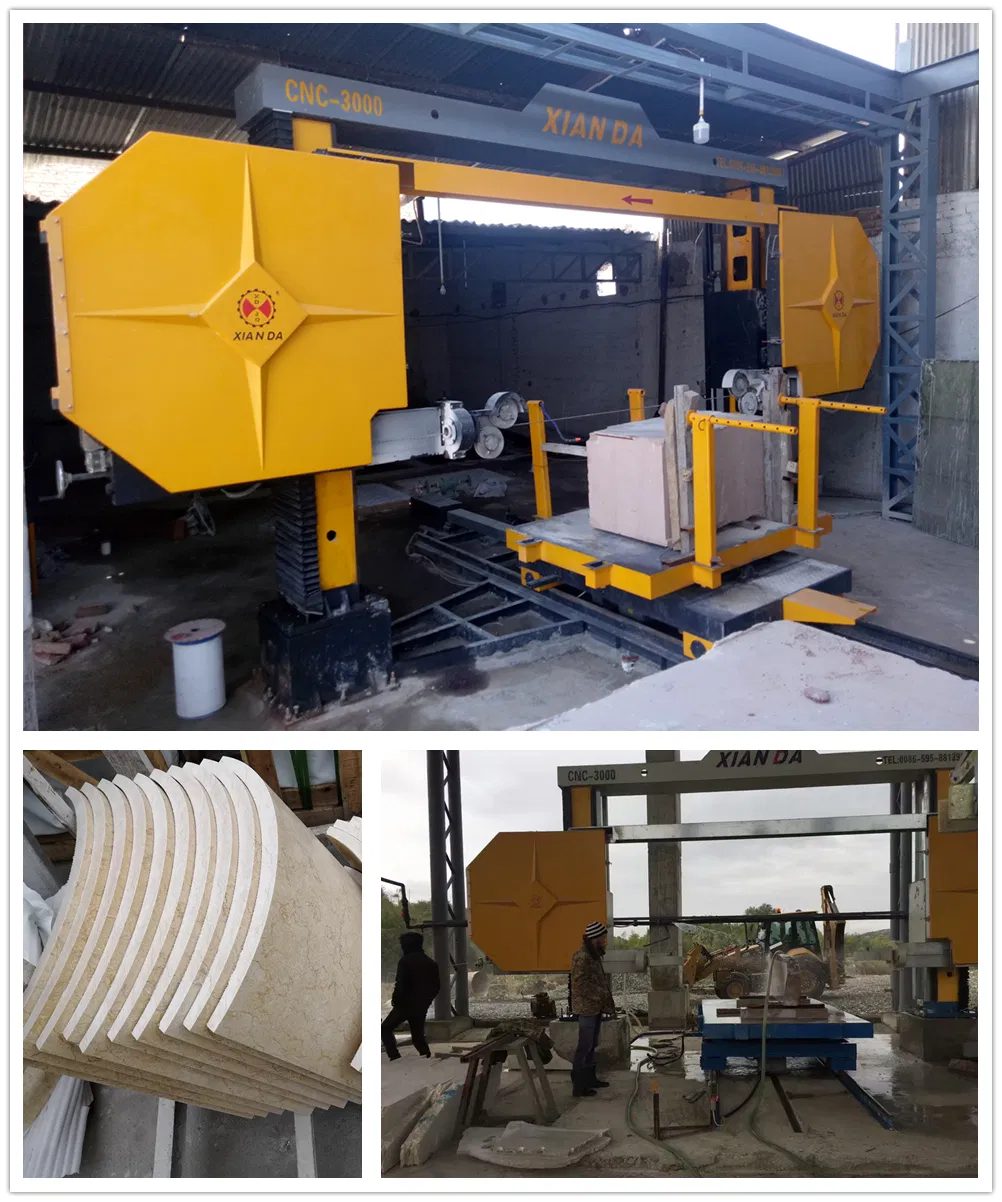

CNC Diamond Wire Saw Machine For Accurate Cutting
This machine adopts CNC control, four- spindle linkage, which can process the circular stone slab, column, numeral, letter,Chinese characters and other shapes for the stone. This machine is good quality with high processing precision.

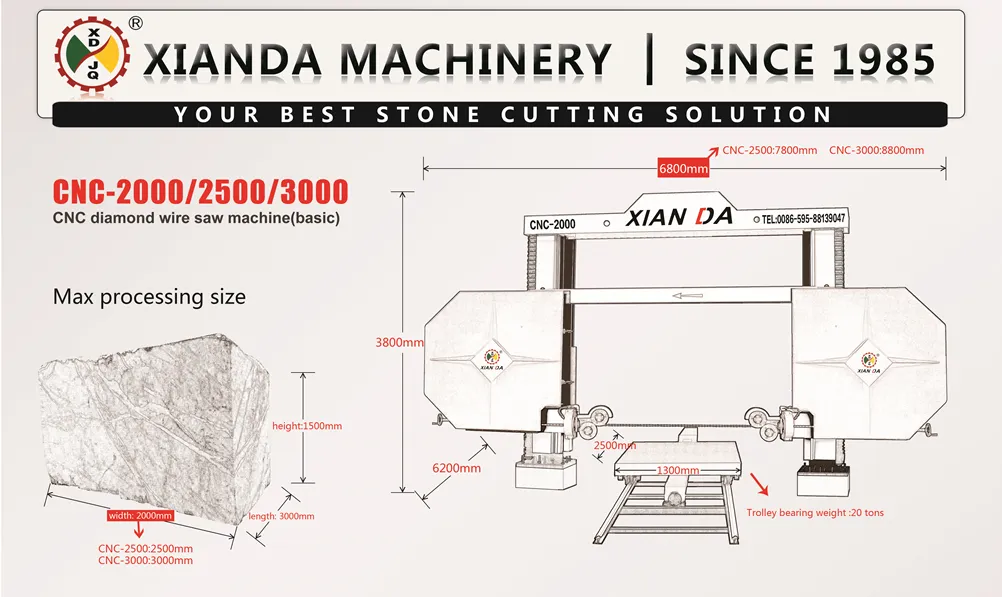

Technical Parameter
| Parameter |
Unit |
CNC-2000 |
CNC-2500 |
CNC-3000 |
| Max Processing Size |
mm |
2000*3000*1500 |
2500*3000*1500 |
3000*3000*1500 |
| Trolley Size |
mm |
1300*2500 |
1300*2500 |
1300*2500 |
| Main Motor |
kw |
11 |
11 |
11 |
| Outline Dimension |
mm |
6800*6300*3800 |
7800*6300*3800 |
8800*6300*3800 |
| Gross Weight |
kg |
5500 |
5750 |
6000 |
| Water Consumption |
m3/h |
4 |
4 |
4 |
Model NO.CNC-2000/2500/3000
TypeCNC Cutting Machine
UsageConcrete Curb, Granite, Marble, Block
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlCNC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Max Processing Size3000*3000*1500mm
Trolley Size1300*2500mm
Main Motor11kw
Outline Dimension8800*6300*3800mm
Gross Weight6000kg
Water Consumption4m3/H
AdvantageMulti Function with Good Quality and Price
Key WordsStone Cutting Machine
Warranty TimeOne Year
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification8800*6300*3800mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
