Product Description

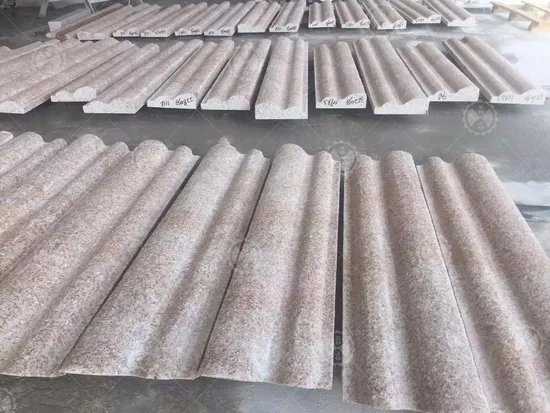

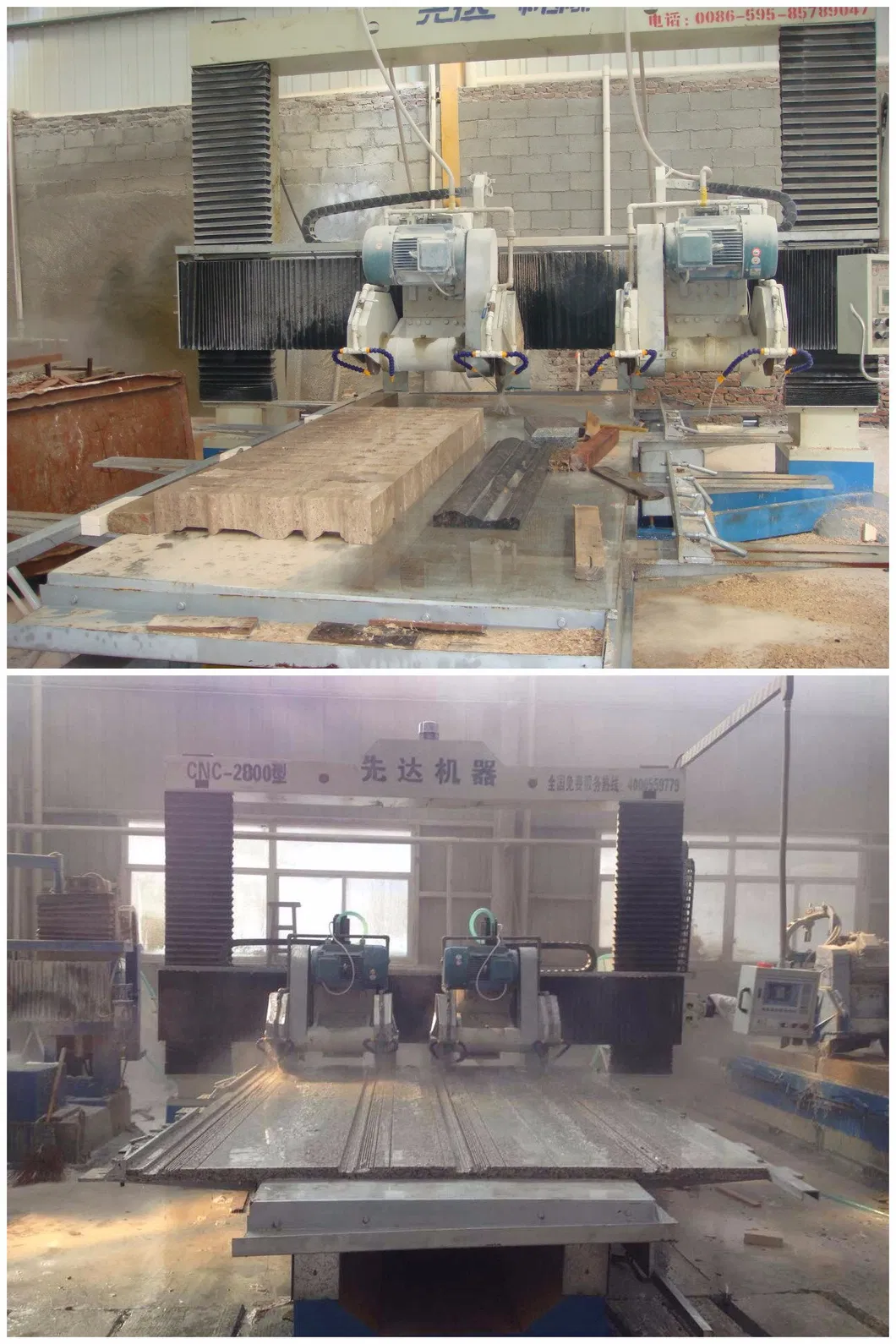

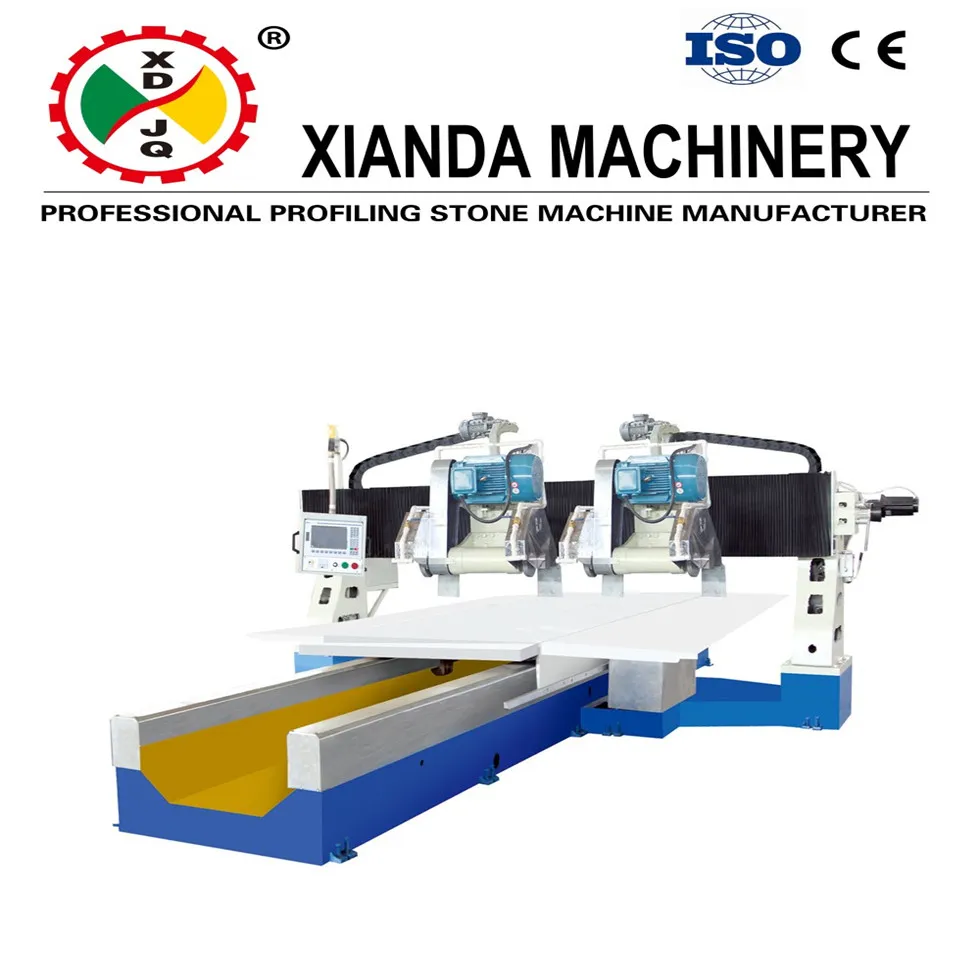

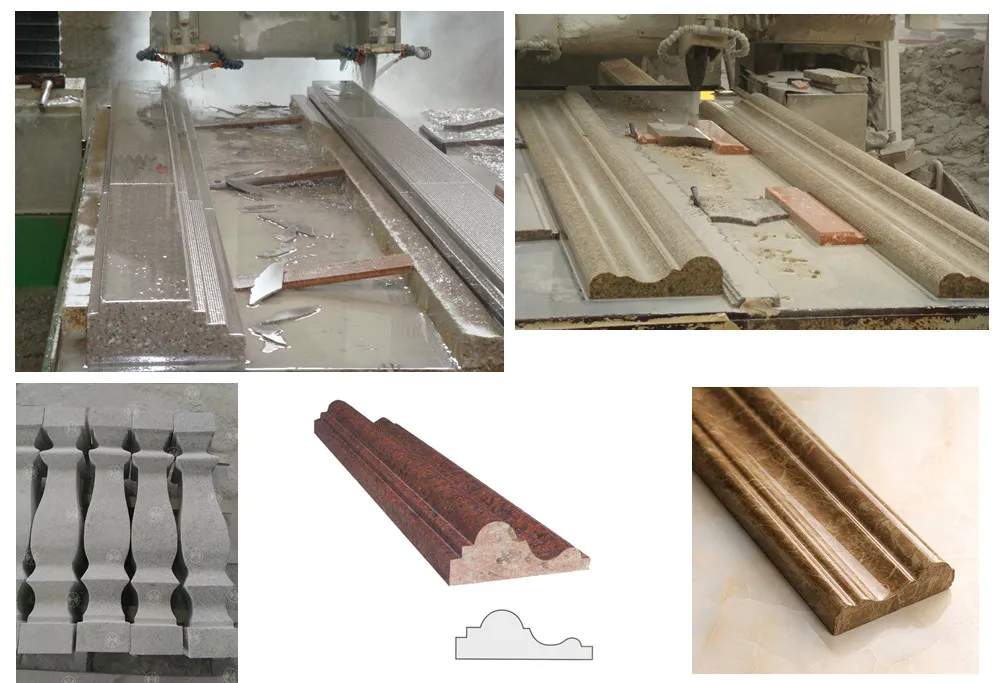

CNFX-2800 CNC Four-blade gantry profiling lines cutting machine&stone cutting machine adopts CNC system,higher degree of automation,higher precision cutting;using double-blades designing,with higher cutting efficiency,higher stability,easy-operation to suit for lines,arc-shaped lines,Roman column,etc.
CNFX-2800 adopts CNC system. It automatically profiling through diamond circular saws to cut stone with program, step motor control up-down lifting and left-right feeding , uses inverter adjusts the speed according to the stone material.
Remark: If choosing rotating worktable,the processing of arc-shaped lines can be done.
Technical Parameter
| Parameter | Unit | SCNFX-2800 |
| Blade diameter | mm | φ300-φ600 |
| Max lifting travel of cutting frame | mm | 1000 |
| Dimension of worktable | mm | 3500*2800 |
| Main motor | kw | 15*2 |
| Gross motor | kw | 39 |
| Outline dimension | mm | 6000*4500*3300 |
| Gross weight | kg | 8000 |
| Water consumption | m3/h | 10 |

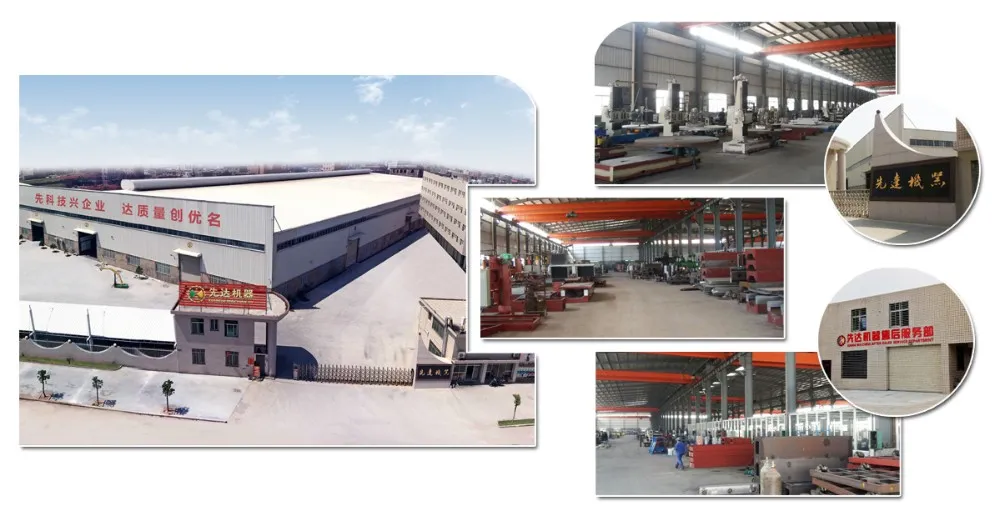

Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
