Product Description

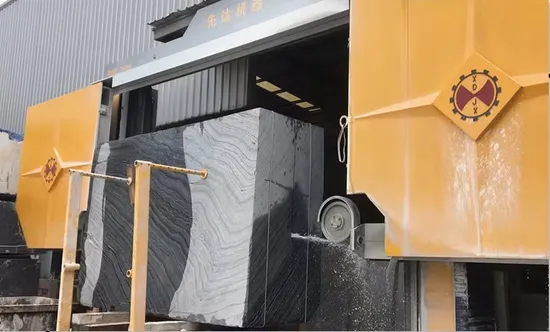

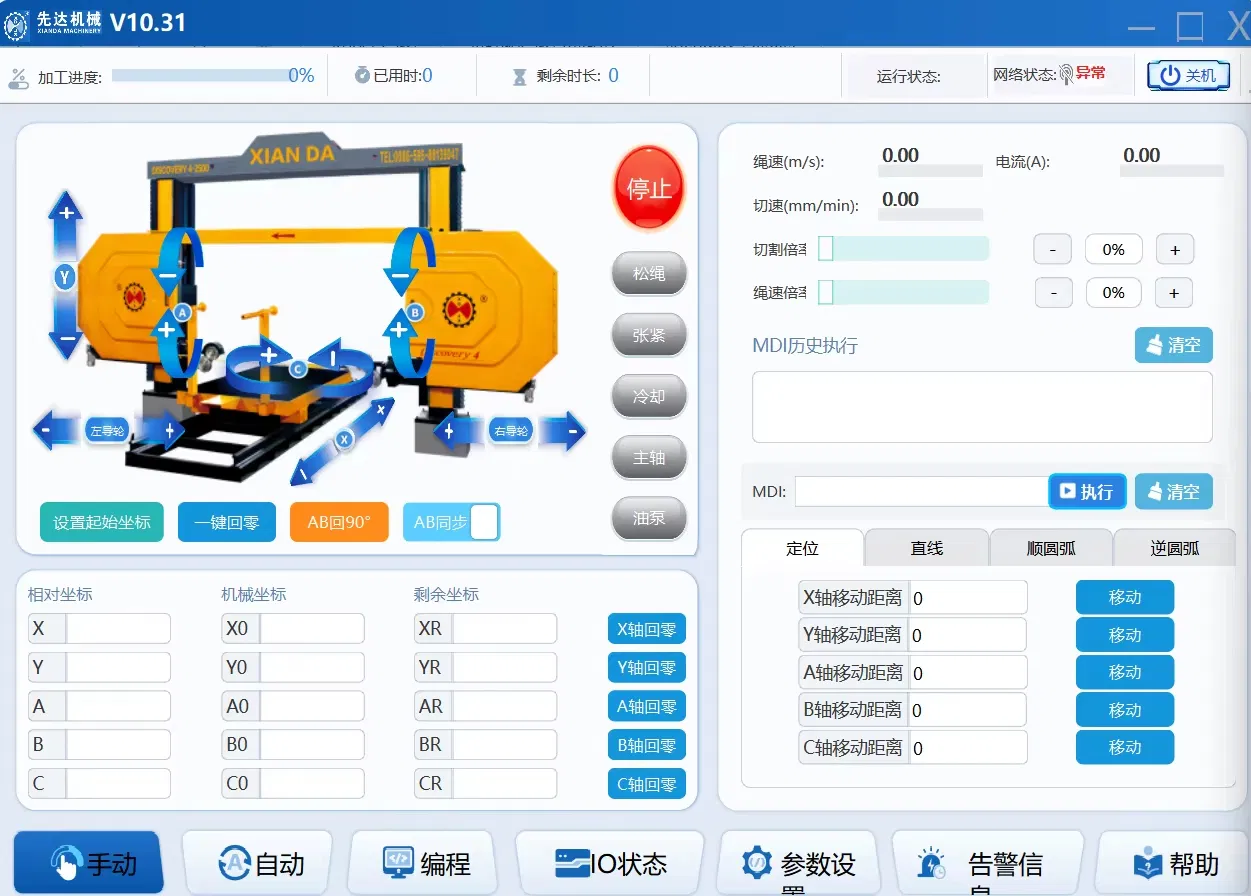

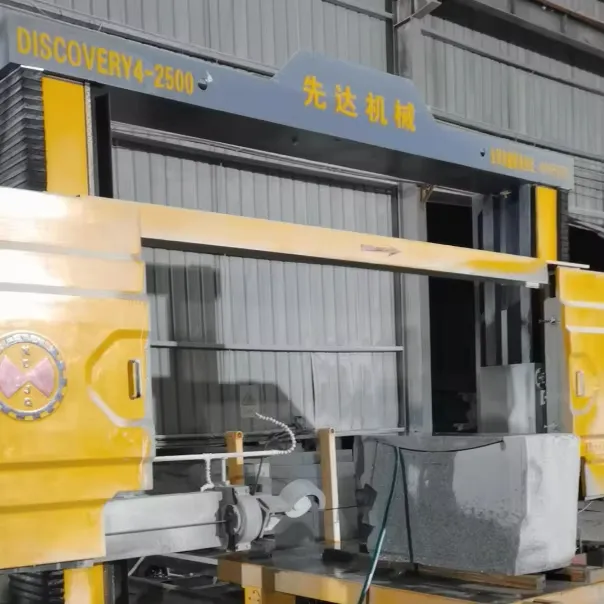

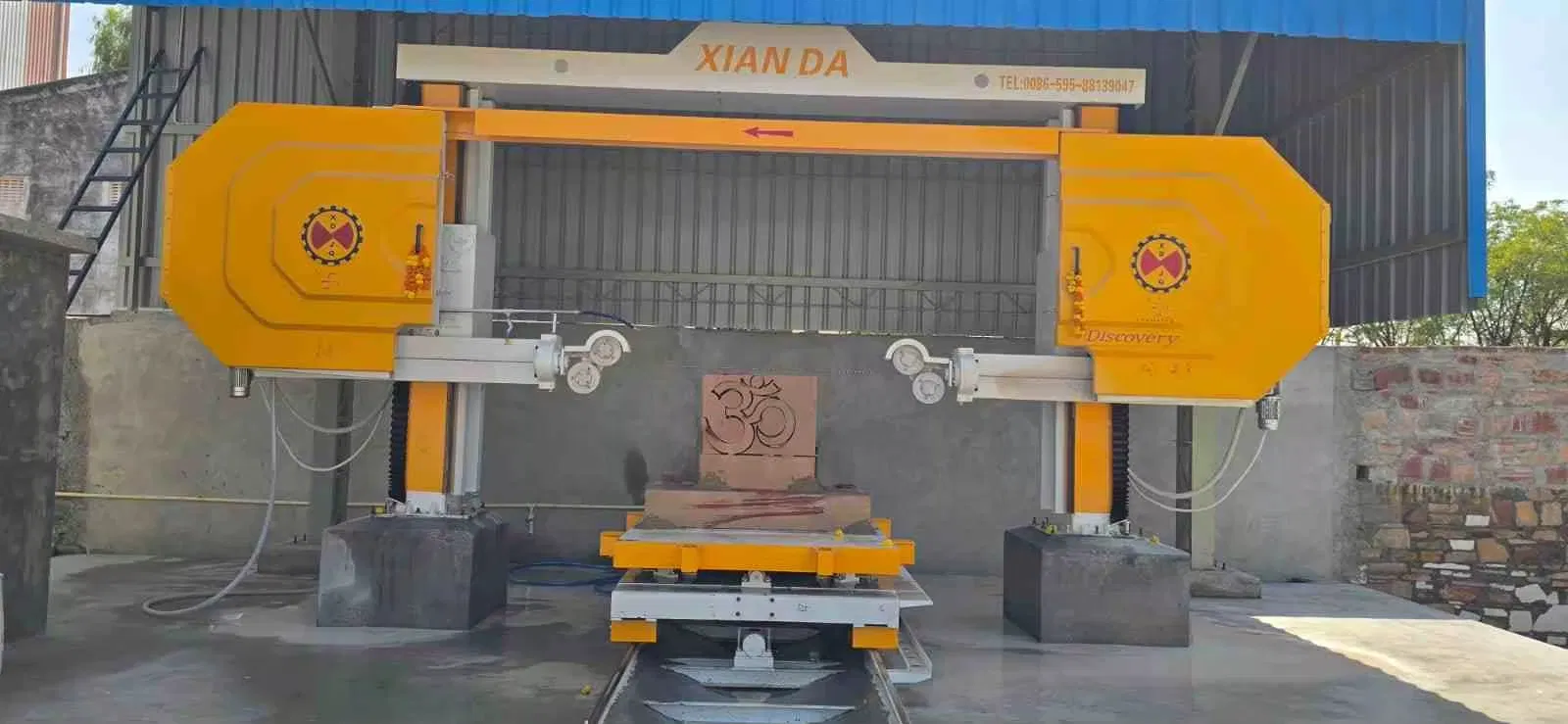

DISCOVERY 4 is our Ultimate version in CNC Diamond Wire Saw Machine. Lifting structure adopt 16 surface slideway, 28pcs rolling wheels structure. Trolley using double nut structure, the track using steel frame -type reinforcement structure; Cantiever gearbox use S-TYPE channel waterproof structure, Main motor have variable frequency speed control function , with more advantage during processing, like cutting more precsion, precision more durable, cutting more stable, more efficiency, etc. Meanwhile this machine adopts CNC control, four-spindle linkage, which can process the circular stone slab, column, numeral, letter , Chinese characters tombstone and other shapes for the stone . Pls contact Aimee directly.
Specification
|
Technical Parameter
|
Unit
|
DISCOVERY 4-2000
|
DISCOVERY 4-2500
|
DISCOVERY 4-3000
|
|

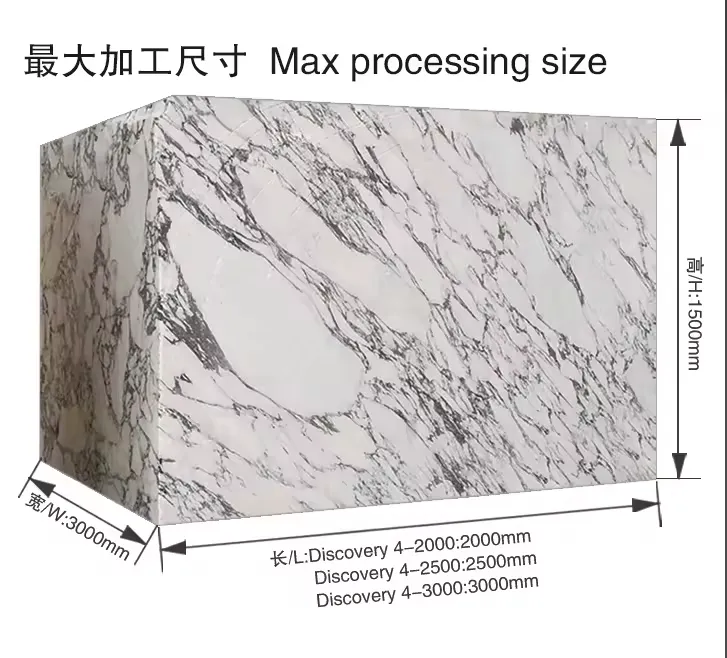

Max processing size
|
mm
|
2000 x 3000 x 1500
|
2500 x 3000 x 1500
|
3000 x 3000 x 1500
|
|
Trolley size
|
mm
|
1400 x 2500
|
1400 x 2500
|
1400 x 2500
|
|
Table bearing weight
|
T
|
20
|
20
|
20
|
|
Wire Speed
|
m/s
|
20 ~40
|
20 ~40
|
20 ~40
|
|
Main motor
|
kw
|
15(Permanent magnet motors)
|
15(Permanent magnet motors)
|
15(Permanent magnet motors)
|
|
Outline dimension
|
mm
|
6800 x 6300 x 3950
|
7800 x 6300 x 3950
|
8800 x 6300 x 3950
|
|
Gross Weight
|
kg
|
≈6500
|
≈6750
|
≈7000
|
|
Water consumption
|
m³/h
|
≈3
|
≈3
|
≈3
|

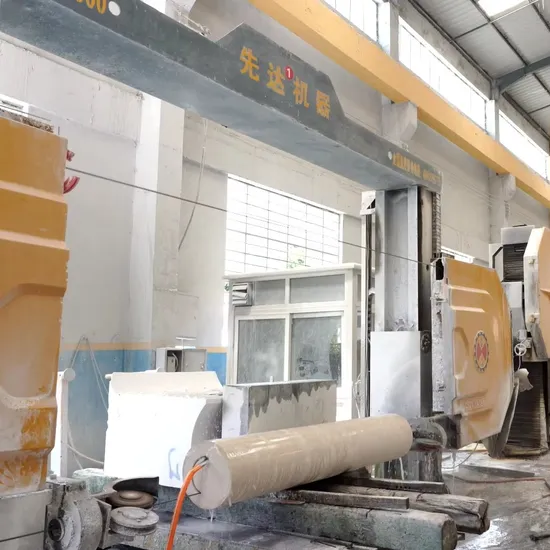

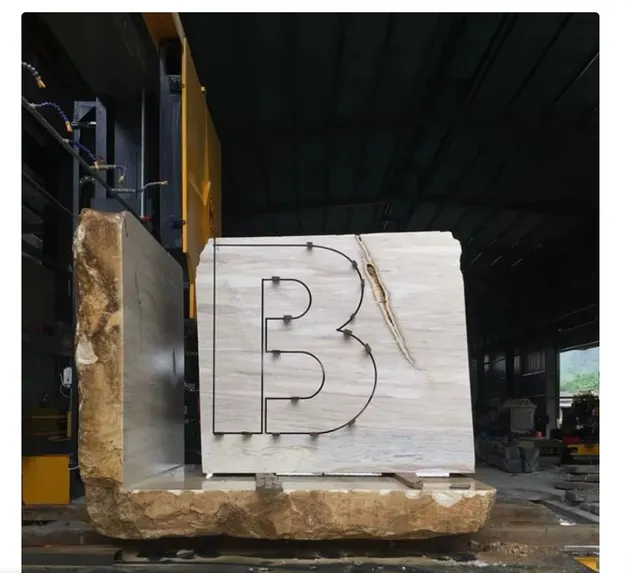

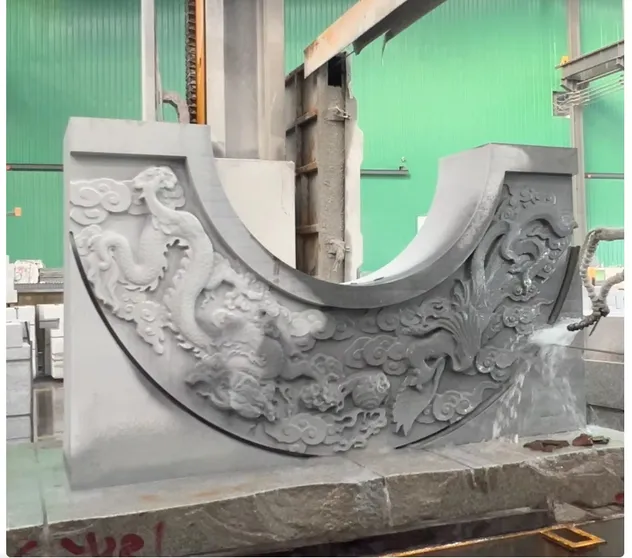

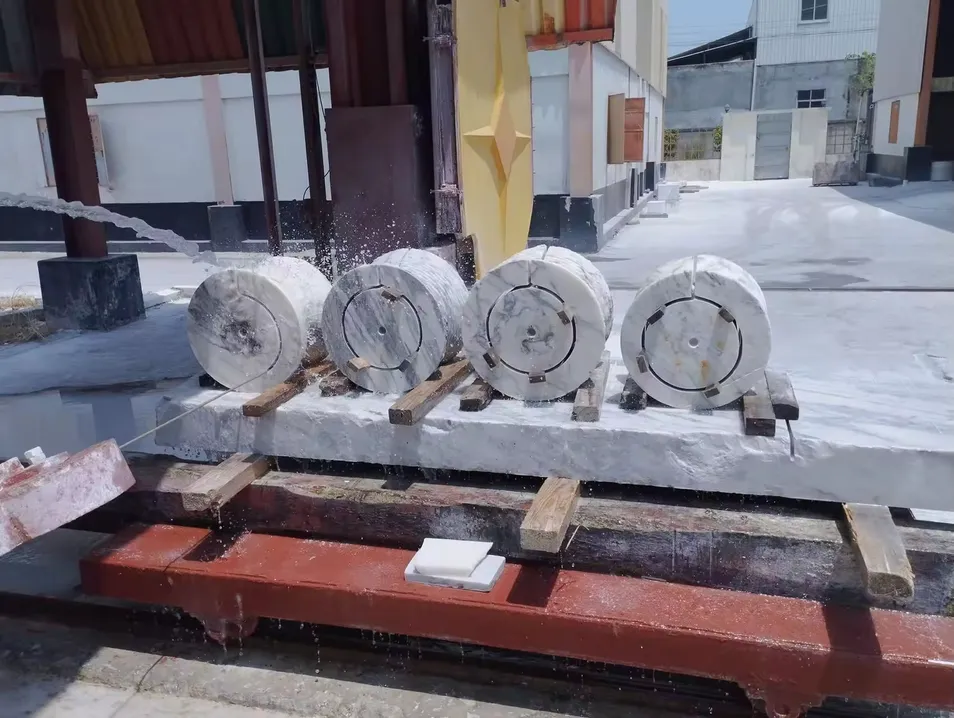

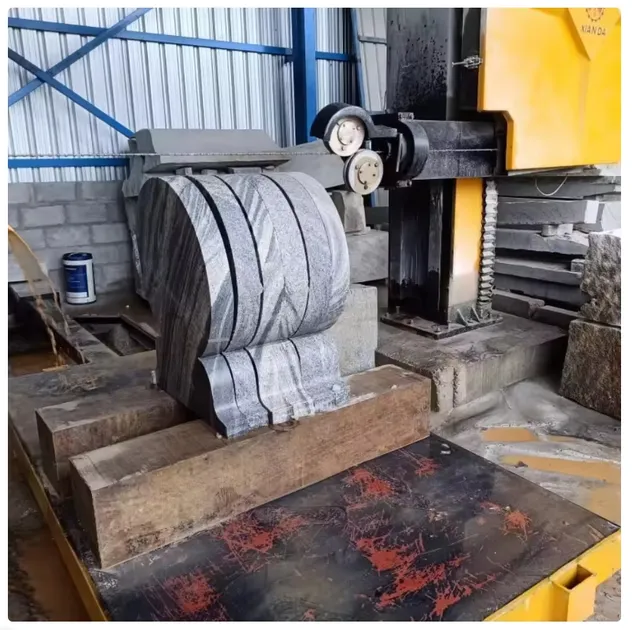

The machine can process :
circular stone slab, column, numeral, letter , Chinese characters tombstone and other shapes for the stone .
